Артикул: 003L3582
В наличии

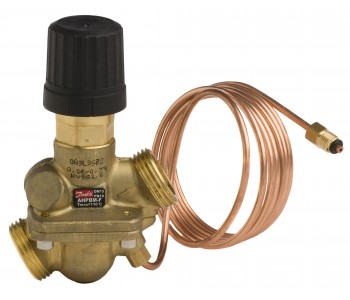

Danfoss 003L3582 - AHPBM-F, PN 16, DN 15, Flow rate : 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Flow
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 003L3582 - AHPBM-F, PN 16, DN 15, Flow rate [m³/h]: 0.20 - 1.00, External Thread, G 3/4 A, Mounting version: Flow
AHPBM-F PN16 15/1,6/0,12 ext.thr. flow
Информация о продукте
| Gross weight | 0.47 kg |
| Net weight | 0.47 kg |
| EAN | 5702421558126 |
| Gross weight | 0.47 kg |
| Net weight | 0.47 kg |
| EAN | 5702421558126 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection size | G 3/4 A |
| Connection types | External Thread |
| Description | AHPBM-F PN16 15/1,6/0,12 ext.thr. flow |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Differential pressure setting [bar] [Max] | 0.12 bar |
| Differential pressure setting [bar] [Min] | 0.12 bar |
| dPb virtual | 0.1 |
| Flow control | No |
| Flow limitation | Yes |
| Flow rate [m³/h] | 1 m³/h |
| Flow rate [m³/h] [Max] | 1 m³/h |
| Flow rate [m³/h] [Min] | 0.2 m³/h |
| Function | Diff. press. and flow limiter with int. control valve |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| Kvs values [m³/h] | 1.6 m³/h |
| Leakage rate [% Kvs] | 0.02 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting type | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 5.5 mm |
| Type | AHPBM-F |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Dezincing free brass CuZn36Pb2As |
| Valve size | DN 15 |
| Actuator diaphragm material | EPDM |
| Application | District Heating |
| Cavitation factor | 0.6 |
| Connection size | G 3/4 A |
| Connection types | External Thread |
| Description | AHPBM-F PN16 15/1,6/0,12 ext.thr. flow |
| Diameter [mm] | 15 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Differential pressure setting [bar] [Max] | 0.12 bar |
| Differential pressure setting [bar] [Min] | 0.12 bar |
| dPb virtual | 0.1 |
| Flow control | No |
| Flow limitation | Yes |
| Flow rate [m³/h] | 1 m³/h |
| Flow rate [m³/h] [Max] | 1 m³/h |
| Flow rate [m³/h] [Min] | 0.2 m³/h |
| Function | Diff. press. and flow limiter with int. control valve |
| Function VSP - P | Yes |
| Function VSP - Q | Yes |
| Function VSP - T | No |
| Kvs values [m³/h] | 1.6 m³/h |
| Leakage rate [% Kvs] | 0.02 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure class | PN 16 |
| Pressure controller | Differential pressure controller |
| Pressure nominal [bar] | 16 bar |
| Product group | Pressure flow controllers |
| Sealing CV material | EPDM |
| Sealing DP material | EPDM |
| Setting type | Fixed |
| Stem position | Normally open |
| Stroke [mm] | 5.5 mm |
| Type | AHPBM-F |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone CV material | Dezincing free brass CuZn36Pb2As |
| Valve cone DP material | Dezincing free brass CuZn36Pb2As |
| Valve seat material | Dezincing free brass CuZn36Pb2As |
| Valve size | DN 15 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 003L3582
Основные характеристики
- Actuator diaphragm material
- EPDM
- Application
- District Heating
- Cavitation factor
- 0.6
- Connection size
- G 3/4 A
- Connection types
- External Thread
- Description
- AHPBM-F PN16 15/1,6/0,12 ext.thr. flow
- Diameter [mm]
- 15 mm
- Differential pressure range [bar] [Max]
- 4 bar
- Differential pressure setting [bar] [Max]
- 0.12 bar
- Differential pressure setting [bar] [Min]
- 0.12 bar
- dPb virtual
- 0.1
- EAN
- 5702421558126
- Flow control
- No
- Flow limitation
- Yes
- Flow rate [m³/h]
- 1 m³/h
- Flow rate [m³/h] [Max]
- 1 m³/h
- Flow rate [m³/h] [Min]
- 0.2 m³/h
- Function
- Diff. press. and flow limiter with int. control valve
- Function VSP - P
- Yes
- Function VSP - Q
- Yes
- Function VSP - T
- No
- Gross weight
- 0.47 kg
- Kvs values [m³/h]
- 1.6 m³/h
- Leakage rate [% Kvs]
- 0.02
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 120 °C
- Media temperature [°C] [Min]
- 2 °C
- Medium alternative
- Glycolic water up to 30%
- Mounting version
- Flow
- Net weight
- 0.47 kg
- Number of ports
- 2
- Permissible media
- District heating/cooling circulation water
- PN alternative VSP
- 10
- Pressure class
- PN 16
- Pressure controller
- Differential pressure controller
- Pressure nominal [bar]
- 16 bar
- Product group
- Pressure flow controllers
- Sealing CV material
- EPDM
- Sealing DP material
- EPDM
- Setting type
- Fixed
- Stem position
- Normally open
- Stroke [mm]
- 5.5 mm
- TYPE
- AHPBM-F
- Valve body material
- DZR brass CuZn36Pb2AS (CW 602N)
- Valve cone CV material
- Dezincing free brass CuZn36Pb2As
- Valve cone DP material
- Dezincing free brass CuZn36Pb2As
- Valve seat material
- Dezincing free brass CuZn36Pb2As
- Valve size
- DN 15
