Артикул: 004U8586
В наличии
Danfoss 004U8586 - Akva Vita II, 16 bar, 95 °C, DHW controller name: PM2
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

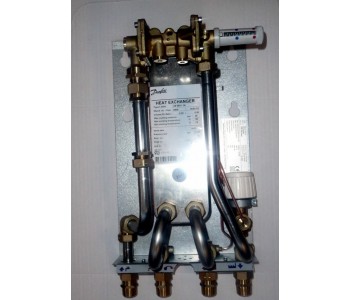

Danfoss 004U8586 - Akva Vita II, 16 bar, 95 °C, DHW controller name: PM2
Akva Vita II, XB06H-1-26, PM2+P with cover
Информация о продукте
| Gross weight | 9.5 kg |
| Net weight | 9 kg |
| Gross weight | 9.5 kg |
| Net weight | 9 kg |
| 0-series required | No |
| Application type | DHW |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Optional |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 160 mm |
| Depth without cover [mm] | 160 mm |
| Description | Akva Vita II, XB06H-1-26, PM2+P with cover |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow |
| DHW controller name | PM2 |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| DHW pump brand | Wilo |
| Fitting piece | Energy meter return |
| Heat exchanger test pressure [bar] | 38 bar |
| Height with cover [mm] | 420 mm |
| Height without cover [mm] | 420 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Without |
| Material Description (Short Te | Akva Vita II, 26, PM",Insert 3 |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 345 mm |
| Package height [mm] | 210 mm |
| Package width [mm] | 480 mm |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| Redan APP Diagram | No |
| Remarks | Flatstation |
| Supply temperature construction [˚C] | 95 °C |
| Type | Akva Vita II |
| Width with cover [mm] | 255 mm |
| Width without cover [mm] | 250 mm |
| 0-series required | No |
| Application type | DHW |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Optional |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 160 mm |
| Depth without cover [mm] | 160 mm |
| Description | Akva Vita II, XB06H-1-26, PM2+P with cover |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow |
| DHW controller name | PM2 |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| DHW pump brand | Wilo |
| Fitting piece | Energy meter return |
| Heat exchanger test pressure [bar] | 38 bar |
| Height with cover [mm] | 420 mm |
| Height without cover [mm] | 420 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Without |
| Material Description (Short Te | Akva Vita II, 26, PM",Insert 3 |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 345 mm |
| Package height [mm] | 210 mm |
| Package width [mm] | 480 mm |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| Redan APP Diagram | No |
| Remarks | Flatstation |
| Supply temperature construction [˚C] | 95 °C |
| Type | Akva Vita II |
| Width with cover [mm] | 255 mm |
| Width without cover [mm] | 250 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 004U8586
Основные характеристики
- 0-series required
- No
- Application type
- DHW
- Connection direction
- Bottom
- Cover material
- White-lacquered steel sheet
- Cover option
- Optional
- DCW static pressure [bar] [Min]
- 2 bar
- Depth with cover [mm]
- 160 mm
- Depth without cover [mm]
- 160 mm
- Description
- Akva Vita II, XB06H-1-26, PM2+P with cover
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW circulation
- Optional
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow
- DHW controller name
- PM2
- DHW HEX type
- XB37
- DHW pipe size
- Ø18
- DHW pump brand
- Wilo
- Fitting piece
- Energy meter return
- Gross weight
- 9.5 kg
- Heat exchanger test pressure [bar]
- 38 bar
- Height with cover [mm]
- 420 mm
- Height without cover [mm]
- 420 mm
- HEX heating alloy
- AISI 316
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Without
- Material Description (Short Te
- Akva Vita II, 26, PM",Insert 3
- Net weight
- 9 kg
- Number of households [Max]
- 2
- Number of households [Min]
- 1
- Package depth [mm]
- 345 mm
- Package height [mm]
- 210 mm
- Package width [mm]
- 480 mm
- Pressure nominal primary [bar]
- 16 bar
- Pressure nominal secondary [bar]
- 10 bar
- Product group
- Small Stations
- Redan APP Diagram
- No
- Remarks
- Flatstation
- Supply temperature construction [˚C]
- 95 °C
- TYPE
- Akva Vita II
- Width with cover [mm]
- 255 mm
- Width without cover [mm]
- 250 mm
