Артикул: 004U8600

В наличии

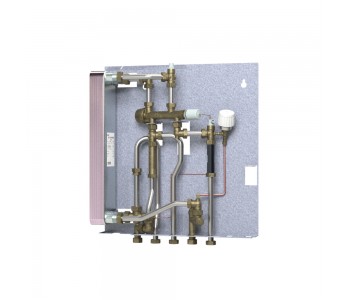

Danfoss 004U8600 - Akva Lux II TDP-⁠F, 10 bar, 95 °C, DHW controller name: PTC2

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 004U8600 - Akva Lux II TDP-F, 10 bar, 95 °C, DHW controller name: PTC2

Akva Lux II TDP-F type 1 w/DCW outlet

Информация о продукте

Gross weight 22 kg
Net weight 20 kg



0-series required No
Application type DHW, HE direct
Connection direction Bottom
Cover material White-lacquered steel
Cover option Extra
DCW static pressure [bar] [Min] 2 bar
Depth without cover [mm] 150 mm
Description Akva Lux II TDP-F type 1 w/DCW outlet
DH connection size 3/4"
DH connection type G int. Thread
DH pipe size Ø18
DHW capacity [kW] [Max] 45 kW
DHW capacity [kW] [Min] 37 kW
DHW circulation Optional
DHW connection size 3/4"
DHW connection type G int. Thread
DHW Control type Flow/Thermost.
DHW controller name PTC2
DHW pipe size Ø18
Differential pressure controller Integrated
Fitting piece Energy meter return and cold water meter
HE connection size 3/4"
HE connection type G int. Thread
HE pipe size Ø18
Heat exchanger test pressure [bar] 38 bar
Heating capacity [kW] [Max] 15 kW
Heating capacity [kW] [Min] 10 kW
Heating control type Delta p controller
Heating controller name AVPL
Height without cover [mm] 575 mm
HEX heating alloy AISI 316
HEX heating brazing material Copper
HEX heating type Brazed
Insulation material Without
Material Description (Short Te Akva Lux II TDP-F TYP1 CW3/4"x
Number of households [Max] 2
Number of households [Min] 1
Operating temp max. [°C] 90 °C
Package depth [mm] 600 mm
Package height [mm] 215 mm
Package width [mm] 800 mm
Packing format Single pack
Pressure nominal primary [bar] 10 bar
Pressure nominal secondary [bar] 10 bar
Pri side opr press max[bar] 10 bar
Product group Small Stations
Quantity per packing format 1 pc
Redan APP Diagram No
Remarks Direct heating w. diff. Pres. Reg. And DHW
Sec side opr press max[bar] 10 bar
Supply temperature construction [˚C] 95 °C
Total volume max. [l] 5 L
Type Akva Lux II TDP-F
Width without cover [mm] 460 mm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 004U8600

Основные характеристики

0-series required
No
Application type
DHW, HE direct
Connection direction
Bottom
Cover material
White-lacquered steel
Cover option
Extra
DCW static pressure [bar] [Min]
2 bar
Depth without cover [mm]
150 mm
Description
Akva Lux II TDP-F type 1 w/DCW outlet
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW] [Max]
45 kW
DHW capacity [kW] [Min]
37 kW
DHW circulation
Optional
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/Thermost.
DHW controller name
PTC2
DHW pipe size
Ø18
Differential pressure controller
Integrated
Fitting piece
Energy meter return and cold water meter
Gross weight
22 kg
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heat exchanger test pressure [bar]
38 bar
Heating capacity [kW] [Max]
15 kW
Heating capacity [kW] [Min]
10 kW
Heating control type
Delta p controller
Heating controller name
AVPL
Height without cover [mm]
575 mm
HEX heating alloy
AISI 316
HEX heating brazing material
Copper
HEX heating type
Brazed
Insulation material
Without
Material Description (Short Te
Akva Lux II TDP-F TYP1 CW3/4"x
Net weight
20 kg
Number of households [Max]
2
Number of households [Min]
1
Operating temp max. [°C]
90 °C
Package depth [mm]
600 mm
Package height [mm]
215 mm
Package width [mm]
800 mm
Packing format
Single pack
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Pri side opr press max[bar]
10 bar
Product group
Small Stations
Quantity per packing format
1 pc
Redan APP Diagram
No
Remarks
Direct heating w. diff. Pres. Reg. And DHW
Sec side opr press max[bar]
10 bar
Supply temperature construction [˚C]
95 °C
Total volume max. [l]
5 L
TYPE
Akva Lux II TDP-F
Width without cover [mm]
460 mm
