Артикул: 004X1622

В наличии

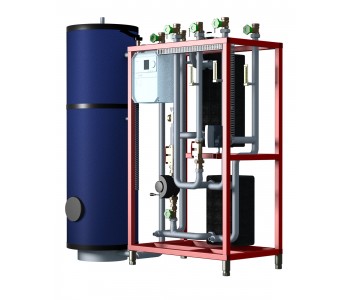

Danfoss 004X1622 - DHW system, TC-⁠DL, Antilegionella, 420.0 kW, DHW controller name: ECL310, 1000 L

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 004X1622 - DHW system, TC-DL, Antilegionella, 420.0 kW, DHW controller name: ECL310, 1000 L

TC-DL 1000 ECL XB

Информация о продукте

Gross weight 230 kg
Net weight 230 kg



Allowed temperature [˚C] [Min] 2 °C
Application type Antilegionella
Approvals CE/DVGW
Capacity [kW] 420 kW
Category name Antilegionella systems
Circulation pipe size DN50
Circulation connection size Rp2"
Circulation connection type internal thread
Connection direction primary and secondary Vertical
Current [A] [Max] 4 A
DCW static pressure [bar] [Min] 1 bar
Delta P primary without heat meter [bar] [Min] 0.29 bar
Delta P secondary [bar] [Max] 0.65 bar
Depth without cover [mm] 1000 mm
Description TC-DL 1000 ECL XB
Design standing
DH connection size 48,3/60,3mm
DH connection type welded
DH pipe size DN40/DN50
DHW circulation Yes
DHW connection size Rp2 1/2"
DHW connection type internal thread
DHW Control type Electronic
DHW controller name ECL310
DHW pipe size DN65
DHW pump brand Grundfos
DHW pump type MAGNA3
Differential pressure primary [bar] [Max] 12 bar
Flow circulation [m3/h] [Max] 9 m³/h
Flow primary [m3/h] [Max] 12.96 m³/h
Flow secondary [m3/h] [Max] 15 m³/h
HE connection size 48,3/60,3 mm
HE connection type welded
HE pipe size DN40/DN50
Height without cover [mm] 2525 mm
HEX DHW alloy 1.4404
HEX DHW brazing material Copper
HEX DHW type Brazed
Hot water tank volume [l] 1000 L
Insulation material EPS with laminated fleece
Manufacturer's name Danfoss
P circulation [bar] [Max] -0.27 bar
Package 2 depth [mm] 1000 mm
Package 2 height [mm] 2400 mm
Package 2 width [mm] 1300 mm
Package depth [mm] 1000 mm
Package height [mm] 1100 mm
Package width [mm] 2425 mm
PED category § 4.3
Pressure nominal primary [bar] 25 bar
Pressure nominal secondary [bar] 10 bar
Pressure primary [bar] [Max] 25 bar
Pressure secondary [bar] [Max] 10 bar
Product group DHW system
Supply temperature construction [˚C] 90 °C
Supply voltage [V] AC 230 V
Tank material 1.4571
Type TC-DL
Width without cover [mm] 2570 mm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 004X1622

Основные характеристики

Allowed temperature [˚C] [Min]
2 °C
Application type
Antilegionella
Approvals
CE/DVGW
Capacity [kW]
420 kW
Category name
Antilegionella systems
Circulation pipe size
DN50
Circulation connection size
Rp2"
Circulation connection type
internal thread
Connection direction primary and secondary
Vertical
Current [A] [Max]
4 A
DCW static pressure [bar] [Min]
1 bar
Delta P primary without heat meter [bar] [Min]
0.29 bar
Delta P secondary [bar] [Max]
0.65 bar
Depth without cover [mm]
1000 mm
Description
TC-DL 1000 ECL XB
Design
standing
DH connection size
48,3/60,3mm
DH connection type
welded
DH pipe size
DN40/DN50
DHW circulation
Yes
DHW connection size
Rp2 1/2"
DHW connection type
internal thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW pipe size
DN65
DHW pump brand
Grundfos
DHW pump type
MAGNA3
Differential pressure primary [bar] [Max]
12 bar
Flow circulation [m3/h] [Max]
9 m³/h
Flow primary [m3/h] [Max]
12.96 m³/h
Flow secondary [m3/h] [Max]
15 m³/h
Gross weight
230 kg
HE connection size
48,3/60,3 mm
HE connection type
welded
HE pipe size
DN40/DN50
Height without cover [mm]
2525 mm
HEX DHW alloy
1.4404
HEX DHW brazing material
Copper
HEX DHW type
Brazed
Hot water tank volume [l]
1000 L
Insulation material
EPS with laminated fleece
Manufacturer's name
Danfoss
Net weight
230 kg
P circulation [bar] [Max]
-0.27 bar
Package 2 depth [mm]
1000 mm
Package 2 height [mm]
2400 mm
Package 2 width [mm]
1300 mm
Package depth [mm]
1000 mm
Package height [mm]
1100 mm
Package width [mm]
2425 mm
PED category
§ 4.3
Pressure nominal primary [bar]
25 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
25 bar
Pressure secondary [bar] [Max]
10 bar
Product group
DHW system
Supply temperature construction [˚C]
90 °C
Supply voltage [V] AC
230 V
Tank material
1.4571
TYPE
TC-DL
Width without cover [mm]
2570 mm
