Артикул: 014U0252
В наличии
Danfoss 014U0252 - Energy meters, SonoSafe 10, 20 mm, qp : 2.5, Heating, Battery 1 A-cell, Radio OMS WB 868,95 with 2 pulse inputs
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

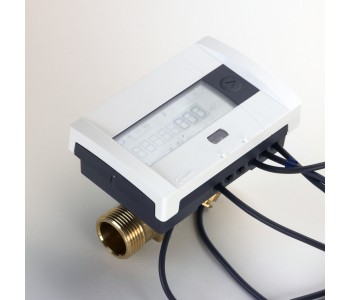

Danfoss 014U0252 - Energy meters, SonoSafe 10, 20 mm, qp [m³/h]: 2.5, Heating, Battery 1 A-cell, Radio OMS WB 868,95 with 2 pulse inputs
Energy meter for residential applications
Информация о продукте
| Gross weight | 1.11 kg |
| Net weight | 0.8 kg |
| EAN | 5702425144929 |
| Gross weight | 1.11 kg |
| Net weight | 0.8 kg |
| EAN | 5702425144929 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 10 yr |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 1 |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 20 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh (without digit after comma) |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| Installation | Return |
| Interface module slot 1 | Radio OMS WB 868,95 with 2 pulse inputs |
| IP protection class | IP 54 |
| Length [mm] | 130 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| Protection class calculator | IP54 |
| qc [m³/h] | 0.005 m³/h |
| qi [m³/h] | 0.025 m³/h |
| qp [m³/h] | 2.5 m³/h |
| qs [m³/h] | 5 m³/h |
| qss [m³/h] | 5.5 m³/h |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E1 / M2 |
| Ambient humidity [% RH] [Max] | 95 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Heating |
| Approval authority | Force Certification |
| Approved meteorological range [°C] [Max] | 95 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 10 yr |
| Cable length between calculator and flow sensor [m] | 0.5 m |
| Commissioning tool | SonoApp |
| Connection size | G 1 |
| Connection types | Thread |
| Description | Energy meter for residential applications |
| Diameter [mm] | 20 mm |
| Difference temperature limits (Accounting) [K] [Max] | 90 K |
| Difference temperature limits (Accounting) [K] [Min] | 3 K |
| Display type | LCD |
| Energy unit | kWh (without digit after comma) |
| Flow measuring principle | Ultrasonic |
| Housing color | RAL 9010 White |
| Installation | Return |
| Interface module slot 1 | Radio OMS WB 868,95 with 2 pulse inputs |
| IP protection class | IP 54 |
| Length [mm] | 130 mm |
| Log storage duration [Month] | 24 mo |
| Log storage interval [Month] | 1 mo |
| Material in contact with medium | Brass sensor |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 95 °C |
| Media temperature [°C] [Min] | 5 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| Protection class calculator | IP54 |
| qc [m³/h] | 0.005 m³/h |
| qi [m³/h] | 0.025 m³/h |
| qp [m³/h] | 2.5 m³/h |
| qs [m³/h] | 5 m³/h |
| qss [m³/h] | 5.5 m³/h |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | Battery 1 A-cell |
| Temperature sensors cable length [m] | 1.5 m |
| Temperature sensors type | Pt 1000 |
| Type | SonoSafe 10 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 014U0252
Основные характеристики
- Accuracy standard
- Class 2 to EN1434
- Ambient class
- E1 / M2
- Ambient humidity [% RH] [Max]
- 95 % RH
- Ambient temperature [°C] [Max]
- 55 °C
- Ambient temperature [°C] [Min]
- 5 °C
- Application
- Heating
- Approval authority
- Force Certification
- Approved meteorological range [°C] [Max]
- 95 °C
- Approved meteorological range [°C] [Min]
- 5 °C
- Battery lifetime [Years]
- 10 yr
- Cable length between calculator and flow sensor [m]
- 0.5 m
- Commissioning tool
- SonoApp
- Connection size
- G 1
- Connection types
- Thread
- Description
- Energy meter for residential applications
- Diameter [mm]
- 20 mm
- Difference temperature limits (Accounting) [K] [Max]
- 90 K
- Difference temperature limits (Accounting) [K] [Min]
- 3 K
- Display type
- LCD
- EAN
- 5702425144929
- Energy unit
- kWh (without digit after comma)
- Flow measuring principle
- Ultrasonic
- Gross weight
- 1.11 kg
- Housing color
- RAL 9010 White
- Installation
- Return
- Interface module slot 1
- Radio OMS WB 868,95 with 2 pulse inputs
- IP protection class
- IP 54
- Length [mm]
- 130 mm
- Log storage duration [Month]
- 24 mo
- Log storage interval [Month]
- 1 mo
- Material in contact with medium
- Brass sensor
- Media
- Heating system according to VDI 2035
- Media temperature [°C] [Max]
- 95 °C
- Media temperature [°C] [Min]
- 5 °C
- Net weight
- 0.8 kg
- Pressure nominal [bar]
- 16 bar
- Product group
- Energy meters
- Protection class calculator
- IP54
- qc [m³/h]
- 0.005 m³/h
- qi [m³/h]
- 0.025 m³/h
- qp [m³/h]
- 2.5 m³/h
- qs [m³/h]
- 5 m³/h
- qss [m³/h]
- 5.5 m³/h
- Storage temperature [°C] [Max]
- 60 °C
- Storage temperature [°C] [Min]
- -25 °C
- Supply voltage type
- Battery 1 A-cell
- Supply voltage [V] DC
- 3.6 V
- Temperature sensors cable length [m]
- 1.5 m
- Temperature sensors type
- Pt 1000
- TYPE
- SonoSafe 10
