Артикул: 017B0138
В наличии

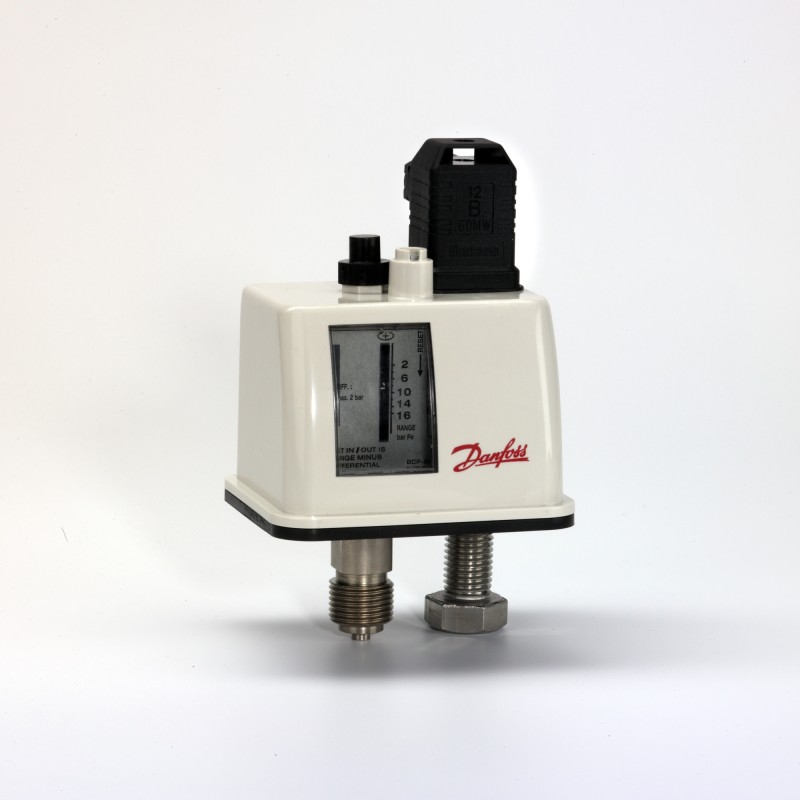

Danfoss 017B0138 - Pressure switch, BCP3H
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 017B0138 - Pressure switch, BCP3H
Regulation range [bar] Pe: 0.00 - 6.00, Differential [bar]: 0.40, Reset function: Manual Max, Pressure connection type: G, Pressure connection size: 1/2, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 16.0
Информация о продукте
| Gross weight | 0.62 kg |
| Net weight | 0.58 kg |
| EAN | 5702428433570 |
| Gross weight | 0.62 kg |
| Net weight | 0.58 kg |
| EAN | 5702428433570 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE, EAC, EMCD, LVD, PED, RoHS, TYSK, TÜV, LLC CDC EURO-TYSK |
| Approval file name | TÜV .SDWFS/SDBFS .15-335 |
| Burst pressure [bar] | 24 bar |
| Contact function | SPDT gold |
| Contact load type | A |
| Contact rating | AC15=1 A, 250 V, AC1=6 A, 250 V, DC13=10 W, 250 V |
| Differential [bar] | 0.4 bar |
| Differential [psi] | 5.8 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP65 |
| Equipment | |
| Further information | Stainless steel bellows, Stainless steel connector |
| Max. test pressure [bar] Pe | 17.6 bar |
| Max. test pressure [psig] | 255 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 230 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | BCP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 9 pc |
| Regulation range [bar] Pe [Max] | 6 bar |
| Regulation range [bar] Pe [Min] | 0 bar |
| Regulation range [psig] Pe [Max] | 87.02 psig |
| Regulation range [psig] Pe [Min] | 0 psig |
| Reset function | Manual Max |
| Serviceable | No |
| Type | BCP3H |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -20 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -4 °F |
| Approval | CE, EAC, EMCD, LVD, PED, RoHS, TYSK, TÜV, LLC CDC EURO-TYSK |
| Approval file name | TÜV .SDWFS/SDBFS .15-335 |
| Burst pressure [bar] | 24 bar |
| Contact function | SPDT gold |
| Contact load type | A |
| Contact rating | AC15=1 A, 250 V, AC1=6 A, 250 V, DC13=10 W, 250 V |
| Differential [bar] | 0.4 bar |
| Differential [psi] | 5.8 psi |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803 |
| Electrical spec. standard | EN 60947-4/-5 |
| Enclosure rating IP | IP65 |
| Equipment | |
| Further information | Stainless steel bellows, Stainless steel connector |
| Max. test pressure [bar] Pe | 17.6 bar |
| Max. test pressure [psig] | 255 psig |
| Max. Working Pressure [bar] | 16 bar |
| Max. Working Pressure [psig] | 230 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/2 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | BCP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 9 pc |
| Regulation range [bar] Pe [Max] | 6 bar |
| Regulation range [bar] Pe [Min] | 0 bar |
| Regulation range [psig] Pe [Max] | 87.02 psig |
| Regulation range [psig] Pe [Min] | 0 psig |
| Reset function | Manual Max |
| Serviceable | No |
| Type | BCP3H |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 017B0138
Основные характеристики
- Ambient temperature range [°C] [Max]
- 70 °C
- Ambient temperature range [°C] [Min]
- -20 °C
- Ambient temperature range [°F] [Max]
- 158 °F
- Ambient temperature range [°F] [Min]
- -4 °F
- Approval
- CEEACEMCDLVDPEDRoHSTYSKTÜVLLC CDC EURO-TYSK
- Approval file name
- TÜV .SDWFS/SDBFS .15-335
- Burst pressure [bar]
- 24 bar
- Contact function
- SPDT gold
- Contact load type
- A
- Contact rating
- AC15=1 A, 250 VAC1=6 A, 250 VDC13=10 W, 250 V
- Differential [bar]
- 0.4 bar
- Differential [psi]
- 5.8 psi
- EAN
- 5702428433570
- Electrical conn. Male/Female
- Female
- Electrical connection
- DIN-plug
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803
- Electrical spec. standard
- EN 60947-4/-5
- Enclosure rating IP
- IP65
- Further information
- Stainless steel bellowsStainless steel connector
- Gross weight
- 0.62 kg
- Max. test pressure [bar] Pe
- 17.6 bar
- Max. test pressure [psig]
- 255 psig
- Max. Working Pressure [bar]
- 16 bar
- Max. Working Pressure [psig]
- 230 psig
- Net weight
- 0.58 kg
- Packing format
- Multi pack
- Pressure connection size
- 1/2
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product family name
- BCP
- Product group
- Switches and thermostats
- Product name
- Pressure switch
- Quantity per packing format
- 9 pc
- Regulation range [bar] Pe [Max]
- 6 bar
- Regulation range [bar] Pe [Min]
- 0 bar
- Regulation range [psig] Pe [Max]
- 87.02 psig
- Regulation range [psig] Pe [Min]
- 0 psig
- Reset function
- Manual Max
- Serviceable
- No
- TYPE
- BCP3H
