Артикул: 021H2310
В наличии

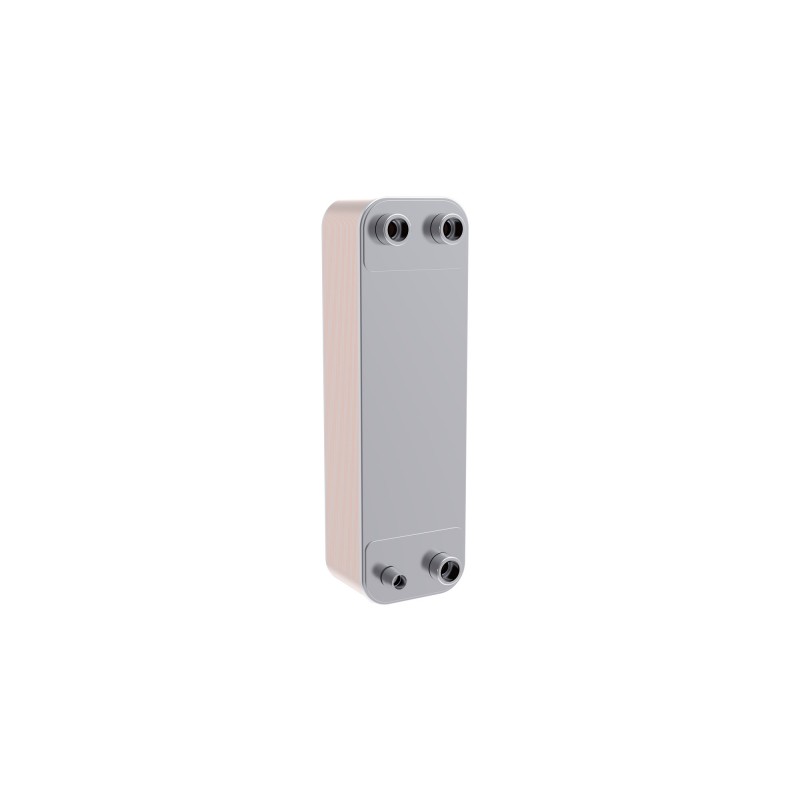

Danfoss 021H2310 - Brazed plate heat exchanger, BPHE B3-95
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 021H2310 - Brazed plate heat exchanger, BPHE B3-95
Brazing material: Copper brazing, Max. Working Pressure [bar]: 30.0, Number of plates: 60
Информация о продукте
| Gross weight | 30.39 kg |
| Net weight | 30.24 kg |
| EAN | 5702424271527 |
| Gross weight | 30.39 kg |
| Net weight | 30.24 kg |
| EAN | 5702424271527 |
| Approval | EAC, LLC CDC EURO-TYSK, PED, UL |
| Brazing material | Copper brazing |
| Code No. | 021H2310 |
| Design temperature range [°C] [Max] | 200 °C |
| Design temperature range [°C] [Min] | -196 °C |
| Design temperature range [°F] [Max] | 320 °F |
| Design temperature range [°F] [Min] | -390 °F |
| Equipment | Stud |
| Function note | With distributor |
| H1 conn. size | R1 1/2 |
| H1 conn. type | R External thread connection |
| H2 conn. size | R2 |
| H2 conn. type | R External thread connection |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model no. | 095 |
| Number of plates | 60 |
| Packing format | Single pack |
| Plate material | AISI 316L |
| Plate pattern | H |
| Product group | Heat exchangers |
| Product name | Brazed plate heat exchanger |
| Q1 conn. size range | R1/2 |
| Q1 conn. type | R Internal thread connection |
| Q2 conn. size range | R1/2 |
| Q2 conn. type | R Internal thread connection |
| Q3 conn. size range | 1 1/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 1 5/8 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| Refrigerants | R1336mzz(Z), R134a, R22, R290, R407C, R407H, R450A, R455A, R513A, R513B, R515A, R600a, R1233zd(E), R1234ze(E) |
| Type | BPHE B3-95 |
| Type designation | B3-095-HQ |
| Approval | EAC, LLC CDC EURO-TYSK, PED, UL |
| Brazing material | Copper brazing |
| Code No. | 021H2310 |
| Design temperature range [°C] [Max] | 200 °C |
| Design temperature range [°C] [Min] | -196 °C |
| Design temperature range [°F] [Max] | 320 °F |
| Design temperature range [°F] [Min] | -390 °F |
| Equipment | Stud |
| Function note | With distributor |
| H1 conn. size | R1 1/2 |
| H1 conn. type | R External thread connection |
| H2 conn. size | R2 |
| H2 conn. type | R External thread connection |
| Max working pressure [psi] | 435 psi |
| Max. Working Pressure [bar] | 30 bar |
| Model no. | 095 |
| Number of plates | 60 |
| Packing format | Single pack |
| Plate material | AISI 316L |
| Plate pattern | H |
| Product group | Heat exchangers |
| Product name | Brazed plate heat exchanger |
| Q1 conn. size range | R1/2 |
| Q1 conn. type | R Internal thread connection |
| Q2 conn. size range | R1/2 |
| Q2 conn. type | R Internal thread connection |
| Q3 conn. size range | 1 1/8 in |
| Q3 conn. type | Solder connection |
| Q4 conn. size range | 1 5/8 in |
| Q4 conn. type | Solder connection |
| Quantity per packing format | 1 pc |
| Refrigerants | R1336mzz(Z), R134a, R22, R290, R407C, R407H, R450A, R455A, R513A, R513B, R515A, R600a, R1233zd(E), R1234ze(E) |
| Type | BPHE B3-95 |
| Type designation | B3-095-HQ |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 021H2310
Основные характеристики
- Approval
- EACLLC CDC EURO-TYSKPEDUL
- Brazing material
- Copper brazing
- Code No.
- 021H2310
- Design temperature range [°C] [Max]
- 200 °C
- Design temperature range [°C] [Min]
- -196 °C
- Design temperature range [°F] [Max]
- 320 °F
- Design temperature range [°F] [Min]
- -390 °F
- EAN
- 5702424271527
- Equipment
- Stud
- Function note
- With distributor
- Gross weight
- 30.39 kg
- H1 conn. size
- R1 1/2
- H1 conn. type
- R External thread connection
- H2 conn. size
- R2
- H2 conn. type
- R External thread connection
- Max working pressure [psi]
- 435 psi
- Max. Working Pressure [bar]
- 30 bar
- Model no.
- 095
- Net weight
- 30.24 kg
- Number of plates
- 60
- Packing format
- Single pack
- Plate material
- AISI 316L
- Plate pattern
- H
- Product group
- Heat exchangers
- Product name
- Brazed plate heat exchanger
- Q1 conn. size range
- R1/2
- Q1 conn. type
- R Internal thread connection
- Q2 conn. size range
- R1/2
- Q2 conn. type
- R Internal thread connection
- Q3 conn. size range
- 1 1/8 in
- Q3 conn. type
- Solder connection
- Q4 conn. size range
- 1 5/8 in
- Q4 conn. type
- Solder connection
- Quantity per packing format
- 1 pc
- Refrigerants
- R1336mzz(Z)R134aR22R290R407CR407HR450AR455AR513AR513BR515AR600aR1233zd(E)R1234ze(E)
- TYPE
- BPHE B3-95
- Type designation
- B3-095-HQ
