Артикул: 021H4577

В наличии

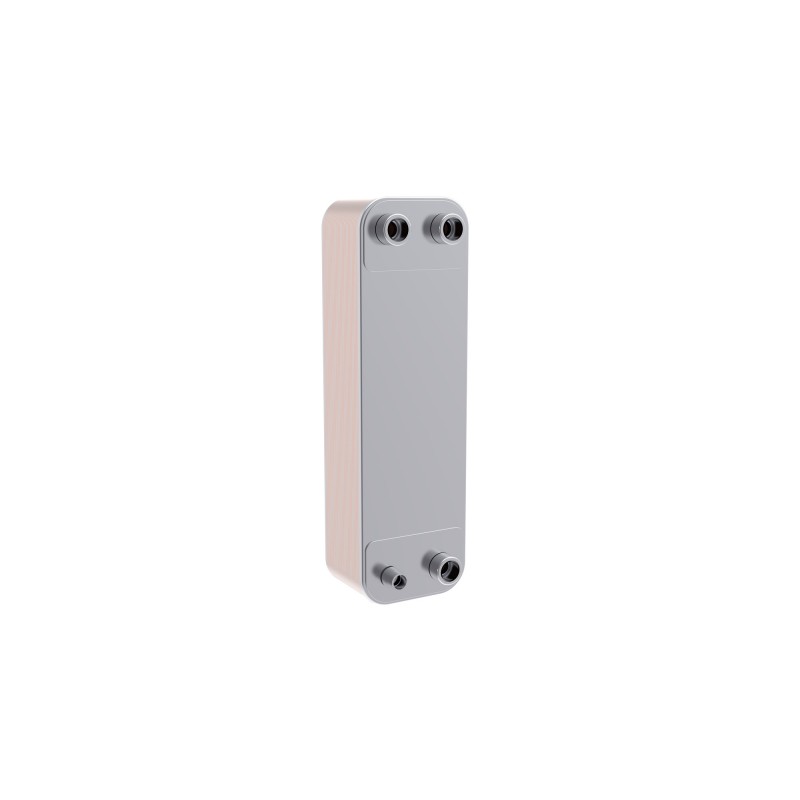

Danfoss 021H4577 - Brazed plate heat exchanger, BPHE B3-⁠95B

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 021H4577 - Brazed plate heat exchanger, BPHE B3-95B

Brazing material: Copper brazing, Max. Working Pressure [bar]: 30.0, Number of plates: 69

Информация о продукте

Gross weight 34.08 kg
Net weight 33.93 kg
EAN 5702428622776



Approval EAC, LLC CDC EURO-TYSK, PED, UL
Brazing material Copper brazing
Code No. 021H4577
Design temperature range [°C] [Max] 200 °C
Design temperature range [°C] [Min] -196 °C
Design temperature range [°F] [Max] 320 °F
Design temperature range [°F] [Min] -390 °F
Equipment Stud
H1 conn. type Internal thread connection
H2 conn. type Internal thread connection
H3 conn. type Internal thread connection
H4 conn. type Internal thread connection
Max working pressure [psi] 435 psi
Max. Working Pressure [bar] 30 bar
Model no. 095B
Number of plates 69
Packing format Industrial pack
Plate material AISI 316L
Plate pattern L
Product group Heat exchangers
Product name Brazed plate heat exchanger
Q1 conn. size range G1 1/2
Q1 conn. type G Internal thread connection
Q2 conn. size range G1 1/2
Q2 conn. type G Internal thread connection
Q3 conn. size range G1 1/2
Q3 conn. type G Internal thread connection
Q4 conn. size range G1 1/2
Q4 conn. type G Internal thread connection
Quantity per packing format 6 pc
Refrigerants R1336mzz(Z), R134a, R22, R290, R407C, R407H, R450A, R455A, R513A, R513B, R515A, R600a, R1233zd(E), R1234ze(E)
Type BPHE B3-95B
Type designation B3-095B-L

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 021H4577

Основные характеристики

Approval
EACLLC CDC EURO-TYSKPEDUL
Brazing material
Copper brazing
Code No.
021H4577
Design temperature range [°C] [Max]
200 °C
Design temperature range [°C] [Min]
-196 °C
Design temperature range [°F] [Max]
320 °F
Design temperature range [°F] [Min]
-390 °F
EAN
5702428622776
Equipment
Stud
Gross weight
34.08 kg
H1 conn. type
Internal thread connection
H2 conn. type
Internal thread connection
H3 conn. type
Internal thread connection
H4 conn. type
Internal thread connection
Max working pressure [psi]
435 psi
Max. Working Pressure [bar]
30 bar
Model no.
095B
Net weight
33.93 kg
Number of plates
69
Packing format
Industrial pack
Plate material
AISI 316L
Plate pattern
L
Product group
Heat exchangers
Product name
Brazed plate heat exchanger
Q1 conn. size range
G1 1/2
Q1 conn. type
G Internal thread connection
Q2 conn. size range
G1 1/2
Q2 conn. type
G Internal thread connection
Q3 conn. size range
G1 1/2
Q3 conn. type
G Internal thread connection
Q4 conn. size range
G1 1/2
Q4 conn. type
G Internal thread connection
Quantity per packing format
6 pc
Refrigerants
R1336mzz(Z)R134aR22R290R407CR407HR450AR455AR513AR513BR515AR600aR1233zd(E)R1234ze(E)
TYPE
BPHE B3-95B
Type designation
B3-095B-L
