Артикул: 021H9389
В наличии

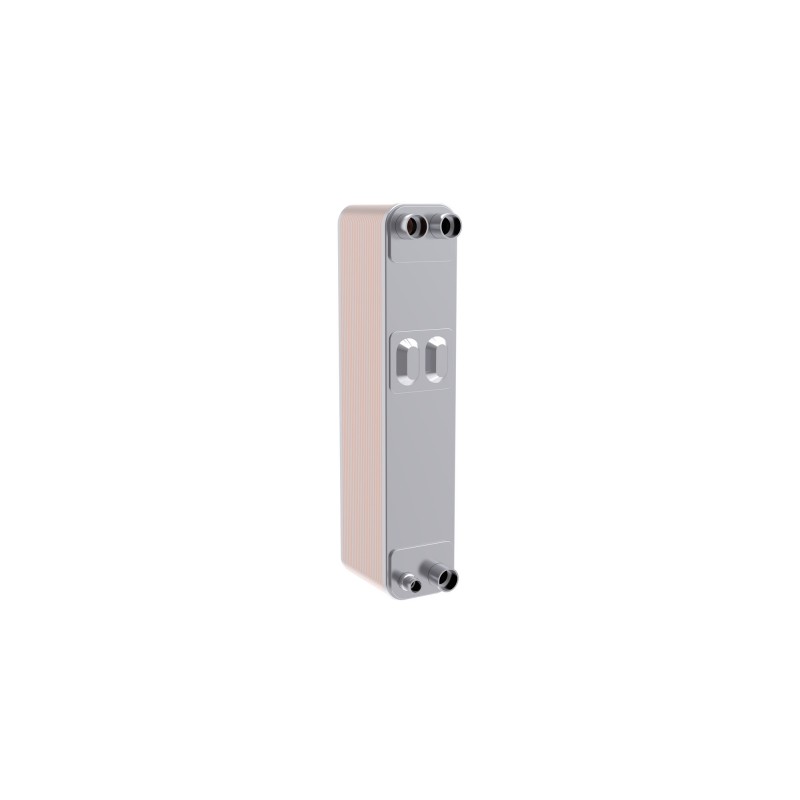

Danfoss 021H9389 - Micro Plate heat exchanger, MPHE C55L-EU
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 021H9389 - Micro Plate heat exchanger, MPHE C55L-EU
Application: Chiller, Function: Evaporator, Max working pressure [psi]: 653, Type designation: C55-EU, Number of plates: 66, Brazing material: Copper brazing
Информация о продукте
| Gross weight | 11.95 kg |
| Net weight | 11.8 kg |
| EAN | 5702424251635 |
| Gross weight | 11.95 kg |
| Net weight | 11.8 kg |
| EAN | 5702424251635 |
| Application | Chiller |
| Approval | AS, EAC, KRAIA, PED, UA, UL |
| Brazing material | Copper brazing |
| Code No. | 021H9389 |
| Design temperature range [°C] [Max] | 200 °C |
| Design temperature range [°C] [Min] | -196 °C |
| Design temperature range [°F] [Max] | 320 °F |
| Design temperature range [°F] [Min] | -390 °F |
| Equipment | |
| Function | Evaporator |
| Function note | With distributor |
| H3 conn. size | 5/8 in |
| H3 conn. type | Solder connection |
| H4 conn. size | 3/4 in |
| H4 conn. type | Solder connection |
| Max working pressure [psi] | 653 psi |
| Max. Working Pressure [bar] | 45 bar |
| Model no. | 55 |
| Number of plates | 66 |
| Packing format | Single pack |
| Plate pattern | EU |
| Product group | Heat exchangers |
| Product name | Micro Plate heat exchanger |
| Q1 conn. size range | G1 |
| Q1 conn. type | G Internal thread connection |
| Q2 conn. size range | G1 |
| Q2 conn. type | G Internal thread connection |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a, R22, R290A, R32, R404A, R407C, R407F, R410A, R444B, R452A, R513A, R600a, R600, R1234ze(E) |
| Type | MPHE C55L-EU |
| Type designation | C55-EU |
| Application | Chiller |
| Approval | AS, EAC, KRAIA, PED, UA, UL |
| Brazing material | Copper brazing |
| Code No. | 021H9389 |
| Design temperature range [°C] [Max] | 200 °C |
| Design temperature range [°C] [Min] | -196 °C |
| Design temperature range [°F] [Max] | 320 °F |
| Design temperature range [°F] [Min] | -390 °F |
| Equipment | |
| Function | Evaporator |
| Function note | With distributor |
| H3 conn. size | 5/8 in |
| H3 conn. type | Solder connection |
| H4 conn. size | 3/4 in |
| H4 conn. type | Solder connection |
| Max working pressure [psi] | 653 psi |
| Max. Working Pressure [bar] | 45 bar |
| Model no. | 55 |
| Number of plates | 66 |
| Packing format | Single pack |
| Plate pattern | EU |
| Product group | Heat exchangers |
| Product name | Micro Plate heat exchanger |
| Q1 conn. size range | G1 |
| Q1 conn. type | G Internal thread connection |
| Q2 conn. size range | G1 |
| Q2 conn. type | G Internal thread connection |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a, R22, R290A, R32, R404A, R407C, R407F, R410A, R444B, R452A, R513A, R600a, R600, R1234ze(E) |
| Type | MPHE C55L-EU |
| Type designation | C55-EU |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 021H9389
Основные характеристики
- Application
- Chiller
- Approval
- ASEACKRAIAPEDUAUL
- Brazing material
- Copper brazing
- Code No.
- 021H9389
- Design temperature range [°C] [Max]
- 200 °C
- Design temperature range [°C] [Min]
- -196 °C
- Design temperature range [°F] [Max]
- 320 °F
- Design temperature range [°F] [Min]
- -390 °F
- EAN
- 5702424251635
- Function
- Evaporator
- Function note
- With distributor
- Gross weight
- 11.95 kg
- H3 conn. size
- 5/8 in
- H3 conn. type
- Solder connection
- H4 conn. size
- 3/4 in
- H4 conn. type
- Solder connection
- Max working pressure [psi]
- 653 psi
- Max. Working Pressure [bar]
- 45 bar
- Model no.
- 55
- Net weight
- 11.8 kg
- Number of plates
- 66
- Packing format
- Single pack
- Plate pattern
- EU
- Product group
- Heat exchangers
- Product name
- Micro Plate heat exchanger
- Q1 conn. size range
- G1
- Q1 conn. type
- G Internal thread connection
- Q2 conn. size range
- G1
- Q2 conn. type
- G Internal thread connection
- Quantity per packing format
- 1 pc
- Refrigerants
- R134aR22R290AR32R404AR407CR407FR410AR444BR452AR513AR600aR600R1234ze(E)
- TYPE
- MPHE C55L-EU
- Type designation
- C55-EU
