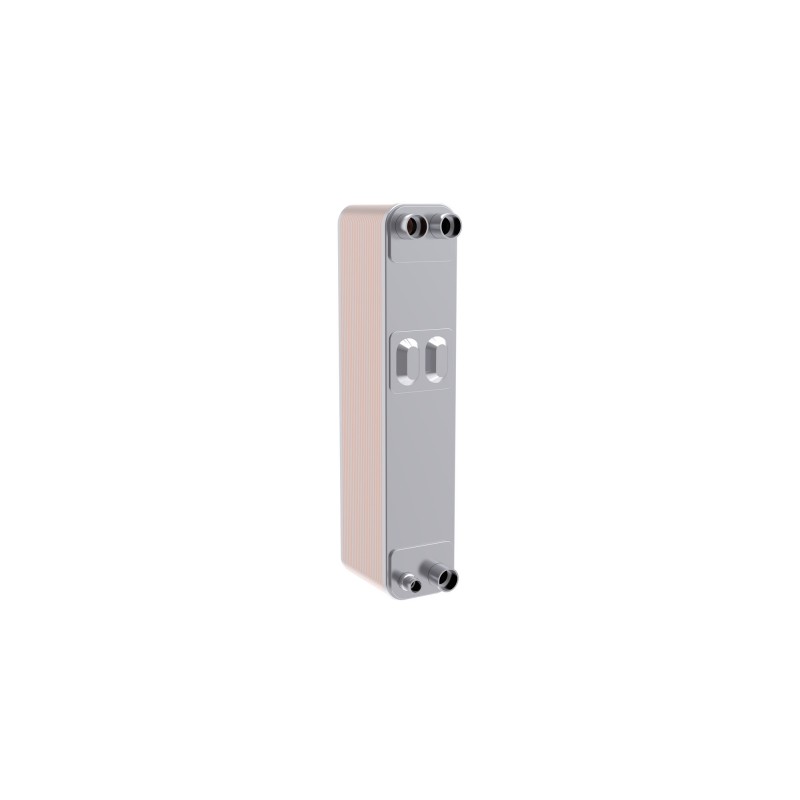

Danfoss 021H9448 - Micro Plate heat exchanger, MPHE C55L-EU

Application: Chiller, Function: Evaporator, Max working pressure [psi]: 653, Type designation: C55L-EU, Number of plates: 68, Brazing material: Copper brazing

Информация о продукте

Gross weight 12.25 kg
Net weight 12.1 kg
EAN 5702424237288



Application Chiller
Approval AS, EAC, KRAIA, PED, UA, UL
Brazing material Copper brazing
Design temperature range [°C] [Max] 200 °C
Design temperature range [°C] [Min] -196 °C
Design temperature range [°F] [Max] 320 °F
Design temperature range [°F] [Min] -390 °F
Equipment
Function Evaporator
Function note With distributor
H1 conn. size L1M
H1 conn. type R External thread connection
H2 conn. size L1M
H2 conn. type R External thread connection
Max working pressure [psi] 653 psi
Max. Working Pressure [bar] 45 bar
Model no. 55
Number of plates 68
Packing format Single pack
Plate material AISI 316L
Plate pattern EU
Product group Heat exchangers
Product name Micro Plate heat exchanger
Q2 conn. size range N1/4B
Q2 conn. type Rc Internal thread connection
Q3 conn. size range H5/8E
Q3 conn. type Solder connection
Q4 conn. size range H3/8A
Q4 conn. type Solder connection
Quantity per packing format 1 pc
Refrigerants R134a, R22, R404A, R407C, R410A
Type MPHE C55L-EU
Type designation C55L-EU

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 021H9448

Основные характеристики

Application
Chiller
Approval
ASEACKRAIAPEDUAUL
Brazing material
Copper brazing
Design temperature range [°C] [Max]
200 °C
Design temperature range [°C] [Min]
-196 °C
Design temperature range [°F] [Max]
320 °F
Design temperature range [°F] [Min]
-390 °F
EAN
5702424237288
Function
Evaporator
Function note
With distributor
Gross weight
12.25 kg
H1 conn. size
L1M
H1 conn. type
R External thread connection
H2 conn. size
L1M
H2 conn. type
R External thread connection
Max working pressure [psi]
653 psi
Max. Working Pressure [bar]
45 bar
Model no.
55
Net weight
12.1 kg
Number of plates
68
Packing format
Single pack
Plate material
AISI 316L
Plate pattern
EU
Product group
Heat exchangers
Product name
Micro Plate heat exchanger
Q2 conn. size range
N1/4B
Q2 conn. type
Rc Internal thread connection
Q3 conn. size range
H5/8E
Q3 conn. type
Solder connection
Q4 conn. size range
H3/8A
Q4 conn. type
Solder connection
Quantity per packing format
1 pc
Refrigerants
R134aR22R404AR407CR410A
TYPE
MPHE C55L-EU
Type designation
C55L-EU
