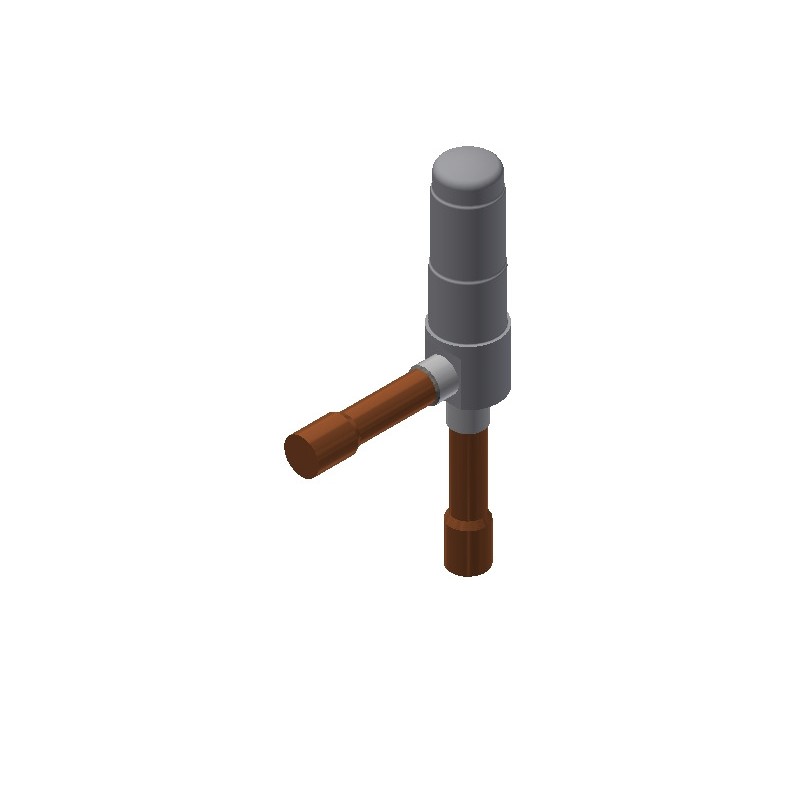

Danfoss 034G6211 - Electric expansion valve, ETS 5M20
Информация о продукте
| Gross weight | 0.05 kg |
| Net weight | 0.04 kg |
| EAN | 5702428680523 |
| Gross weight | 0.05 kg |
| Net weight | 0.04 kg |
| EAN | 5702428680523 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Category | Art. 4, par. 3 |
| Compatible Danfoss controllers | EIM 336, EKE 1A, EKE 1B, EKE 1C |
| Connection material | Copper |
| Connection type | Solder, ODM |
| Design config. Style | L |
| Flow direction | Bi-flow |
| Identical product | 034G6210 |
| Inlet size [in] | 5/16 in |
| Lubricants compatibility | POE |
| Manual operation option | AST-G service driver, Manual coil |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MaxOPD [bar] | 35 bar |
| MaxOPD [psig] | 508 psig |
| MaxOPD reverse [bar] | 35 bar |
| MaxOPD reverse [psi] | 543.0345 psi |
| Min. Leakage [cm³/min] @ 1 Mpa | 150 cm³/min |
| Motor type | Permanent magnet stepper motor |
| Orifice size [mm] | 2 mm |
| Outlet size [in] | 5/16 in |
| Packing format | Multi pack |
| Parts Program name | ETS 5M |
| Product accessories | Electric valve accessories |
| Product family name | ETS 5 Mini EEV |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Quantity per packing format | 20 pc |
| Rated cap. conditions [SI] | Subcooling=0 ºC, Superheat=0 ºC, tcond=38 ºC, tevap=5 ºC |
| Rated cap. R404A/R507A [kW] | 9.8 kW |
| Rated cap. R404A/R507A [TR] | 2.79 tons |
| Rated capacity R1234yf [kW] | 7.65 kW |
| Rated capacity R1234yf [TR] | 2.18 tons |
| Rated capacity R1234ze(E) [kW] | 7.81 kW |
| Rated capacity R1234ze(E) [TR] | 2.22 tons |
| Rated capacity R134a [kW] | 10.45 kW |
| Rated capacity R134a [TR] | 2.97 tons |
| Rated capacity R22 [kW] | 13.9 kW |
| Rated capacity R22 [TR] | 3.95 tons |
| Rated capacity R290 [kW] | 14.44 kW |
| Rated capacity R290 [TR] | 4.11 tons |
| Rated capacity R32 [kW] | 24.36 kW |
| Rated capacity R32 [TR] | 6.93 tons |
| Rated capacity R407C [kW] | 14.52 kW |
| Rated capacity R407C [TR] | 4.13 tons |
| Rated capacity R407H [kW] | 16.22 kW |
| Rated capacity R407H [TR] | 4.61 tons |
| Rated capacity R410A [kW] | 16.5 kW |
| Rated capacity R410A [TR] | 4.69 tons |
| Rated capacity R448A [kW] | 13.91 kW |
| Rated capacity R448A [TR] | 3.96 tons |
| Rated capacity R449A [kW] | 13.6 kW |
| Rated capacity R449A [TR] | 3.87 tons |
| Rated capacity R449B [kW] | 13.82 kW |
| Rated capacity R449B [TR] | 3.93 tons |
| Rated capacity R452A [kW] | 10.48 kW |
| Rated capacity R452A [TR] | 2.98 tons |
| Rated capacity R452B [kW] | 18.91 kW |
| Rated capacity R452B [TR] | 5.38 tons |
| Rated capacity R454A [kW] | 14.1 kW |
| Rated capacity R454A [TR] | 4.01 tons |
| Rated capacity R454B [kW] | 19.14 kW |
| Rated capacity R454B [TR] | 5.44 tons |
| Rated capacity R454C [kW] | 12.1 kW |
| Rated capacity R454C [TR] | 3.44 tons |
| Rated capacity R455A [kW] | 13.35 kW |
| Rated capacity R455A [TR] | 3.8 tons |
| Rated capacity R513A [kW] | 8.86 kW |
| Rated capacity R513A [TR] | 2.52 tons |
| Rated capacity R515B [kW] | 7.57 kW |
| Rated capacity R515B [TR] | 2.15 tons |
| Refrigerant oil compatibility | POE |
| Refrigerant temperature [ºC] [Max] | 70 °C |
| Refrigerant temperature [ºC] [Min] | -30 °C |
| Refrigerant temperature [ºF] [Max] | 158 °F |
| Refrigerant temperature [ºF] [Min] | -22 °F |
| Refrigerants | R32, R410A, R1234yf, R1234ze(E), R134a, R22, R290, R404A/R507A, R407C, R407H, R448A, R449A, R449B, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B |
| Relative humidity (RH) [%] [Max] | 95 % |
| Relative humidity (RH) [%] [Min] | 0 % |
| Serviceable | No |
| Step mode | 1-2 excitation (half step), 2-2 excitation (full step) |
| Storage temperature range [°C] [Max] | 70 °C |
| Storage temperature range [°C] [Min] | -30 °C |
| Storage temperature range [°F] [Max] | 158 °F |
| Storage temperature range [°F] [Min] | -22 °F |
| Total steps | 480 (half steps) |
| Type | ETS 5M20 |
| Valve open pulses@normal flow | 55 ± 16 steps |
| Valve open pulses@reverse flow | 15 ± 15 steps |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Category | Art. 4, par. 3 |
| Compatible Danfoss controllers | EIM 336, EKE 1A, EKE 1B, EKE 1C |
| Connection material | Copper |
| Connection type | Solder, ODM |
| Design config. Style | L |
| Flow direction | Bi-flow |
| Identical product | 034G6210 |
| Inlet size [in] | 5/16 in |
| Lubricants compatibility | POE |
| Manual operation option | AST-G service driver, Manual coil |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MaxOPD [bar] | 35 bar |
| MaxOPD [psig] | 508 psig |
| MaxOPD reverse [bar] | 35 bar |
| MaxOPD reverse [psi] | 543.0345 psi |
| Min. Leakage [cm³/min] @ 1 Mpa | 150 cm³/min |
| Motor type | Permanent magnet stepper motor |
| Orifice size [mm] | 2 mm |
| Outlet size [in] | 5/16 in |
| Packing format | Multi pack |
| Parts Program name | ETS 5M |
| Product accessories | Electric valve accessories |
| Product family name | ETS 5 Mini EEV |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Quantity per packing format | 20 pc |
| Rated cap. conditions [SI] | Subcooling=0 ºC, Superheat=0 ºC, tcond=38 ºC, tevap=5 ºC |
| Rated cap. R404A/R507A [kW] | 9.8 kW |
| Rated cap. R404A/R507A [TR] | 2.79 tons |
| Rated capacity R1234yf [kW] | 7.65 kW |
| Rated capacity R1234yf [TR] | 2.18 tons |
| Rated capacity R1234ze(E) [kW] | 7.81 kW |
| Rated capacity R1234ze(E) [TR] | 2.22 tons |
| Rated capacity R134a [kW] | 10.45 kW |
| Rated capacity R134a [TR] | 2.97 tons |
| Rated capacity R22 [kW] | 13.9 kW |
| Rated capacity R22 [TR] | 3.95 tons |
| Rated capacity R290 [kW] | 14.44 kW |
| Rated capacity R290 [TR] | 4.11 tons |
| Rated capacity R32 [kW] | 24.36 kW |
| Rated capacity R32 [TR] | 6.93 tons |
| Rated capacity R407C [kW] | 14.52 kW |
| Rated capacity R407C [TR] | 4.13 tons |
| Rated capacity R407H [kW] | 16.22 kW |
| Rated capacity R407H [TR] | 4.61 tons |
| Rated capacity R410A [kW] | 16.5 kW |
| Rated capacity R410A [TR] | 4.69 tons |
| Rated capacity R448A [kW] | 13.91 kW |
| Rated capacity R448A [TR] | 3.96 tons |
| Rated capacity R449A [kW] | 13.6 kW |
| Rated capacity R449A [TR] | 3.87 tons |
| Rated capacity R449B [kW] | 13.82 kW |
| Rated capacity R449B [TR] | 3.93 tons |
| Rated capacity R452A [kW] | 10.48 kW |
| Rated capacity R452A [TR] | 2.98 tons |
| Rated capacity R452B [kW] | 18.91 kW |
| Rated capacity R452B [TR] | 5.38 tons |
| Rated capacity R454A [kW] | 14.1 kW |
| Rated capacity R454A [TR] | 4.01 tons |
| Rated capacity R454B [kW] | 19.14 kW |
| Rated capacity R454B [TR] | 5.44 tons |
| Rated capacity R454C [kW] | 12.1 kW |
| Rated capacity R454C [TR] | 3.44 tons |
| Rated capacity R455A [kW] | 13.35 kW |
| Rated capacity R455A [TR] | 3.8 tons |
| Rated capacity R513A [kW] | 8.86 kW |
| Rated capacity R513A [TR] | 2.52 tons |
| Rated capacity R515B [kW] | 7.57 kW |
| Rated capacity R515B [TR] | 2.15 tons |
| Refrigerant oil compatibility | POE |
| Refrigerant temperature [ºC] [Max] | 70 °C |
| Refrigerant temperature [ºC] [Min] | -30 °C |
| Refrigerant temperature [ºF] [Max] | 158 °F |
| Refrigerant temperature [ºF] [Min] | -22 °F |
| Refrigerants | R32, R410A, R1234yf, R1234ze(E), R134a, R22, R290, R404A/R507A, R407C, R407H, R448A, R449A, R449B, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B |
| Relative humidity (RH) [%] [Max] | 95 % |
| Relative humidity (RH) [%] [Min] | 0 % |
| Serviceable | No |
| Step mode | 1-2 excitation (half step), 2-2 excitation (full step) |
| Storage temperature range [°C] [Max] | 70 °C |
| Storage temperature range [°C] [Min] | -30 °C |
| Storage temperature range [°F] [Max] | 158 °F |
| Storage temperature range [°F] [Min] | -22 °F |
| Total steps | 480 (half steps) |
| Type | ETS 5M20 |
| Valve open pulses@normal flow | 55 ± 16 steps |
| Valve open pulses@reverse flow | 15 ± 15 steps |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Основные характеристики
- Ambient temperature range [°C] [Max]
- 60 °C
- Ambient temperature range [°C] [Min]
- -10 °C
- Ambient temperature range [°F] [Max]
- 140 °F
- Ambient temperature range [°F] [Min]
- 14 °F
- Category
- Art. 4, par. 3
- Compatible Danfoss controllers
- EIM 336EKE 1AEKE 1BEKE 1C
- Connection material
- Copper
- Connection type
- Solder, ODM
- Design config. Style
- L
- EAN
- 5702428680523
- Flow direction
- Bi-flow
- Gross weight
- 0.05 kg
- Identical product
- 034G6210
- Inlet size [in]
- 5/16 in
- Lubricants compatibility
- POE
- Manual operation option
- AST-G service driverManual coil
- Max. Working Pressure [bar]
- 45.5 bar
- Max. Working Pressure [psig]
- 660 psig
- MaxOPD reverse [bar]
- 35 bar
- MaxOPD reverse [psi]
- 543.0345 psi
- MaxOPD [bar]
- 35 bar
- MaxOPD [psig]
- 508 psig
- Min. Leakage [cm³/min] @ 1 Mpa
- 150 cm³/min
- Motor type
- Permanent magnet stepper motor
- Net weight
- 0.04 kg
- Orifice size [mm]
- 2 mm
- Outlet size [in]
- 5/16 in
- Packing format
- Multi pack
- Parts Program name
- ETS 5M
- Product accessories
- Electric valve accessories
- Product family name
- ETS 5 Mini EEV
- Product group
- Expansion valves
- Product name
- Electric expansion valve
- Quantity per packing format
- 20 pc
- Rated cap. conditions [SI]
- Subcooling=0 ºCSuperheat=0 ºCtcond=38 ºCtevap=5 ºC
- Rated cap. R404A/R507A [kW]
- 9.8 kW
- Rated cap. R404A/R507A [TR]
- 2.79 tons
- Rated capacity R1234yf [kW]
- 7.65 kW
- Rated capacity R1234yf [TR]
- 2.18 tons
- Rated capacity R1234ze(E) [kW]
- 7.81 kW
- Rated capacity R1234ze(E) [TR]
- 2.22 tons
- Rated capacity R134a [kW]
- 10.45 kW
- Rated capacity R134a [TR]
- 2.97 tons
- Rated capacity R22 [kW]
- 13.9 kW
- Rated capacity R22 [TR]
- 3.95 tons
- Rated capacity R290 [kW]
- 14.44 kW
- Rated capacity R290 [TR]
- 4.11 tons
- Rated capacity R32 [kW]
- 24.36 kW
- Rated capacity R32 [TR]
- 6.93 tons
- Rated capacity R407C [kW]
- 14.52 kW
- Rated capacity R407C [TR]
- 4.13 tons
- Rated capacity R407H [kW]
- 16.22 kW
- Rated capacity R407H [TR]
- 4.61 tons
- Rated capacity R410A [kW]
- 16.5 kW
- Rated capacity R410A [TR]
- 4.69 tons
- Rated capacity R448A [kW]
- 13.91 kW
- Rated capacity R448A [TR]
- 3.96 tons
- Rated capacity R449A [kW]
- 13.6 kW
- Rated capacity R449A [TR]
- 3.87 tons
- Rated capacity R449B [kW]
- 13.82 kW
- Rated capacity R449B [TR]
- 3.93 tons
- Rated capacity R452A [kW]
- 10.48 kW
- Rated capacity R452A [TR]
- 2.98 tons
- Rated capacity R452B [kW]
- 18.91 kW
- Rated capacity R452B [TR]
- 5.38 tons
- Rated capacity R454A [kW]
- 14.1 kW
- Rated capacity R454A [TR]
- 4.01 tons
- Rated capacity R454B [kW]
- 19.14 kW
- Rated capacity R454B [TR]
- 5.44 tons
- Rated capacity R454C [kW]
- 12.1 kW
- Rated capacity R454C [TR]
- 3.44 tons
- Rated capacity R455A [kW]
- 13.35 kW
- Rated capacity R455A [TR]
- 3.8 tons
- Rated capacity R513A [kW]
- 8.86 kW
- Rated capacity R513A [TR]
- 2.52 tons
- Rated capacity R515B [kW]
- 7.57 kW
- Rated capacity R515B [TR]
- 2.15 tons
- Refrigerant oil compatibility
- POE
- Refrigerant temperature [ºC] [Max]
- 70 °C
- Refrigerant temperature [ºC] [Min]
- -30 °C
- Refrigerant temperature [ºF] [Max]
- 158 °F
- Refrigerant temperature [ºF] [Min]
- -22 °F
- Refrigerants
- R32R410AR1234yfR1234ze(E)R134aR22R290R404A/R507AR407CR407HR448AR449AR449BR452AR452BR454AR454BR454CR455AR463AR513AR515B
- Relative humidity (RH) [%] [Max]
- 95 %
- Relative humidity (RH) [%] [Min]
- 0 %
- Serviceable
- No
- Step mode
- 1-2 excitation (half step)2-2 excitation (full step)
- Storage temperature range [°C] [Max]
- 70 °C
- Storage temperature range [°C] [Min]
- -30 °C
- Storage temperature range [°F] [Max]
- 158 °F
- Storage temperature range [°F] [Min]
- -22 °F
- Total steps
- 480 (half steps)
- TYPE
- ETS 5M20
- Valve open pulses@normal flow
- 55 ± 16 steps
- Valve open pulses@reverse flow
- 15 ± 15 steps
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru
Вся поставляемая продукция Danfoss имеет официальную гарантию.
Сервис гарантии включает в себя:
- Приемку в сервисном центре для выполнения диагностики дефекта.
- Ремонт.
- Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.
Контакты гарантийного отдела:
Телефон: +7 495 266-67-99E-mail: sale@df-russia.ru
Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:
- Окажет профессиональную консультацию.
- Сообщит цену.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможное время доставки.
E-mail: sale@df-russia.ru
Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
Нет отзывов об этом товаре.
