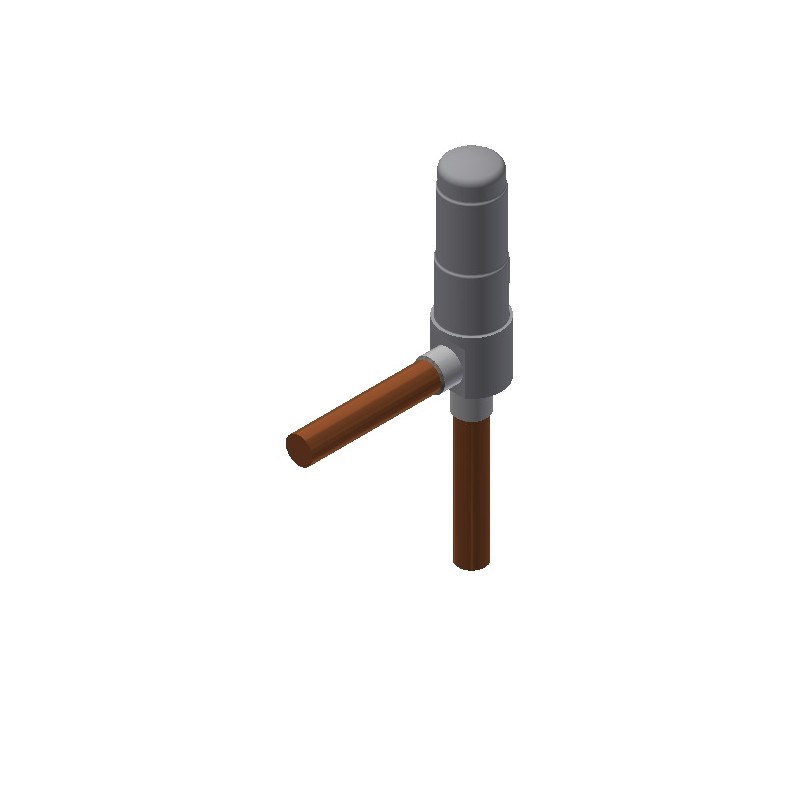

Danfoss 034G6212 - Electric expansion valve, ETS 5M24

Затрудняетесь с выбором?

Оставьте ваш телефон, и наш специалист перезвонит вам

Артикул: 034G6212

Danfoss 034G6212 - Electric expansion valve, ETS 5M24

Name: Danfoss 034G6212 - Electric expansion valve, ETS 5M24
Brand: Danfoss
SKU: 034G6212
Availability: InStock

Доступно к заказу

Цена по запросу

Получить КП / Счет

Получи КП от 5 лучших поставщиков промышленного оборудования

С указанием цены, наличия, сроков поставки и скидок.
И выбери подходящего.

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Danfoss 034G6212 - Electric expansion valve, ETS 5M24

Inlet size [mm]: 6.35, Outlet size [mm]: 6.35

Информация о продукте

Gross weight	0.05 kg
Net weight	0.04 kg

EAN	5702428680547

Gross weight	0.05 kg
Net weight	0.04 kg
EAN	5702428680547

Ambient temperature range [°C] [Max]	60 °C
Ambient temperature range [°C] [Min]	-10 °C
Ambient temperature range [°F] [Max]	140 °F
Ambient temperature range [°F] [Min]	14 °F
Category	Art. 4, par. 3
Compatible Danfoss controllers	EIM 336, EKE 1A, EKE 1B, EKE 1C
Connection material	Copper
Connection type	Solder, ODM
Design config. Style	L
Flow direction	Bi-flow
Inlet size [in]	1/4 IN
Inlet size [mm]	6.35 mm
Lubricants compatibility	POE
Manual operation option	AST-G service driver, Manual coil
Max. Working Pressure [bar]	45.5 bar
Max. Working Pressure [psig]	660 psig
MaxOPD [bar]	35 bar
MaxOPD [psig]	508 psig
MaxOPD reverse [bar]	35 bar
MaxOPD reverse [psi]	543.0345 psi
Min. Leakage [cm³/min] @ 1 Mpa	150 cm³/min
Motor type	Permanent magnet stepper motor
Orifice size [mm]	2.4 mm
Outlet size [in]	1/4 IN
Outlet size [mm]	6.35 mm
Packing format	Multi pack
Parts Program name	ETS 5M
Product accessories	Electric valve accessories
Product family name	ETS 5 Mini EEV
Product group	Expansion valves
Product name	Electric expansion valve
Quantity per packing format	20 pc
Rated cap. conditions [SI]	Subcooling=0 ºC, Superheat=0 ºC, tcond=38 ºC, tevap=5 ºC
Rated cap. R404A/R507A [kW]	12 kW
Rated cap. R404A/R507A [TR]	3.41 tons
Rated capacity R1234yf [kW]	9.31 kW
Rated capacity R1234yf [TR]	2.65 tons
Rated capacity R1234ze(E) [kW]	9.58 kW
Rated capacity R1234ze(E) [TR]	2.72 tons
Rated capacity R134a [kW]	12.71 kW
Rated capacity R134a [TR]	3.61 tons
Rated capacity R22 [kW]	17 kW
Rated capacity R22 [TR]	4.83 tons
Rated capacity R290 [kW]	17.64 kW
Rated capacity R290 [TR]	5.02 tons
Rated capacity R32 [kW]	29.88 kW
Rated capacity R32 [TR]	8.5 tons

Rated capacity R407C [kW]	17.71 kW
Rated capacity R407C [TR]	5.04 tons
Rated capacity R407H [kW]	19.79 kW
Rated capacity R407H [TR]	5.63 tons
Rated capacity R410A [kW]	20.23 kW
Rated capacity R410A [TR]	5.75 tons
Rated capacity R448A [kW]	17 kW
Rated capacity R448A [TR]	4.83 tons
Rated capacity R449A [kW]	16.62 kW
Rated capacity R449A [TR]	4.73 tons
Rated capacity R449B [kW]	16.9 kW
Rated capacity R449B [TR]	4.81 tons
Rated capacity R452A [kW]	12.81 kW
Rated capacity R452A [TR]	3.64 tons
Rated capacity R452B [kW]	23.2 kW
Rated capacity R452B [TR]	6.6 tons
Rated capacity R454A [kW]	17.25 kW
Rated capacity R454A [TR]	4.9 tons
Rated capacity R454B [kW]	23.45 kW
Rated capacity R454B [TR]	6.67 tons
Rated capacity R454C [kW]	14.77 kW
Rated capacity R454C [TR]	4.2 tons
Rated capacity R455A [kW]	16.3 kW
Rated capacity R455A [TR]	4.63 tons
Rated capacity R513A [kW]	10.79 kW
Rated capacity R513A [TR]	3.07 tons
Rated capacity R515B [kW]	9.28 kW
Rated capacity R515B [TR]	2.64 tons
Refrigerant oil compatibility	POE
Refrigerant temperature [ºC] [Max]	70 °C
Refrigerant temperature [ºC] [Min]	-30 °C
Refrigerant temperature [ºF] [Max]	158 °F
Refrigerant temperature [ºF] [Min]	-22 °F
Refrigerants	R32, R410A, R1234yf, R1234ze(E), R134a, R22, R290, R404A/R507A, R407C, R407H, R448A, R449A, R449B, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B
Relative humidity (RH) [%] [Max]	95 %
Relative humidity (RH) [%] [Min]	0 %
Serviceable	No
Step mode	1-2 excitation (half step), 2-2 excitation (full step)
Storage temperature range [°C] [Max]	70 °C
Storage temperature range [°C] [Min]	-30 °C
Storage temperature range [°F] [Max]	158 °F
Storage temperature range [°F] [Min]	-22 °F
Total steps	480 (half steps)
Type	ETS 5M24
Valve open pulses@normal flow	55 ± 16 steps
Valve open pulses@reverse flow	15 ± 15 steps

Ambient temperature range [°C] [Max]	60 °C
Ambient temperature range [°C] [Min]	-10 °C
Ambient temperature range [°F] [Max]	140 °F
Ambient temperature range [°F] [Min]	14 °F
Category	Art. 4, par. 3
Compatible Danfoss controllers	EIM 336, EKE 1A, EKE 1B, EKE 1C
Connection material	Copper
Connection type	Solder, ODM
Design config. Style	L
Flow direction	Bi-flow
Inlet size [in]	1/4 IN
Inlet size [mm]	6.35 mm
Lubricants compatibility	POE
Manual operation option	AST-G service driver, Manual coil
Max. Working Pressure [bar]	45.5 bar
Max. Working Pressure [psig]	660 psig
MaxOPD [bar]	35 bar
MaxOPD [psig]	508 psig
MaxOPD reverse [bar]	35 bar
MaxOPD reverse [psi]	543.0345 psi
Min. Leakage [cm³/min] @ 1 Mpa	150 cm³/min
Motor type	Permanent magnet stepper motor
Orifice size [mm]	2.4 mm
Outlet size [in]	1/4 IN
Outlet size [mm]	6.35 mm
Packing format	Multi pack
Parts Program name	ETS 5M
Product accessories	Electric valve accessories
Product family name	ETS 5 Mini EEV
Product group	Expansion valves
Product name	Electric expansion valve
Quantity per packing format	20 pc
Rated cap. conditions [SI]	Subcooling=0 ºC, Superheat=0 ºC, tcond=38 ºC, tevap=5 ºC
Rated cap. R404A/R507A [kW]	12 kW
Rated cap. R404A/R507A [TR]	3.41 tons
Rated capacity R1234yf [kW]	9.31 kW
Rated capacity R1234yf [TR]	2.65 tons
Rated capacity R1234ze(E) [kW]	9.58 kW
Rated capacity R1234ze(E) [TR]	2.72 tons
Rated capacity R134a [kW]	12.71 kW
Rated capacity R134a [TR]	3.61 tons
Rated capacity R22 [kW]	17 kW
Rated capacity R22 [TR]	4.83 tons
Rated capacity R290 [kW]	17.64 kW
Rated capacity R290 [TR]	5.02 tons
Rated capacity R32 [kW]	29.88 kW
Rated capacity R32 [TR]	8.5 tons
Rated capacity R407C [kW]	17.71 kW
Rated capacity R407C [TR]	5.04 tons
Rated capacity R407H [kW]	19.79 kW
Rated capacity R407H [TR]	5.63 tons
Rated capacity R410A [kW]	20.23 kW
Rated capacity R410A [TR]	5.75 tons
Rated capacity R448A [kW]	17 kW
Rated capacity R448A [TR]	4.83 tons
Rated capacity R449A [kW]	16.62 kW
Rated capacity R449A [TR]	4.73 tons
Rated capacity R449B [kW]	16.9 kW
Rated capacity R449B [TR]	4.81 tons
Rated capacity R452A [kW]	12.81 kW
Rated capacity R452A [TR]	3.64 tons
Rated capacity R452B [kW]	23.2 kW
Rated capacity R452B [TR]	6.6 tons
Rated capacity R454A [kW]	17.25 kW
Rated capacity R454A [TR]	4.9 tons
Rated capacity R454B [kW]	23.45 kW
Rated capacity R454B [TR]	6.67 tons
Rated capacity R454C [kW]	14.77 kW
Rated capacity R454C [TR]	4.2 tons
Rated capacity R455A [kW]	16.3 kW
Rated capacity R455A [TR]	4.63 tons
Rated capacity R513A [kW]	10.79 kW
Rated capacity R513A [TR]	3.07 tons
Rated capacity R515B [kW]	9.28 kW
Rated capacity R515B [TR]	2.64 tons
Refrigerant oil compatibility	POE
Refrigerant temperature [ºC] [Max]	70 °C
Refrigerant temperature [ºC] [Min]	-30 °C
Refrigerant temperature [ºF] [Max]	158 °F
Refrigerant temperature [ºF] [Min]	-22 °F
Refrigerants	R32, R410A, R1234yf, R1234ze(E), R134a, R22, R290, R404A/R507A, R407C, R407H, R448A, R449A, R449B, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B
Relative humidity (RH) [%] [Max]	95 %
Relative humidity (RH) [%] [Min]	0 %
Serviceable	No
Step mode	1-2 excitation (half step), 2-2 excitation (full step)
Storage temperature range [°C] [Max]	70 °C
Storage temperature range [°C] [Min]	-30 °C
Storage temperature range [°F] [Max]	158 °F
Storage temperature range [°F] [Min]	-22 °F
Total steps	480 (half steps)
Type	ETS 5M24
Valve open pulses@normal flow	55 ± 16 steps
Valve open pulses@reverse flow	15 ± 15 steps

Основные характеристики

Ambient temperature range [°C] [Max]: 60 °C
Ambient temperature range [°C] [Min]: -10 °C
Ambient temperature range [°F] [Max]: 140 °F
Ambient temperature range [°F] [Min]: 14 °F
Category: Art. 4, par. 3
Compatible Danfoss controllers: EIM 336EKE 1AEKE 1BEKE 1C
Connection material: Copper
Connection type: Solder, ODM
Design config. Style: L
EAN: 5702428680547
Flow direction: Bi-flow
Gross weight: 0.05 kg
Inlet size [in]: 1/4 IN
Inlet size [mm]: 6.35 mm
Lubricants compatibility: POE
Manual operation option: AST-G service driverManual coil
Max. Working Pressure [bar]: 45.5 bar
Max. Working Pressure [psig]: 660 psig
MaxOPD reverse [bar]: 35 bar
MaxOPD reverse [psi]: 543.0345 psi
MaxOPD [bar]: 35 bar
MaxOPD [psig]: 508 psig
Min. Leakage [cm³/min] @ 1 Mpa: 150 cm³/min
Motor type: Permanent magnet stepper motor
Net weight: 0.04 kg
Orifice size [mm]: 2.4 mm
Outlet size [in]: 1/4 IN
Outlet size [mm]: 6.35 mm
Packing format: Multi pack
Parts Program name: ETS 5M
Product accessories: Electric valve accessories
Product family name: ETS 5 Mini EEV
Product group: Expansion valves
Product name: Electric expansion valve
Quantity per packing format: 20 pc
Rated cap. conditions [SI]: Subcooling=0 ºCSuperheat=0 ºCtcond=38 ºCtevap=5 ºC
Rated cap. R404A/R507A [kW]: 12 kW
Rated cap. R404A/R507A [TR]: 3.41 tons
Rated capacity R1234yf [kW]: 9.31 kW
Rated capacity R1234yf [TR]: 2.65 tons
Rated capacity R1234ze(E) [kW]: 9.58 kW
Rated capacity R1234ze(E) [TR]: 2.72 tons
Rated capacity R134a [kW]: 12.71 kW
Rated capacity R134a [TR]: 3.61 tons
Rated capacity R22 [kW]: 17 kW
Rated capacity R22 [TR]: 4.83 tons
Rated capacity R290 [kW]: 17.64 kW
Rated capacity R290 [TR]: 5.02 tons

Rated capacity R32 [kW]: 29.88 kW
Rated capacity R32 [TR]: 8.5 tons
Rated capacity R407C [kW]: 17.71 kW
Rated capacity R407C [TR]: 5.04 tons
Rated capacity R407H [kW]: 19.79 kW
Rated capacity R407H [TR]: 5.63 tons
Rated capacity R410A [kW]: 20.23 kW
Rated capacity R410A [TR]: 5.75 tons
Rated capacity R448A [kW]: 17 kW
Rated capacity R448A [TR]: 4.83 tons
Rated capacity R449A [kW]: 16.62 kW
Rated capacity R449A [TR]: 4.73 tons
Rated capacity R449B [kW]: 16.9 kW
Rated capacity R449B [TR]: 4.81 tons
Rated capacity R452A [kW]: 12.81 kW
Rated capacity R452A [TR]: 3.64 tons
Rated capacity R452B [kW]: 23.2 kW
Rated capacity R452B [TR]: 6.6 tons
Rated capacity R454A [kW]: 17.25 kW
Rated capacity R454A [TR]: 4.9 tons
Rated capacity R454B [kW]: 23.45 kW
Rated capacity R454B [TR]: 6.67 tons
Rated capacity R454C [kW]: 14.77 kW
Rated capacity R454C [TR]: 4.2 tons
Rated capacity R455A [kW]: 16.3 kW
Rated capacity R455A [TR]: 4.63 tons
Rated capacity R513A [kW]: 10.79 kW
Rated capacity R513A [TR]: 3.07 tons
Rated capacity R515B [kW]: 9.28 kW
Rated capacity R515B [TR]: 2.64 tons
Refrigerant oil compatibility: POE
Refrigerant temperature [ºC] [Max]: 70 °C
Refrigerant temperature [ºC] [Min]: -30 °C
Refrigerant temperature [ºF] [Max]: 158 °F
Refrigerant temperature [ºF] [Min]: -22 °F
Refrigerants: R32R410AR1234yfR1234ze(E)R134aR22R290R404A/R507AR407CR407HR448AR449AR449BR452AR452BR454AR454BR454CR455AR463AR513AR515B
Relative humidity (RH) [%] [Max]: 95 %
Relative humidity (RH) [%] [Min]: 0 %
Serviceable: No
Step mode: 1-2 excitation (half step)2-2 excitation (full step)
Storage temperature range [°C] [Max]: 70 °C
Storage temperature range [°C] [Min]: -30 °C
Storage temperature range [°F] [Max]: 158 °F
Storage temperature range [°F] [Min]: -22 °F
Total steps: 480 (half steps)
TYPE: ETS 5M24
Valve open pulses@normal flow: 55 ± 16 steps
Valve open pulses@reverse flow: 15 ± 15 steps

Мы предлагаем следующие способы доставки товара:

Самовывоз из пункта выдачи

Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.

Курьерская доставка по Москве

Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.

Доставка транспортной компанией по России

Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.

Мы предлагаем следующие способы оплаты товара:

Оплата наличными

Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.

Безналичная оплата

Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.

Электронные способы

Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.

Контакты отдела доставки:
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru

Запросить КП / Счет

Вся поставляемая продукция Danfoss имеет официальную гарантию.

Сервис гарантии включает в себя:

Приемку в сервисном центре для выполнения диагностики дефекта.
Ремонт.
Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.

Контакты гарантийного отдела:

Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru

Запросить КП / Счет

Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:

Окажет профессиональную консультацию.
Сообщит цену.
Сообщит информацию об актуальных акциях и скидках.
Подскажет ближайшее к вам отделение с наличием нужной продукции.
Согласует с вами возможное время доставки.

Связаться с отделом продажТелефон: +7 495 266-67-99
E-mail: sale@df-russia.ru

Запросить КП / Счет

Запрос цен, наличия или консультация

Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки

Мною прочитаны и я даю согласие с документом Политика обработки ПДн

Отзывы0

Нет отзывов об этом товаре.

Написать отзыв

Рейтинг

Отзывы с оценкой

	0%	0 отзывов
	0%	0 отзывов
	0%	0 отзывов
	0%	0 отзывов
	0%	0 отзывов

Теги: 034G6212, Electric expansion valve, ETS 5M24
