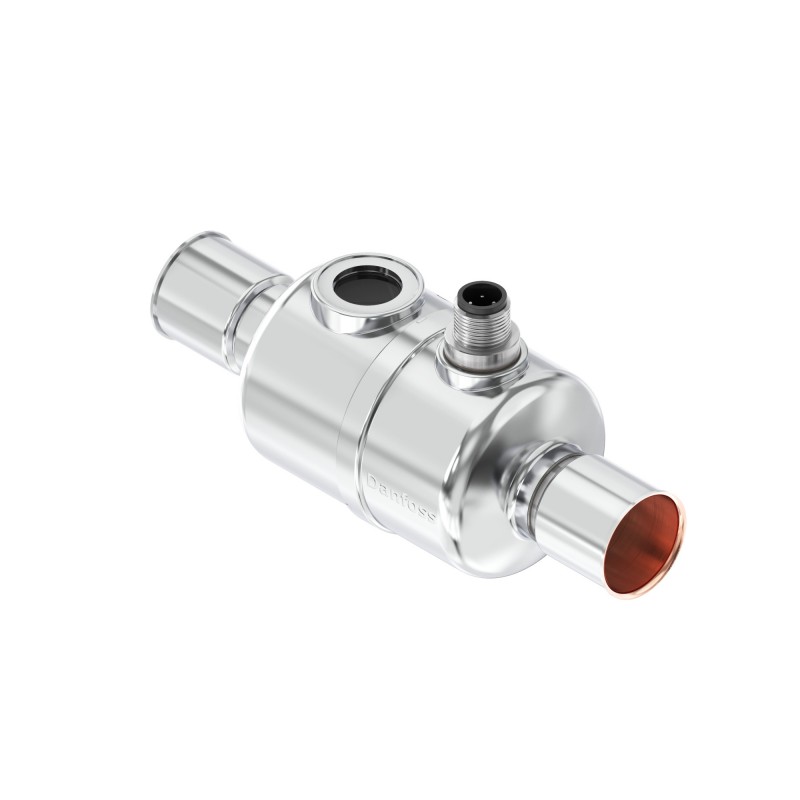

Danfoss 034G7710 - Electric expansion valve, ETS 50C
Inlet size [mm]: 22.00, Inlet connection type: Solder ODF, Outlet size [mm]: 22.00, Outlet connection type: Solder ODF
Информация о продукте
| Gross weight | 0.41 kg |
| Net weight | 0.32 kg |
| EAN | 5702428539265 |
| Gross weight | 0.41 kg |
| Net weight | 0.32 kg |
| EAN | 5702428539265 |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE, EAC, LLC CDC TYSK, UR, ATEX, CCC, CMIM |
| ATEX Sales text | -40 / +70C, II 3G Ex ec IIB T4 Gc |
| Balanced port [Yes/No] | Yes |
| Body material | Stainless steel |
| Brand | Colibri |
| Category | Art. 4, par. 3 |
| Compatible Danfoss controllers | EKE 1A, EKE 1B, EKE 1C, MCX 152V, MCX 061V |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Fluid Group | I |
| Full travel time speed [s] [Max] | 6 " |
| Full travel time speed [s] [Min] | 3 " |
| Further information | Approved for flammable refrige |
| Identical product | 034G7700 |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 7/8 IN |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 2.4 m³/h |
| Lubricants compatibility | Oilfree applications |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100 % |
| Max tot PowerCons CurrDrive[W] | 7.2 W |
| Max tot PowerCons VoltDrive[W] | 7.2 W |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD [bar] | 40 bar |
| MaxOPD [psi] | 580 psi |
| MaxOPD reverse [bar] | 40 bar |
| MaxOPD reverse [psi] | 580 psi |
| Motor type | Bi-polar |
| Oil free refrigerants | R1234ze(E), R134a, R513A, R515A, R515B, R516A |
| Operating current max. [A] | 0.8 A |
| Outlet connection type | Solder ODF |
| Outlet size [in] | 7/8 IN |
| Outlet size [mm] | 22 mm |
| Packing format | Industrial pack |
| Phase current (peak) [mA] | 800 mA |
| Phase current (RMS) [mA] | 600 mA |
| Phase inductance [µH] | 14000 µHz |
| Product accessories | Stepper valve accessories |
| Product family name | ETS Colibri |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Quantity per packing format | 12 pc |
| Rated cap. cond. note | Full stroke open, normal flow |
| Rated cap. conditions [IMP] | tcond=90 ºF, tevap=40 ºF, tliq=82 ºF |
| Rated cap. conditions [SI] | tcond=32 ºC, tevap=5 ºC, tliq=28 ºC |
| Rated cap. R404A/R507A [kW] | 200 kW |
| Rated cap. R404A/R507A [TR] | 93.3 tons |
| Rated capacity R134a [kW] | 210 kW |
| Rated capacity R134a [TR] | 60.5 tons |
| Rated capacity R22 [kW] | 267.7 kW |
| Rated capacity R22 [TR] | 76.1 tons |
| Rated capacity R407C [kW] | 294 kW |
| Rated capacity R407C [TR] | 84.5 tons |
| Rated capacity R410A [kW] | 323 kW |
| Rated capacity R410A [TR] | 93.3 tons |
| Refrigerant oil compatibility | Oilfree applications, R1234ze(E), R134a, R513A, R515A, R515B, R516A |
| Refrigerant temperature [ºC] [Max] | 70 °C |
| Refrigerant temperature [ºC] [Min] | -40 °C |
| Refrigerant temperature [ºF] [Max] | 158 °F |
| Refrigerant temperature [ºF] [Min] | -40 °F |
| Refrigerants | R1234yf, R1270, R134a, R23, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R422A, R422D, R427A, R438A, R444B, R448A, R449A, R450A, R452A, R452B, R454B, R513A, R600, R600a, R1233zd(E), R22, R407B, R407H, R413A, R422B, R442A, R447A, R449B, R454A, R454C, R455A, R463A, R502, R512A, R513B, R515A, R515B, R516A, R245fa, R412A, R500, R1234ze(E), R227ea, R507A |
| Resistance [kOhm] | 0.01 kOhm |
| Serviceable | No |
| Sightglass | Type SG (N indicator) |
| Step mode | 2-phase full step, Half step, Microstep (recommended) |
| Total steps | 600 (full steps) |
| Type | ETS 50C |
| UL approved refrigerants | R134a, R227ea, R23, R404A, R407A, R407C, R407F, R410A, R417A, R422A, R422D, R427A, R438A, R448A, R449A, R450A, R452A, R507A, R513A |
| Ambient temperature range [°C] [Max] | 70 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 158 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CE, EAC, LLC CDC TYSK, UR, ATEX, CCC, CMIM |
| ATEX Sales text | -40 / +70C, II 3G Ex ec IIB T4 Gc |
| Balanced port [Yes/No] | Yes |
| Body material | Stainless steel |
| Brand | Colibri |
| Category | Art. 4, par. 3 |
| Compatible Danfoss controllers | EKE 1A, EKE 1B, EKE 1C, MCX 152V, MCX 061V |
| Connection material | Bi-metal: Steel/copper |
| Direction | Straightway |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP67 |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 2-way arrow |
| Fluid Group | I |
| Full travel time speed [s] [Max] | 6 " |
| Full travel time speed [s] [Min] | 3 " |
| Further information | Approved for flammable refrige |
| Identical product | 034G7700 |
| Inlet connection type | Solder ODF |
| Inlet size [in] | 7/8 IN |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 2.4 m³/h |
| Lubricants compatibility | Oilfree applications |
| Manual operation option | AST-G service driver |
| Max allowed duty cycle [%] | 100 % |
| Max tot PowerCons CurrDrive[W] | 7.2 W |
| Max tot PowerCons VoltDrive[W] | 7.2 W |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD [bar] | 40 bar |
| MaxOPD [psi] | 580 psi |
| MaxOPD reverse [bar] | 40 bar |
| MaxOPD reverse [psi] | 580 psi |
| Motor type | Bi-polar |
| Oil free refrigerants | R1234ze(E), R134a, R513A, R515A, R515B, R516A |
| Operating current max. [A] | 0.8 A |
| Outlet connection type | Solder ODF |
| Outlet size [in] | 7/8 IN |
| Outlet size [mm] | 22 mm |
| Packing format | Industrial pack |
| Phase current (peak) [mA] | 800 mA |
| Phase current (RMS) [mA] | 600 mA |
| Phase inductance [µH] | 14000 µHz |
| Product accessories | Stepper valve accessories |
| Product family name | ETS Colibri |
| Product group | Expansion valves |
| Product name | Electric expansion valve |
| Quantity per packing format | 12 pc |
| Rated cap. cond. note | Full stroke open, normal flow |
| Rated cap. conditions [IMP] | tcond=90 ºF, tevap=40 ºF, tliq=82 ºF |
| Rated cap. conditions [SI] | tcond=32 ºC, tevap=5 ºC, tliq=28 ºC |
| Rated cap. R404A/R507A [kW] | 200 kW |
| Rated cap. R404A/R507A [TR] | 93.3 tons |
| Rated capacity R134a [kW] | 210 kW |
| Rated capacity R134a [TR] | 60.5 tons |
| Rated capacity R22 [kW] | 267.7 kW |
| Rated capacity R22 [TR] | 76.1 tons |
| Rated capacity R407C [kW] | 294 kW |
| Rated capacity R407C [TR] | 84.5 tons |
| Rated capacity R410A [kW] | 323 kW |
| Rated capacity R410A [TR] | 93.3 tons |
| Refrigerant oil compatibility | Oilfree applications, R1234ze(E), R134a, R513A, R515A, R515B, R516A |
| Refrigerant temperature [ºC] [Max] | 70 °C |
| Refrigerant temperature [ºC] [Min] | -40 °C |
| Refrigerant temperature [ºF] [Max] | 158 °F |
| Refrigerant temperature [ºF] [Min] | -40 °F |
| Refrigerants | R1234yf, R1270, R134a, R23, R290, R32, R404A, R407A, R407C, R407F, R410A, R417A, R422A, R422D, R427A, R438A, R444B, R448A, R449A, R450A, R452A, R452B, R454B, R513A, R600, R600a, R1233zd(E), R22, R407B, R407H, R413A, R422B, R442A, R447A, R449B, R454A, R454C, R455A, R463A, R502, R512A, R513B, R515A, R515B, R516A, R245fa, R412A, R500, R1234ze(E), R227ea, R507A |
| Resistance [kOhm] | 0.01 kOhm |
| Serviceable | No |
| Sightglass | Type SG (N indicator) |
| Step mode | 2-phase full step, Half step, Microstep (recommended) |
| Total steps | 600 (full steps) |
| Type | ETS 50C |
| UL approved refrigerants | R134a, R227ea, R23, R404A, R407A, R407C, R407F, R410A, R417A, R422A, R422D, R427A, R438A, R448A, R449A, R450A, R452A, R507A, R513A |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Основные характеристики
- Ambient temperature range [°C] [Max]
- 70 °C
- Ambient temperature range [°C] [Min]
- -40 °C
- Ambient temperature range [°F] [Max]
- 158 °F
- Ambient temperature range [°F] [Min]
- -40 °F
- Approval
- CEEACLLC CDC TYSKURATEXCCCCMIM
- ATEX Sales text
- -40 / +70CII 3G Ex ec IIB T4 Gc
- Balanced port [Yes/No]
- Yes
- Body material
- Stainless steel
- Brand
- Colibri
- Category
- Art. 4, par. 3
- Compatible Danfoss controllers
- EKE 1AEKE 1BEKE 1CMCX 152VMCX 061V
- Connection material
- Bi-metal: Steel/copper
- Direction
- Straightway
- EAN
- 5702428539265
- Electrical conn. Male/Female
- Male
- Electrical connection
- M12
- Electrical connection size
- 4 pin
- Enclosure rating IP
- IP67
- Flow direction
- Bi-flow
- Flow direction indicator
- Laser engraved 2-way arrow
- Fluid Group
- I
- Full travel time speed [s] [Max]
- 6 "
- Full travel time speed [s] [Min]
- 3 "
- Further information
- Approved for flammable refrige
- Gross weight
- 0.41 kg
- Identical product
- 034G7700
- Inlet connection type
- Solder ODF
- Inlet size [in]
- 7/8 IN
- Inlet size [mm]
- 22 mm
- Kv value [m³/h]
- 2.4 m³/h
- Lubricants compatibility
- Oilfree applications
- Manual operation option
- AST-G service driver
- Max allowed duty cycle [%]
- 100 %
- Max tot PowerCons CurrDrive[W]
- 7.2 W
- Max tot PowerCons VoltDrive[W]
- 7.2 W
- Max. Working Pressure [bar]
- 50 bar
- Max. Working Pressure [psig]
- 725 psig
- MaxOPD reverse [bar]
- 40 bar
- MaxOPD reverse [psi]
- 580 psi
- MaxOPD [bar]
- 40 bar
- MaxOPD [psi]
- 580 psi
- Motor type
- Bi-polar
- Net weight
- 0.32 kg
- Oil free refrigerants
- R1234ze(E)R134aR513AR515AR515BR516A
- Operating current max. [A]
- 0.8 A
- Outlet connection type
- Solder ODF
- Outlet size [in]
- 7/8 IN
- Outlet size [mm]
- 22 mm
- Packing format
- Industrial pack
- Phase current (peak) [mA]
- 800 mA
- Phase current (RMS) [mA]
- 600 mA
- Phase inductance [µH]
- 14000 µHz
- Product accessories
- Stepper valve accessories
- Product family name
- ETS Colibri
- Product group
- Expansion valves
- Product name
- Electric expansion valve
- Quantity per packing format
- 12 pc
- Rated cap. cond. note
- Full stroke open, normal flow
- Rated cap. conditions [IMP]
- tcond=90 ºFtevap=40 ºFtliq=82 ºF
- Rated cap. conditions [SI]
- tcond=32 ºCtevap=5 ºCtliq=28 ºC
- Rated cap. R404A/R507A [kW]
- 200 kW
- Rated cap. R404A/R507A [TR]
- 93.3 tons
- Rated capacity R134a [kW]
- 210 kW
- Rated capacity R134a [TR]
- 60.5 tons
- Rated capacity R22 [kW]
- 267.7 kW
- Rated capacity R22 [TR]
- 76.1 tons
- Rated capacity R407C [kW]
- 294 kW
- Rated capacity R407C [TR]
- 84.5 tons
- Rated capacity R410A [kW]
- 323 kW
- Rated capacity R410A [TR]
- 93.3 tons
- Refrigerant oil compatibility
- Oilfree applicationsR1234ze(E)R134aR513AR515AR515BR516A
- Refrigerant temperature [ºC] [Max]
- 70 °C
- Refrigerant temperature [ºC] [Min]
- -40 °C
- Refrigerant temperature [ºF] [Max]
- 158 °F
- Refrigerant temperature [ºF] [Min]
- -40 °F
- Refrigerants
- R1234yfR1270R134aR23R290R32R404AR407AR407CR407FR410AR417AR422AR422DR427AR438AR444BR448AR449AR450AR452AR452BR454BR513AR600R600aR1233zd(E)R22R407BR407HR413AR422BR442AR447AR449BR454AR454CR455AR463AR502R512AR513BR515AR515BR516AR245faR412AR500R1234ze(E)R227eaR507A
- Resistance [kOhm]
- 0.01 kOhm
- Serviceable
- No
- Sightglass
- Type SG (N indicator)
- Step mode
- 2-phase full stepHalf stepMicrostep (recommended)
- Total steps
- 600 (full steps)
- TYPE
- ETS 50C
- UL approved refrigerants
- R134aR227eaR23R404AR407AR407CR407FR410AR417AR422AR422DR427AR438AR448AR449AR450AR452AR507AR513A
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru
Вся поставляемая продукция Danfoss имеет официальную гарантию.
Сервис гарантии включает в себя:
- Приемку в сервисном центре для выполнения диагностики дефекта.
- Ремонт.
- Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.
Контакты гарантийного отдела:
Телефон: +7 495 266-67-99E-mail: sale@df-russia.ru
Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:
- Окажет профессиональную консультацию.
- Сообщит цену.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможное время доставки.
E-mail: sale@df-russia.ru
Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
Нет отзывов об этом товаре.
