Артикул: 060-511766
В наличии

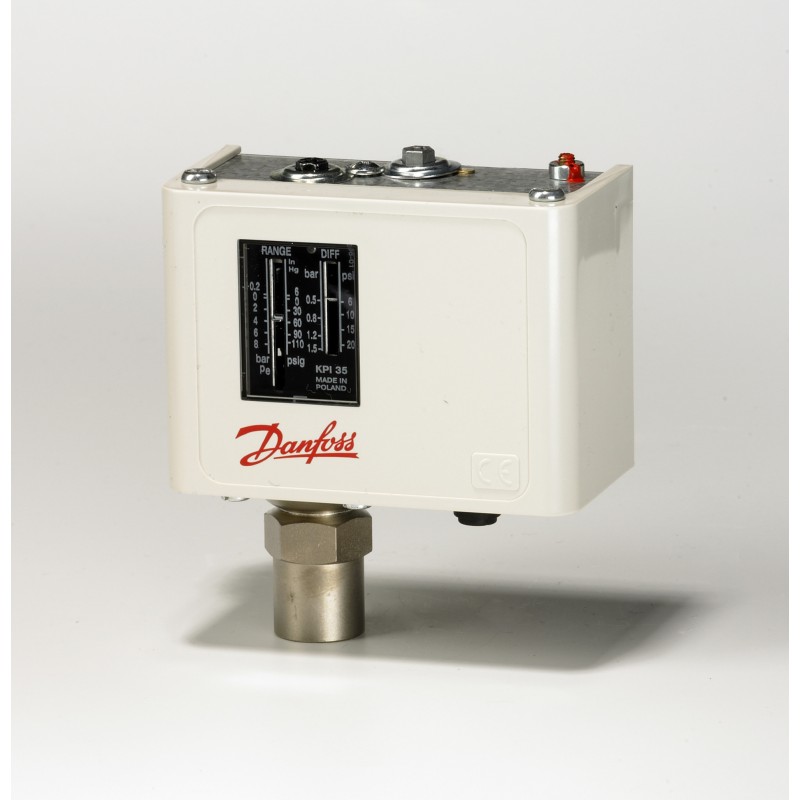

Danfoss 060-511766 - Pressure switch, KP35
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 060-511766 - Pressure switch, KP35
Regulation range [bar] Pe: -0.20 - 7.50, Differential [bar]: 0.70 - 4.00, Reset function: Auto, Pressure connection type: Flare, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 17.0
Информация о продукте
| Gross weight | 0.3 kg |
| Net weight | 0.26 kg |
| EAN | 5702428016827 |
| Gross weight | 0.3 kg |
| Net weight | 0.26 kg |
| EAN | 5702428016827 |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC, CE, EAC, RINA, RMRS, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, LLC CDC EURO-TYSK |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Differential [bar] [Max] | 4 bar |
| Differential [bar] [Min] | 0.7 bar |
| Differential [psi] [Max] | 58 psi |
| Differential [psi] [Min] | 10 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3, Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Packing format | Industrial pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure range category | Low pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 48 pc |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [Max] | 7.5 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Reset function | Auto |
| Serviceable | No |
| Type | KP35 |
| UL approval file name | E31024, MH27572 |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | CCC, CE, EAC, RINA, RMRS, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, LLC CDC EURO-TYSK |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Differential [bar] [Max] | 4 bar |
| Differential [bar] [Min] | 0.7 bar |
| Differential [psi] [Max] | 58 psi |
| Differential [psi] [Min] | 10 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3, Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | |
| Max. test pressure [bar] Pe | 22 bar |
| Max. test pressure [psig] | 319 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Packing format | Industrial pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure range category | Low pressure |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 48 pc |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [Max] | 7.5 bar |
| Regulation range [bar] Pe [Min] | -0.2 bar |
| Reset function | Auto |
| Serviceable | No |
| Type | KP35 |
| UL approval file name | E31024, MH27572 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 060-511766
Основные характеристики
- Ambient temperature range [°C] [Max]
- 65 °C
- Ambient temperature range [°C] [Min]
- -40 °C
- Ambient temperature range [°F] [Max]
- 149 °F
- Ambient temperature range [°F] [Min]
- -40 °F
- Approval
- CCCCEEACRINARMRSc UL us UL353, CS C22.2c UL us UL873, CS C22.2LLC CDC EURO-TYSK
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V
- Differential [bar] [Max]
- 4 bar
- Differential [bar] [Min]
- 0.7 bar
- Differential [psi] [Max]
- 58 psi
- Differential [psi] [Min]
- 10 psi
- EAN
- 5702428016827
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Pollution degree: 3Rated impulse voltage: 4 kV
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- Gross weight
- 0.3 kg
- Max. test pressure [bar] Pe
- 22 bar
- Max. test pressure [psig]
- 319 psig
- Max. Working Pressure [bar]
- 17 bar
- Max. Working Pressure [psig]
- 245 psig
- Net weight
- 0.26 kg
- Packing format
- Industrial pack
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure range category
- Low pressure
- Pressure sensing element
- Bellows
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product family name
- KP
- Product group
- Switches and thermostats
- Product name
- Pressure switch
- Quantity per packing format
- 48 pc
- Regulation range
- 6 inHg - 108 psig
- Regulation range [bar] Pe [Max]
- 7.5 bar
- Regulation range [bar] Pe [Min]
- -0.2 bar
- Reset function
- Auto
- Serviceable
- No
- TYPE
- KP35
- UL approval file name
- E31024MH27572
