Артикул: 060-519191
В наличии

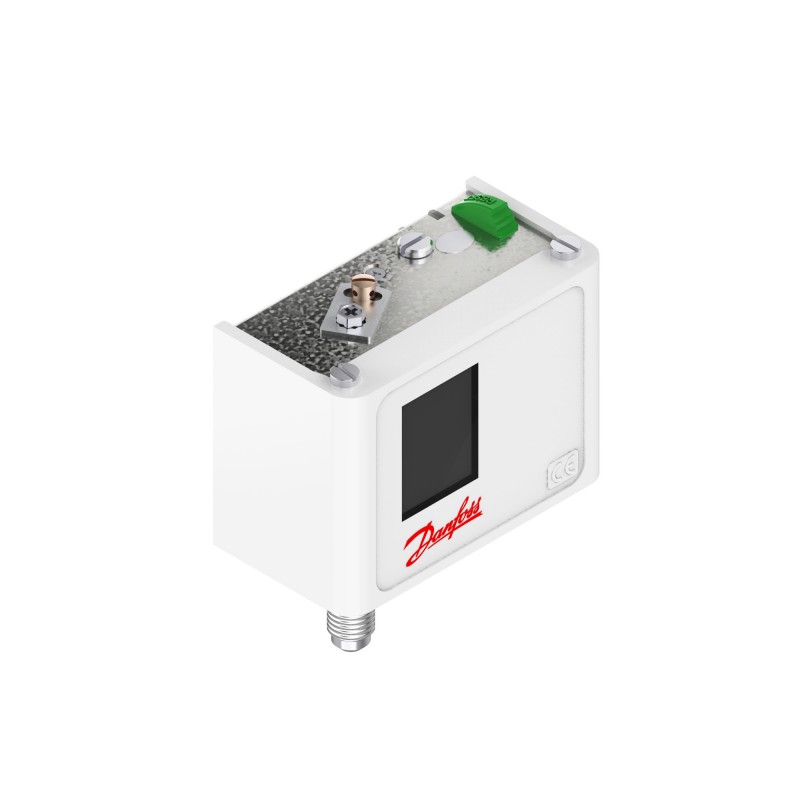

Danfoss 060-519191 - Pressure switch, KP6B
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 060-519191 - Pressure switch, KP6B
Regulation range [bar] Pe: 8.00 - 42.00, Differential [bar]: 4.00, Reset function: Manual Max, Pressure connection type: Flare, Pressure connection size: 1/4, Enclosure rating IP: IP30, Max. Working Pressure [bar]: 46.5
Информация о продукте
| Gross weight | 0.38 kg |
| Net weight | 0.34 kg |
| EAN | 5702424497200 |
| Gross weight | 0.38 kg |
| Net weight | 0.34 kg |
| EAN | 5702424497200 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -13 °F |
| Approval | CCC, CE, DNV, EAC, GL, LVD, PED, PZH, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2, LLC CDC EURO-TYSK |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Differential [bar] | 4 bar |
| Differential [psi] | 58 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3, Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 46.5 bar |
| Max. test pressure [psig] | 675 psig |
| Max. Working Pressure [bar] | 46.5 bar |
| Max. Working Pressure [psig] | 675 psig |
| Oil free refrigerants | R134a, R513A, R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Refrigerant oil compatibility | Oilfree applications, R134a, R513A, R515B |
| Refrigerants | R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R507A, R513A, R744 |
| Regulation range [bar] Pe [Max] | 42 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 610 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Reset function | Manual Max |
| Serviceable | No |
| Type | KP6B |
| UL approval file name | E31024 |
| UL approved refrigerants | R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R507A, R513A, R744 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -25 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -13 °F |
| Approval | CCC, CE, DNV, EAC, GL, LVD, PED, PZH, RINA, RMRS, RoHS China, c UL us UL873, CS C22.2, LLC CDC EURO-TYSK |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V, AC1=16 A, 400 V, AC3=16 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Differential [bar] | 4 bar |
| Differential [psi] | 58 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3, Rated impulse voltage: 4 kV |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2, Flex, no ferrules: 0.7-2.5 mm2, Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 46.5 bar |
| Max. test pressure [psig] | 675 psig |
| Max. Working Pressure [bar] | 46.5 bar |
| Max. Working Pressure [psig] | 675 psig |
| Oil free refrigerants | R134a, R513A, R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | KP |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 36 pc |
| Refrigerant oil compatibility | Oilfree applications, R134a, R513A, R515B |
| Refrigerants | R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R507A, R513A, R744 |
| Regulation range [bar] Pe [Max] | 42 bar |
| Regulation range [bar] Pe [Min] | 8 bar |
| Regulation range [psig] Pe [Max] | 610 psig |
| Regulation range [psig] Pe [Min] | 116 psig |
| Reset function | Manual Max |
| Serviceable | No |
| Type | KP6B |
| UL approval file name | E31024 |
| UL approved refrigerants | R113, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R507A, R513A, R744 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 060-519191
Основные характеристики
- Amb. Temp. Note
- 80 °C/176 °F for max 120 min
- Ambient temperature range [°C] [Max]
- 65 °C
- Ambient temperature range [°C] [Min]
- -25 °C
- Ambient temperature range [°F] [Max]
- 149 °F
- Ambient temperature range [°F] [Min]
- -13 °F
- Approval
- CCCCEDNVEACGLLVDPEDPZHRINARMRSRoHS Chinac UL us UL873, CS C22.2LLC CDC EURO-TYSK
- Contact function
- SPDT
- Contact rating
- AC15=10 A, 400 VAC1=16 A, 400 VAC3=16 A, 400 VDC13=12 W, 220 VLR=112 A, 400 V
- Differential [bar]
- 4 bar
- Differential [psi]
- 58 psi
- EAN
- 5702424497200
- Electrical connection
- Rubber cable gland
- Electrical connection size
- 6-14 mm
- EN 60947 electrical properties
- Pollution degree: 3Rated impulse voltage: 4 kV
- EN 60947 wiring properties
- Flex, ferrules: 0.5-1.5 mm2Flex, no ferrules: 0.7-2.5 mm2Solid/stranded: 0.75-2.5 mm2
- Enclosure rating IP
- IP30
- Enclosure rating Nema (~)
- 1
- Gross weight
- 0.38 kg
- Lubricants compatibility
- Oilfree applications
- Max. test pressure [bar] Pe
- 46.5 bar
- Max. test pressure [psig]
- 675 psig
- Max. Working Pressure [bar]
- 46.5 bar
- Max. Working Pressure [psig]
- 675 psig
- Net weight
- 0.34 kg
- Oil free refrigerants
- R134aR513AR515B
- Packing format
- Multi pack
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 8906
- Pressure connection type
- Flare
- Pressure Male/Female
- Male
- Pressure sensing element
- Bellows
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product family name
- KP
- Product group
- Switches and thermostats
- Product name
- Pressure switch
- Quantity per packing format
- 36 pc
- Refrigerant oil compatibility
- Oilfree applicationsR134aR513AR515B
- Refrigerants
- R113R124R134aR22R404AR407AR407CR407FR407HR410AR422BR422DR438AR448AR449AR450AR452AR507AR513AR744
- Regulation range [bar] Pe [Max]
- 42 bar
- Regulation range [bar] Pe [Min]
- 8 bar
- Regulation range [psig] Pe [Max]
- 610 psig
- Regulation range [psig] Pe [Min]
- 116 psig
- Reset function
- Manual Max
- Serviceable
- No
- TYPE
- KP6B
- UL approval file name
- E31024
- UL approved refrigerants
- R113R124R134aR22R404AR407AR407CR407FR407HR410AR422BR422DR438AR448AR449AR450AR452AR507AR513AR744
