Артикул: 060B200266

В наличии

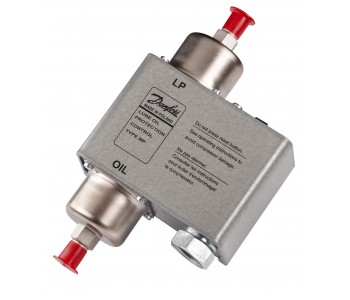

Danfoss 060B200266 - Differential pressure switch, MP54

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 060B200266 - Differential pressure switch, MP54

Reset function: Manual Min, Pressure connection type: Flare, Pressure connection size: 1/4 in, Enclosure rating IP: IP20, Max. Working Pressure [bar]: 17.0

Информация о продукте

Gross weight 0.75 kg
Net weight 0.67 kg
EAN 5702428365864



Adjustment Cut out for falling pressure
Amb. Temp. Note Bellows max 100 °C/212 °F
Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -40 °F
Ammonia application No
Approval CCC, CE, EAC, GL, LVD, RoHS, RoHS China, TYSK, c UL us UL873, CS C22.2, CMIM, LLC CDC EURO-TYSK
Approval file name E31024
Contact differential [bar] 0.2 bar
Contact function SPDT
Contact rating AC=2 A, 250 V, DC=0.2 A, 240 V
Electrical conn. Male/Female Female
Electrical connection Swivel cable connector
Electrical connection size NPSM 1/2 - 14
Electrical connection standard ANSI/ASME B1.20.1
EN 60947 electrical properties Pollution degree: 3, Rated impulse voltage: 4 kV, Short circuit prot, fuse: 2A
EN 60947 wiring properties Flex, ferrules: 0.2-1.0 mm2, Flex, no ferrules: 0.2-1.5 mm2, Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP IP20
Equipment Thermal time relay
Fixed Differential [bar] 0.65 bar
Fixed Differential [psi] 9 psi
Max. test pressure [bar] Pe 22 bar
Max. test pressure [psig] 319 psig
Max. Working Pressure [bar] 17 bar
Max. Working Pressure [psig] 245 psig
Operat. range LP side [bar] Pe [Max] 12 bar
Operat. range LP side [bar] Pe [Min] -1 bar
Operat. range LP side [psig]Pe [Max] 175 psig
Operat. range LP side [psig]Pe [Min] -15 psig
Packing format Multi pack
Pressure connection size 1/4 in
Pressure connection standard DIN 8906
Pressure connection type Flare
Pressure Male/Female Male
Product accessories Generic accessories
Product description Diff. Pressure Switch
Product family name MP
Product group Switches and thermostats
Product name Differential pressure switch
Quantity per packing format 21 pc
Refrigerants R11, R113, R12, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R450A, R452A, R507C, R513A, R449B, R515B
Relay release time [s] 90 "
Reset function Manual Min
Serviceable No
Type MP54
UL approved refrigerants R11, R113, R12, R124, R134a, R22, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507C, R513A, R515B

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 060B200266

Основные характеристики

Adjustment
Cut out for falling pressure
Amb. Temp. Note
Bellows max 100 °C/212 °F
Ambient temperature range [°C] [Max]
60 °C
Ambient temperature range [°C] [Min]
-40 °C
Ambient temperature range [°F] [Max]
140 °F
Ambient temperature range [°F] [Min]
-40 °F
Ammonia application
No
Approval
CCCCEEACGLLVDRoHSRoHS ChinaTYSKc UL us UL873, CS C22.2CMIMLLC CDC EURO-TYSK
Approval file name
E31024
Contact differential [bar]
0.2 bar
Contact function
SPDT
Contact rating
AC=2 A, 250 VDC=0.2 A, 240 V
EAN
5702428365864
Electrical conn. Male/Female
Female
Electrical connection
Swivel cable connector
Electrical connection size
NPSM 1/2 - 14
Electrical connection standard
ANSI/ASME B1.20.1
EN 60947 electrical properties
Pollution degree: 3Rated impulse voltage: 4 kVShort circuit prot, fuse: 2A
EN 60947 wiring properties
Flex, ferrules: 0.2-1.0 mm2Flex, no ferrules: 0.2-1.5 mm2Solid/stranded: 0.2-1.5 mm2
Enclosure rating IP
IP20
Equipment
Thermal time relay
Fixed Differential [bar]
0.65 bar
Fixed Differential [psi]
9 psi
Gross weight
0.75 kg
Max. test pressure [bar] Pe
22 bar
Max. test pressure [psig]
319 psig
Max. Working Pressure [bar]
17 bar
Max. Working Pressure [psig]
245 psig
Net weight
0.67 kg
Operat. range LP side [bar] Pe [Max]
12 bar
Operat. range LP side [bar] Pe [Min]
-1 bar
Operat. range LP side [psig]Pe [Max]
175 psig
Operat. range LP side [psig]Pe [Min]
-15 psig
Packing format
Multi pack
Pressure connection size
1/4 in
Pressure connection standard
DIN 8906
Pressure connection type
Flare
Pressure Male/Female
Male
Product accessories
Generic accessories
Product description
Diff. Pressure Switch
Product family name
MP
Product group
Switches and thermostats
Product name
Differential pressure switch
Quantity per packing format
21 pc
Refrigerants
R11R113R12R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR450AR452AR507CR513AR449BR515B
Relay release time [s]
90 "
Reset function
Manual Min
Serviceable
No
TYPE
MP54
UL approved refrigerants
R11R113R12R124R134aR22R404AR407AR407CR407FR407HR422BR422DR438AR448AR449AR449BR450AR452AR507CR513AR515B
