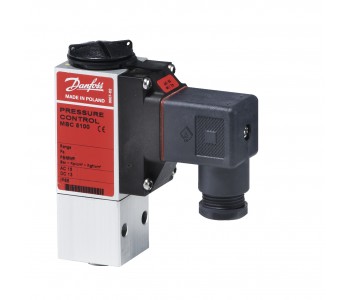

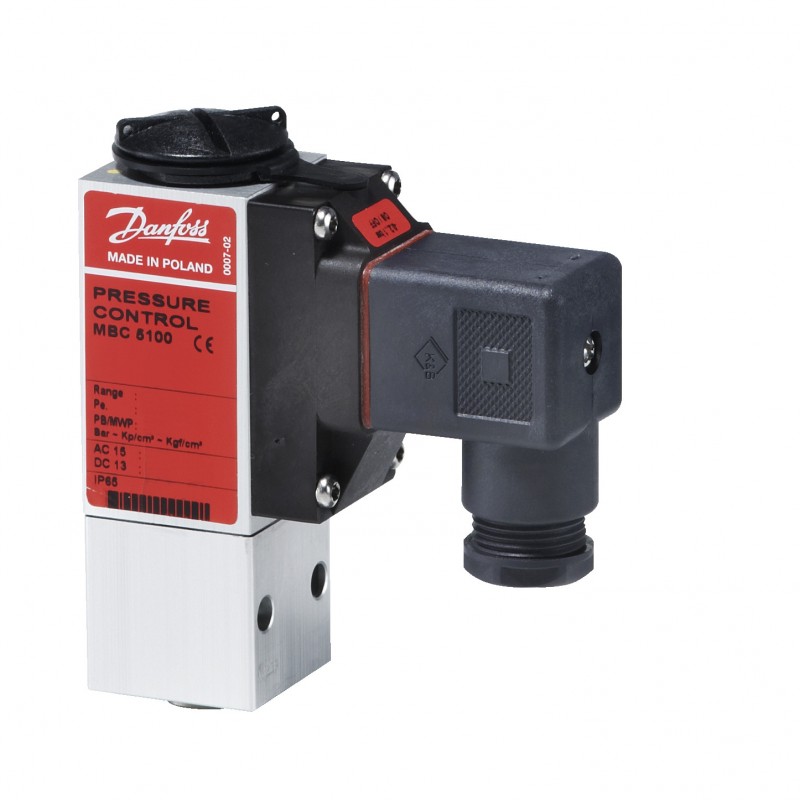

Danfoss 061B102966 - Pressure switch, MBC 5100
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 061B102966 - Pressure switch, MBC 5100
Regulation range [bar] Pe: 1.00 - 6.00, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 150.0
Информация о продукте
| Gross weight | 0.33 kg |
| Net weight | 0.28 kg |
| EAN | 5702423213641 |
| Gross weight | 0.33 kg |
| Net weight | 0.28 kg |
| EAN | 5702423213641 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK, CMIM, LLC CDC EURO-TYSK |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | Low pressure |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | MBC |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 6 bar |
| Regulation range [bar] Pe [Min] | 1 bar |
| Regulation range [MPa] Pe [Max] | 0.6 MPa |
| Regulation range [MPa] Pe [Min] | 0.1 MPa |
| Serviceable | No |
| Specification key | 2231-2DB04 |
| Type | MBC 5100 |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK, CMIM, LLC CDC EURO-TYSK |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 2.5 bar |
| Diff.@Min. range setting [bar] | 1 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 13.5 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | |
| Max. test pressure [bar] Pe | 150 bar |
| Max. test pressure [psig] | 2176 psig |
| Max. Working Pressure [bar] | 150 bar |
| Max. Working Pressure [psig] | 2175 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | Low pressure |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | MBC |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 6 bar |
| Regulation range [bar] Pe [Min] | 1 bar |
| Regulation range [MPa] Pe [Max] | 0.6 MPa |
| Regulation range [MPa] Pe [Min] | 0.1 MPa |
| Serviceable | No |
| Specification key | 2231-2DB04 |
| Type | MBC 5100 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 061B102966
Основные характеристики
- Ambient temperature range [°C] [Max]
- 85 °C
- Ambient temperature range [°C] [Min]
- -10 °C
- Ambient temperature range [°F] [Max]
- 185 °F
- Ambient temperature range [°F] [Min]
- 14 °F
- Approval
- ABSBVCCCCCSCEDNVEACGLKRSLRLVDNKKRINARMRSRoHSRoHS ChinaTYSKCMIMLLC CDC EURO-TYSK
- Burst pressure [bar]
- 300 bar
- Contact function
- SPDT
- Contact rating
- AC15=0.5 A, 250 VDC13=12 W, 125 V
- Diff.@Max. range setting [bar]
- 2.5 bar
- Diff.@Min. range setting [bar]
- 1 bar
- EAN
- 5702423213641
- Electrical conn. Male/Female
- Female
- Electrical connection
- DIN-plug
- Electrical connection size
- Pg 13.5
- Electrical connection standard
- EN 175301-803-A
- Electrical spec. standard
- EN 60947-5
- Enclosure rating IP
- IP65
- Gross weight
- 0.33 kg
- Max. test pressure [bar] Pe
- 150 bar
- Max. test pressure [psig]
- 2176 psig
- Max. Working Pressure [bar]
- 150 bar
- Max. Working Pressure [psig]
- 2175 psig
- Net weight
- 0.28 kg
- Packing format
- Multi pack
- Pressure connection notes
- With flange
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure range category
- Low pressure
- Pressure sensing element
- Diaphragm
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product family name
- MBC
- Product group
- Switches and thermostats
- Product name
- Pressure switch
- Quantity per packing format
- 32 pc
- Regulation range [bar] Pe [Max]
- 6 bar
- Regulation range [bar] Pe [Min]
- 1 bar
- Regulation range [MPa] Pe [Max]
- 0.6 MPa
- Regulation range [MPa] Pe [Min]
- 0.1 MPa
- Serviceable
- No
- Specification key
- 2231-2DB04
- TYPE
- MBC 5100
