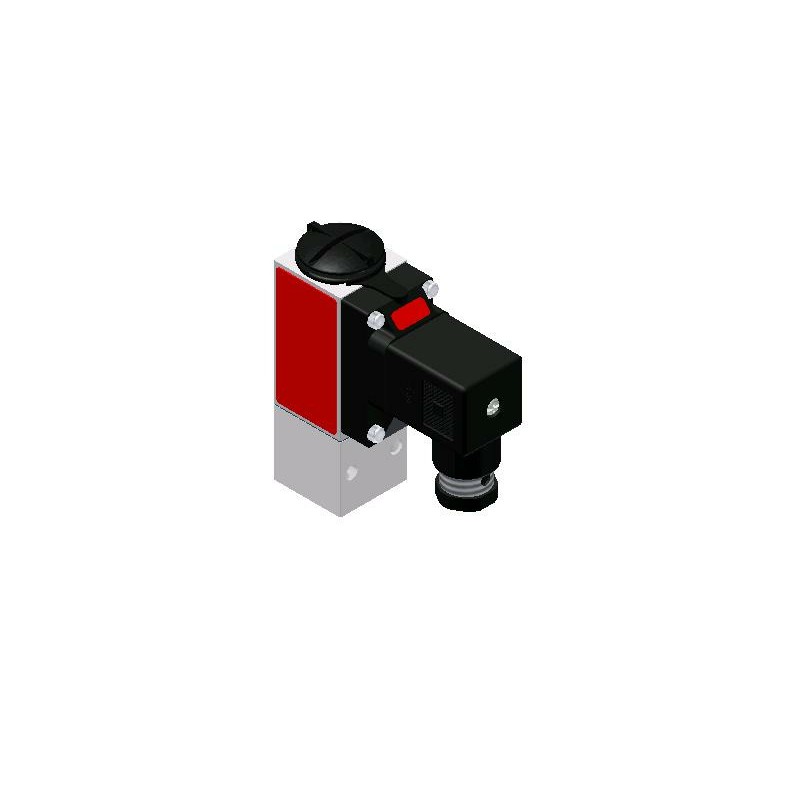

Danfoss 061B301666 - Pressure switch, MBC 5000
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 061B301666 - Pressure switch, MBC 5000
Regulation range [bar] Pe: 5.00 - 40.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 75.0
Информация о продукте
| Gross weight | 0.31 kg |
| Net weight | 0.21 kg |
| EAN | 5702428833592 |
| Gross weight | 0.31 kg |
| Net weight | 0.21 kg |
| EAN | 5702428833592 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS, RoHS China |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | 120/250Vac, 1,16 A Pilot duty, 120/250Vac, 6A resistive, 120/250Vac,2,9FLA,17,4LRA |
| Diff.@Max. range setting [bar] | 8.2 bar |
| Diff.@Min. range setting [bar] | 2.27 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Equipment | |
| Max. test pressure [bar] Pe | 75 bar |
| Max. test pressure [psig] | 1088 psig |
| Max. Working Pressure [bar] | 75 bar |
| Max. Working Pressure [psig] | 1088 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | MBC |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 40 bar |
| Regulation range [bar] Pe [Min] | 5 bar |
| Regulation range [MPa] Pe [Max] | 4 MPa |
| Regulation range [MPa] Pe [Min] | 0.5 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 3641-1CB04 |
| Type | MBC 5000 |
| UL approval file name | E31024 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -10 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | 14 °F |
| Approval | CCC, CE, EAC, LLC CDC EURO-TYSK, LVD, RoHS, RoHS China |
| Burst pressure [bar] | 300 bar |
| Contact function | SPDT |
| Contact rating | 120/250Vac, 1,16 A Pilot duty, 120/250Vac, 6A resistive, 120/250Vac,2,9FLA,17,4LRA |
| Diff.@Max. range setting [bar] | 8.2 bar |
| Diff.@Min. range setting [bar] | 2.27 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| Equipment | |
| Max. test pressure [bar] Pe | 75 bar |
| Max. test pressure [psig] | 1088 psig |
| Max. Working Pressure [bar] | 75 bar |
| Max. Working Pressure [psig] | 1088 psig |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Pressure sensing element | Diaphragm |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | MBC |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 40 bar |
| Regulation range [bar] Pe [Min] | 5 bar |
| Regulation range [MPa] Pe [Max] | 4 MPa |
| Regulation range [MPa] Pe [Min] | 0.5 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 3641-1CB04 |
| Type | MBC 5000 |
| UL approval file name | E31024 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 061B301666
Основные характеристики
- Ambient temperature range [°C] [Max]
- 60 °C
- Ambient temperature range [°C] [Min]
- -10 °C
- Ambient temperature range [°F] [Max]
- 140 °F
- Ambient temperature range [°F] [Min]
- 14 °F
- Approval
- CCCCEEACLLC CDC EURO-TYSKLVDRoHSRoHS China
- Burst pressure [bar]
- 300 bar
- Contact function
- SPDT
- Contact rating
- 120/250Vac, 1,16 A Pilot duty120/250Vac, 6A resistive120/250Vac,2,9FLA,17,4LRA
- Diff.@Max. range setting [bar]
- 8.2 bar
- Diff.@Min. range setting [bar]
- 2.27 bar
- EAN
- 5702428833592
- Electrical conn. Male/Female
- Female
- Electrical connection
- DIN-plug
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- Gross weight
- 0.31 kg
- Max. test pressure [bar] Pe
- 75 bar
- Max. test pressure [psig]
- 1088 psig
- Max. Working Pressure [bar]
- 75 bar
- Max. Working Pressure [psig]
- 1088 psig
- Net weight
- 0.21 kg
- Packing format
- Multi pack
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure range category
- High pressure
- Pressure sensing element
- Diaphragm
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product family name
- MBC
- Product group
- Switches and thermostats
- Product name
- Pressure switch
- Quantity per packing format
- 32 pc
- Regulation range [bar] Pe [Max]
- 40 bar
- Regulation range [bar] Pe [Min]
- 5 bar
- Regulation range [MPa] Pe [Max]
- 4 MPa
- Regulation range [MPa] Pe [Min]
- 0.5 MPa
- Reset function
- Auto
- Serviceable
- No
- Specification key
- 3641-1CB04
- TYPE
- MBC 5000
- UL approval file name
- E31024
