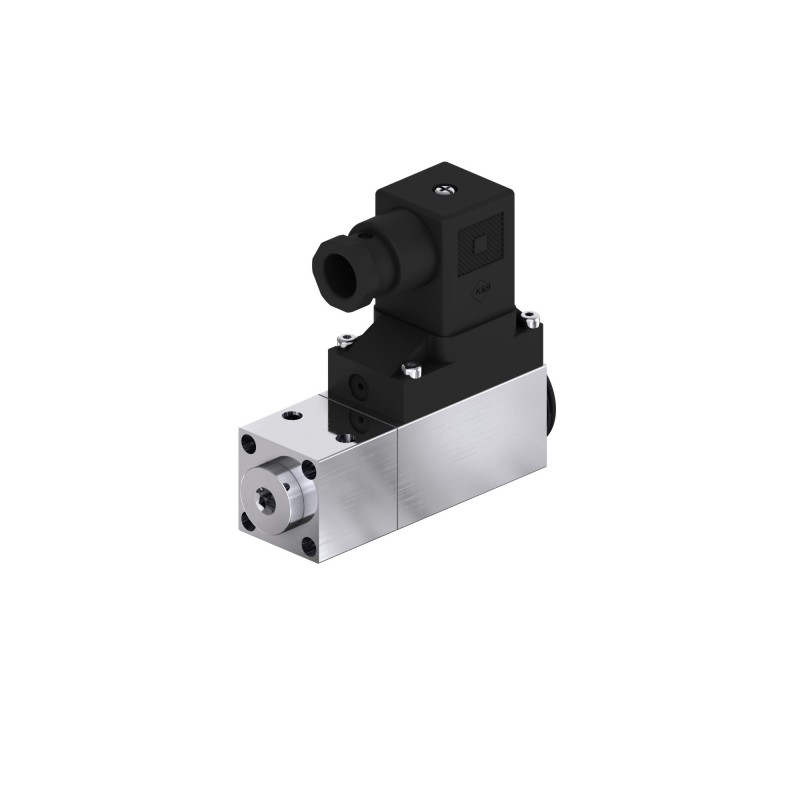

Danfoss 061B510466 - Pressure switch, MBC 5100
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 061B510466 - Pressure switch, MBC 5100
Regulation range [bar] Pe: 16.00 - 160.00, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 600.0
Информация о продукте
| Gross weight | 0.32 kg |
| Net weight | 0.27 kg |
| EAN | 5702423217144 |
| Gross weight | 0.32 kg |
| Net weight | 0.27 kg |
| EAN | 5702423217144 |
| Alarm Signal | Rising |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, NKK, RINA, RMRS, CMIM, LLC CDC EURO-TYSK |
| Burst pressure [bar] | 1200 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 30 bar |
| Diff.@Min. range setting [bar] | 15 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | |
| Factory setting [bar] | 120 bar |
| Factory setting [MPa] | 12 MPa |
| Max. test pressure [bar] Pe | 600 bar |
| Max. test pressure [psig] | 8702 psig |
| Max. Working Pressure [bar] | 600 bar |
| Max. Working Pressure [psig] | 8700 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Pressure sensing element | Piston |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | MBC |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 160 bar |
| Regulation range [bar] Pe [Min] | 16 bar |
| Regulation range [MPa] Pe [Max] | 16 MPa |
| Regulation range [MPa] Pe [Min] | 1.6 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 5251-1DB04 |
| Type | MBC 5100 |
| Alarm Signal | Rising |
| Ambient temperature range [°C] [Max] | 85 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 185 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, NKK, RINA, RMRS, CMIM, LLC CDC EURO-TYSK |
| Burst pressure [bar] | 1200 bar |
| Contact function | SPDT |
| Contact rating | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Diff.@Max. range setting [bar] | 30 bar |
| Diff.@Min. range setting [bar] | 15 bar |
| Electrical conn. Male/Female | Female |
| Electrical connection | DIN-plug |
| Electrical connection size | Pg 11 |
| Electrical connection standard | EN 175301-803-A |
| Electrical spec. standard | EN 60947-5 |
| Enclosure rating IP | IP65 |
| Equipment | |
| Factory setting [bar] | 120 bar |
| Factory setting [MPa] | 12 MPa |
| Max. test pressure [bar] Pe | 600 bar |
| Max. test pressure [psig] | 8702 psig |
| Max. Working Pressure [bar] | 600 bar |
| Max. Working Pressure [psig] | 8700 psig |
| Packing format | Multi pack |
| Pressure connection notes | With flange |
| Pressure connection size | 1/4 |
| Pressure connection standard | ISO 228-1 |
| Pressure connection type | G |
| Pressure Male/Female | Female |
| Pressure range category | High pressure |
| Pressure sensing element | Piston |
| Product accessories | Switches accessories |
| Product description | Pressure Switch |
| Product family name | MBC |
| Product group | Switches and thermostats |
| Product name | Pressure switch |
| Quantity per packing format | 32 pc |
| Regulation range [bar] Pe [Max] | 160 bar |
| Regulation range [bar] Pe [Min] | 16 bar |
| Regulation range [MPa] Pe [Max] | 16 MPa |
| Regulation range [MPa] Pe [Min] | 1.6 MPa |
| Reset function | Auto |
| Serviceable | No |
| Specification key | 5251-1DB04 |
| Type | MBC 5100 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 061B510466
Основные характеристики
- Alarm Signal
- Rising
- Ambient temperature range [°C] [Max]
- 85 °C
- Ambient temperature range [°C] [Min]
- -40 °C
- Ambient temperature range [°F] [Max]
- 185 °F
- Ambient temperature range [°F] [Min]
- -40 °F
- Approval
- ABSBVCCCCCSCEDNVEACGLKRSLRNKKRINARMRSCMIMLLC CDC EURO-TYSK
- Burst pressure [bar]
- 1200 bar
- Contact function
- SPDT
- Contact rating
- AC15=0.5 A, 250 VDC13=12 W, 125 V
- Diff.@Max. range setting [bar]
- 30 bar
- Diff.@Min. range setting [bar]
- 15 bar
- EAN
- 5702423217144
- Electrical conn. Male/Female
- Female
- Electrical connection
- DIN-plug
- Electrical connection size
- Pg 11
- Electrical connection standard
- EN 175301-803-A
- Electrical spec. standard
- EN 60947-5
- Enclosure rating IP
- IP65
- Factory setting [bar]
- 120 bar
- Factory setting [MPa]
- 12 MPa
- Gross weight
- 0.32 kg
- Max. test pressure [bar] Pe
- 600 bar
- Max. test pressure [psig]
- 8702 psig
- Max. Working Pressure [bar]
- 600 bar
- Max. Working Pressure [psig]
- 8700 psig
- Net weight
- 0.27 kg
- Packing format
- Multi pack
- Pressure connection notes
- With flange
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 228-1
- Pressure connection type
- G
- Pressure Male/Female
- Female
- Pressure range category
- High pressure
- Pressure sensing element
- Piston
- Product accessories
- Switches accessories
- Product description
- Pressure Switch
- Product family name
- MBC
- Product group
- Switches and thermostats
- Product name
- Pressure switch
- Quantity per packing format
- 32 pc
- Regulation range [bar] Pe [Max]
- 160 bar
- Regulation range [bar] Pe [Min]
- 16 bar
- Regulation range [MPa] Pe [Max]
- 16 MPa
- Regulation range [MPa] Pe [Min]
- 1.6 MPa
- Reset function
- Auto
- Serviceable
- No
- Specification key
- 5251-1DB04
- TYPE
- MBC 5100
