Артикул: 064G1204
В наличии

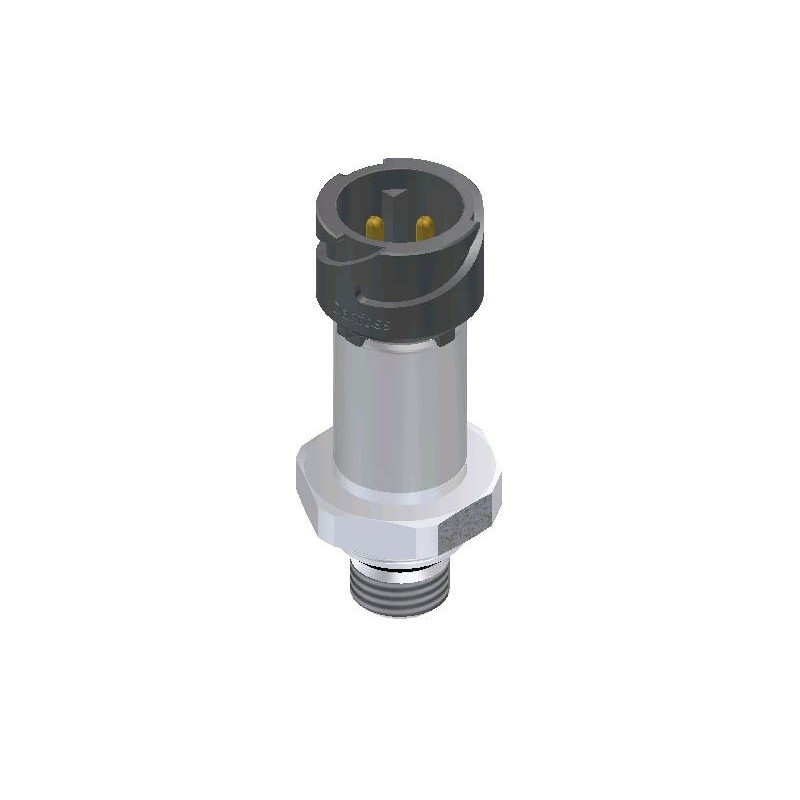

Danfoss 064G1204 - Pressure transmitter, MBS 8200, 0.00 bar - 10.00 bar, 0.00 psi - 145.03 psi
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 064G1204 - Pressure transmitter, MBS 8200, 0.00 bar - 10.00 bar, 0.00 psi - 145.03 psi
Pressure unit reference: Absolute, Electrical connection: M12, Pressure connection type: M, Pressure connection size: 14 x 1.5
Информация о продукте
| Gross weight | 0.08 kg |
| Net weight | 0.07 kg |
| EAN | 5702428539463 |
| Gross weight | 0.08 kg |
| Net weight | 0.07 kg |
| EAN | 5702428539463 |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy @ ref. temp. ±FS [%] | 1.5 % |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 125 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 257 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Compensated temp. range [°C] [Max] | 85 °C |
| Compensated temp. range [°C] [Min] | 10 °C |
| Compensated temp. range [°F] [Max] | 185 °F |
| Compensated temp. range [°F] [Min] | 50 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| Fault Monitoring Demand | Yes |
| Flush diaphragm | No |
| Intrinsically safe | No |
| Medium temperature range [°C] [Max] | 125 °C |
| Medium temperature range [°C] [Min] | -20 °C |
| Medium temperature range [°F] [Max] | 257 °F |
| Medium temperature range [°F] [Min] | -4 °F |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Overload pressure max. [bar] | 113.7 bar |
| Overload pressure max. [psi] | 1650 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 14 x 1.5 |
| Pressure connection standard | ISO 6149-2 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 10 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 145.03 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Absolute |
| Product family name | MBS |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 24 pc |
| Ratiometric of Vsupply [%] [Max] | 90 % |
| Ratiometric of Vsupply [%] [Min] | 10 % |
| Reference temperature [°C] | 25 °C |
| Reference temperature [°F] | 77 °F |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 8200-2026-C1FA08-1 |
| Supply voltage [V] DC [Max] | 5.25 V |
| Supply voltage [V] DC [Min] | 4.75 V |
| TEB inside CTR ±FS [%] | 1.5 % |
| TEB inside HTR ±FS [%] | 3 % |
| TEB inside LTR ±FS [%] | 3 % |
| Type | MBS 8200 |
| + output | Pin 2 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Accuracy @ ref. temp. ±FS [%] | 1.5 % |
| Accuracy, max. +/- FS [%] | 1 % |
| Accuracy, typical +/- FS [%] | 0.5 % |
| Adj. zero point and span | No |
| Ambient temperature range [°C] [Max] | 125 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 257 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Compensated temp. range [°C] [Max] | 85 °C |
| Compensated temp. range [°C] [Min] | 10 °C |
| Compensated temp. range [°F] [Max] | 185 °F |
| Compensated temp. range [°F] [Min] | 50 °F |
| Electrical conn. Male/Female | Male |
| Electrical connection | M12 |
| Electrical connection standard | EN 60947-5-2 |
| Enclosure rating IP | IP67 |
| Fault Monitoring Demand | Yes |
| Flush diaphragm | No |
| Intrinsically safe | No |
| Medium temperature range [°C] [Max] | 125 °C |
| Medium temperature range [°C] [Min] | -20 °C |
| Medium temperature range [°F] [Max] | 257 °F |
| Medium temperature range [°F] [Min] | -4 °F |
| Non-linearity BFSL ±FS [%] | 0.2 % |
| Overload pressure max. [bar] | 113.7 bar |
| Overload pressure max. [psi] | 1650 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 14 x 1.5 |
| Pressure connection standard | ISO 6149-2 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure range [bar] [Max] | 10 bar |
| Pressure range [bar] [Min] | 0 bar |
| Pressure range [psi] [Max] | 145.03 psi |
| Pressure range [psi] [Min] | 0 psi |
| Pressure unit reference | Absolute |
| Product family name | MBS |
| Product group | Sensors |
| Product name | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 24 pc |
| Ratiometric of Vsupply [%] [Max] | 90 % |
| Ratiometric of Vsupply [%] [Min] | 10 % |
| Reference temperature [°C] | 25 °C |
| Reference temperature [°F] | 77 °F |
| Response time max. [ms] | 1 ms |
| Specification key | MBS 8200-2026-C1FA08-1 |
| Supply voltage [V] DC [Max] | 5.25 V |
| Supply voltage [V] DC [Min] | 4.75 V |
| TEB inside CTR ±FS [%] | 1.5 % |
| TEB inside HTR ±FS [%] | 3 % |
| TEB inside LTR ±FS [%] | 3 % |
| Type | MBS 8200 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 064G1204
Основные характеристики
- + output
- Pin 2
- + supply
- Pin 1
- - common
- Pin 3
- Accuracy @ ref. temp. ±FS [%]
- 1.5 %
- Accuracy, max. +/- FS [%]
- 1 %
- Accuracy, typical +/- FS [%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [Max]
- 125 °C
- Ambient temperature range [°C] [Min]
- -40 °C
- Ambient temperature range [°F] [Max]
- 257 °F
- Ambient temperature range [°F] [Min]
- -40 °F
- Compensated temp. range [°C] [Max]
- 85 °C
- Compensated temp. range [°C] [Min]
- 10 °C
- Compensated temp. range [°F] [Max]
- 185 °F
- Compensated temp. range [°F] [Min]
- 50 °F
- EAN
- 5702428539463
- Electrical conn. Male/Female
- Male
- Electrical connection
- M12
- Electrical connection standard
- EN 60947-5-2
- Enclosure rating IP
- IP67
- Fault Monitoring Demand
- Yes
- Flush diaphragm
- No
- Gross weight
- 0.08 kg
- Intrinsically safe
- No
- Medium temperature range [°C] [Max]
- 125 °C
- Medium temperature range [°C] [Min]
- -20 °C
- Medium temperature range [°F] [Max]
- 257 °F
- Medium temperature range [°F] [Min]
- -4 °F
- Net weight
- 0.07 kg
- Non-linearity BFSL ±FS [%]
- 0.2 %
- Overload pressure max. [bar]
- 113.7 bar
- Overload pressure max. [psi]
- 1650 psi
- Packing format
- Multi pack
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 14 x 1.5
- Pressure connection standard
- ISO 6149-2
- Pressure connection type
- M
- Pressure Male/Female
- Male
- Pressure range [bar] [Max]
- 10 bar
- Pressure range [bar] [Min]
- 0 bar
- Pressure range [psi] [Max]
- 145.03 psi
- Pressure range [psi] [Min]
- 0 psi
- Pressure unit reference
- Absolute
- Product family name
- MBS
- Product group
- Sensors
- Product name
- Pressure transmitter
- Pulse-snubber
- No
- Quantity per packing format
- 24 pc
- Ratiometric of Vsupply [%] [Max]
- 90 %
- Ratiometric of Vsupply [%] [Min]
- 10 %
- Reference temperature [°C]
- 25 °C
- Reference temperature [°F]
- 77 °F
- Response time max. [ms]
- 1 ms
- Specification key
- MBS 8200-2026-C1FA08-1
- Supply voltage [V] DC [Max]
- 5.25 V
- Supply voltage [V] DC [Min]
- 4.75 V
- TEB inside CTR ±FS [%]
- 1.5 %
- TEB inside HTR ±FS [%]
- 3 %
- TEB inside LTR ±FS [%]
- 3 %
- TYPE
- MBS 8200
