Артикул: 065H7665
В наличии

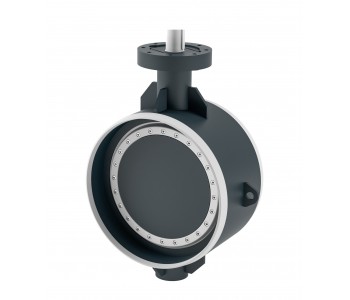

Danfoss 065H7665 - Butterfly valves, SBFV-WW-GF, Gear Flange, Welded
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 065H7665 - Butterfly valves, SBFV-WW-GF, Gear Flange, Welded
SBFV-WW GF PN25/dp16 DN900
Информация о продукте
| Gross weight | 942 kg |
| Net weight | 942 kg |
| EAN | 5702428936217 |
| Gross weight | 942 kg |
| Net weight | 942 kg |
| EAN | 5702428936217 |
| Ambient temperature [°C] [Max] | 240 °C |
| Ambient temperature [°C] [Min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 10204 3.1, N 12266 P10-P11-P12 & F20 |
| Body material | Carbon Steel EN 10028-2 P265 GH |
| Cone /seat sealing material | Stainless steel + PTFE |
| Connection types | Welded |
| Description | SBFV-WW GF PN25/dp16 DN900 |
| Diameter [mm] | 900 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| Differential pressure range [bar] [Min] | 0 bar |
| Function | On/off |
| Gear flange type | F35 |
| Height to top of stem [mm] | 915 mm |
| Kvs values [m³/h] | 40000 m³/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Media pH [Max] | 9 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 240 °C |
| Media temperature [°C] [Min] | -20 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operating torque [Nm] | 15200 Nm |
| Operation type | Gear Flange |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 25 bar |
| Product group | Butterfly valves |
| Rotation angle [°] | 90 ° |
| Stem sealing material | PTFE/Graphite/Stainless steel/EPDM HT/Viton |
| Storage temperature [°C] [Min] | -40 °C |
| Type | SBFV-WW-GF |
| Valve body material | Carbon Steel EN 10028-2 P265 GH |
| Valve disc material | Carbon Steel EN 10028-2 P265 GH |
| Valve stem material | Stainless Steel X17CrNi16-2 |
| Welding ends material | Carbon Steel EN 10028-2 P265 GH |
| Ambient temperature [°C] [Max] | 240 °C |
| Ambient temperature [°C] [Min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 10204 3.1, N 12266 P10-P11-P12 & F20 |
| Body material | Carbon Steel EN 10028-2 P265 GH |
| Cone /seat sealing material | Stainless steel + PTFE |
| Connection types | Welded |
| Description | SBFV-WW GF PN25/dp16 DN900 |
| Diameter [mm] | 900 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| Differential pressure range [bar] [Min] | 0 bar |
| Function | On/off |
| Gear flange type | F35 |
| Height to top of stem [mm] | 915 mm |
| Kvs values [m³/h] | 40000 m³/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Media pH [Max] | 9 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 240 °C |
| Media temperature [°C] [Min] | -20 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operating torque [Nm] | 15200 Nm |
| Operation type | Gear Flange |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 25 bar |
| Product group | Butterfly valves |
| Rotation angle [°] | 90 ° |
| Stem sealing material | PTFE/Graphite/Stainless steel/EPDM HT/Viton |
| Storage temperature [°C] [Min] | -40 °C |
| Type | SBFV-WW-GF |
| Valve body material | Carbon Steel EN 10028-2 P265 GH |
| Valve disc material | Carbon Steel EN 10028-2 P265 GH |
| Valve stem material | Stainless Steel X17CrNi16-2 |
| Welding ends material | Carbon Steel EN 10028-2 P265 GH |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 065H7665
Основные характеристики
- Ambient temperature [°C] [Max]
- 240 °C
- Ambient temperature [°C] [Min]
- -40 °C
- Application
- Heating and cooling
- Approval standard
- EN 10204 3.1N 12266 P10-P11-P12 & F20
- Body material
- Carbon Steel EN 10028-2 P265 GH
- Cone /seat sealing material
- Stainless steel + PTFE
- Connection types
- Welded
- Description
- SBFV-WW GF PN25/dp16 DN900
- Diameter [mm]
- 900 mm
- Differential pressure range [bar] [Max]
- 16 bar
- Differential pressure range [bar] [Min]
- 0 bar
- EAN
- 5702428936217
- Function
- On/off
- Gear flange type
- F35
- Gross weight
- 942 kg
- Height to top of stem [mm]
- 915 mm
- Kvs values [m³/h]
- 40000 m³/h
- Leakage rate [% Kvs]
- Leakage rate A
- Media pH [Max]
- 9
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 240 °C
- Media temperature [°C] [Min]
- -20 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting orientation
- All
- Net weight
- 942 kg
- Number of ports
- 2
- Operating torque [Nm]
- 15200 Nm
- Operation type
- Gear Flange
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 25 bar
- Product group
- Butterfly valves
- Rotation angle [°]
- 90 °
- Stem sealing material
- PTFE/Graphite/Stainless steel/EPDM HT/Viton
- Storage temperature [°C] [Min]
- -40 °C
- TYPE
- SBFV-WW-GF
- Valve body material
- Carbon Steel EN 10028-2 P265 GH
- Valve disc material
- Carbon Steel EN 10028-2 P265 GH
- Valve stem material
- Stainless Steel X17CrNi16-2
- Welding ends material
- Carbon Steel EN 10028-2 P265 GH
