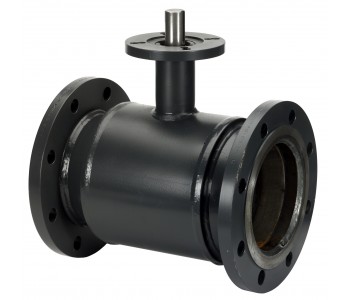

Danfoss 065N0357 - Ball valves, JIP-FF, RB, Gear flange, Reduced Bore, Flange
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 065N0357 - Ball valves, JIP-FF, RB, Gear flange, Reduced Bore, Flange
JIP-FF DN200 PN25 GF L600
Информация о продукте
| Gross weight | 91.5 kg |
| Net weight | 78 kg |
| EAN | 5702421650660 |
| Gross weight | 91.5 kg |
| Net weight | 78 kg |
| EAN | 5702421650660 |
| Ambient temperature [°C] [Min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20, PED Directive 97/23/EEC Modul H1 |
| Body material | Weldable steel #20 or similar CE PED approved material |
| Cone /seat sealing material | PTFE+C |
| Connection types | Flange |
| Description | JIP-FF DN200 PN25 GF L600 |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 25 bar |
| Flanges material | EN1092-Weldable steel #20 or similar CE PED approved material |
| Function | On/off |
| Gear flange type | F10/F12 |
| Height to top of stem [mm] | 466 mm |
| Kvs values [m³/h] | 2300 m³/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Length [mm] | 600 mm |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 180 °C |
| Media temperature [°C] [Min] | 0 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operation type | Gear Flange |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 25 bar |
| Product group | Ball valves |
| Rotation angle [°] | 90 ° |
| Stem sealing material | PTFE/Graphite |
| Storage temperature [°C] [Min] | -40 °C |
| Type | JIP-FF, RB, Gear flange |
| Valve ball material | Stainless steel |
| Valve body material | Weldable steel #20 or similar CE PED approved material |
| Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type | Reduced Bore |
| Welding ends material | Weldable steel #20 or similar CE PED approved material |
| Ambient temperature [°C] [Min] | -40 °C |
| Application | Heating and cooling |
| Approval standard | EN 12266 part 1 P10-P11-P12 & part 2 F20, PED Directive 97/23/EEC Modul H1 |
| Body material | Weldable steel #20 or similar CE PED approved material |
| Cone /seat sealing material | PTFE+C |
| Connection types | Flange |
| Description | JIP-FF DN200 PN25 GF L600 |
| Diameter [mm] | 200 mm |
| Differential pressure range [bar] [Max] | 25 bar |
| Flanges material | EN1092-Weldable steel #20 or similar CE PED approved material |
| Function | On/off |
| Gear flange type | F10/F12 |
| Height to top of stem [mm] | 466 mm |
| Kvs values [m³/h] | 2300 m³/h |
| Leakage rate [% Kvs] | Leakage rate A |
| Length [mm] | 600 mm |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 180 °C |
| Media temperature [°C] [Min] | 0 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting orientation | All |
| Number of ports | 2 |
| Operation type | Gear Flange |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 25 bar |
| Product group | Ball valves |
| Rotation angle [°] | 90 ° |
| Stem sealing material | PTFE/Graphite |
| Storage temperature [°C] [Min] | -40 °C |
| Type | JIP-FF, RB, Gear flange |
| Valve ball material | Stainless steel |
| Valve body material | Weldable steel #20 or similar CE PED approved material |
| Valve stem material | Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306 |
| Valve type | Reduced Bore |
| Welding ends material | Weldable steel #20 or similar CE PED approved material |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 065N0357
Основные характеристики
- Ambient temperature [°C] [Min]
- -40 °C
- Application
- Heating and cooling
- Approval standard
- EN 12266 part 1 P10-P11-P12 & part 2 F20PED Directive 97/23/EEC Modul H1
- Body material
- Weldable steel #20 or similar CE PED approved material
- Cone /seat sealing material
- PTFE+C
- Connection types
- Flange
- Description
- JIP-FF DN200 PN25 GF L600
- Diameter [mm]
- 200 mm
- Differential pressure range [bar] [Max]
- 25 bar
- EAN
- 5702421650660
- Flanges material
- EN1092-Weldable steel #20 or similar CE PED approved material
- Function
- On/off
- Gear flange type
- F10/F12
- Gross weight
- 91.5 kg
- Height to top of stem [mm]
- 466 mm
- Kvs values [m³/h]
- 2300 m³/h
- Leakage rate [% Kvs]
- Leakage rate A
- Length [mm]
- 600 mm
- Media pH [Max]
- 10
- Media pH [Min]
- 7
- Media temperature [°C] [Max]
- 180 °C
- Media temperature [°C] [Min]
- 0 °C
- Medium alternative
- Glycolic water up to 50%
- Mounting orientation
- All
- Net weight
- 78 kg
- Number of ports
- 2
- Operation type
- Gear Flange
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 25 bar
- Product group
- Ball valves
- Rotation angle [°]
- 90 °
- Stem sealing material
- PTFE/Graphite
- Storage temperature [°C] [Min]
- -40 °C
- TYPE
- JIP-FF, RB, Gear flange
- Valve ball material
- Stainless steel
- Valve body material
- Weldable steel #20 or similar CE PED approved material
- Valve stem material
- Stainless steel e.g. X2CrNi19-11 (EN10272) / Mat. no. 1.4306
- Valve type
- Reduced Bore
- Welding ends material
- Weldable steel #20 or similar CE PED approved material
