Артикул: 082G3017
В наличии

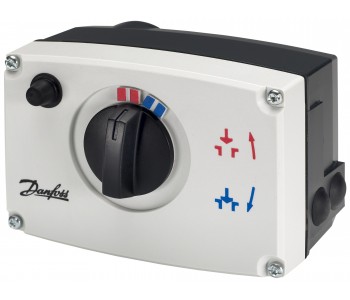

Danfoss 082G3017 - Electrical actuators, AME 30, 24 V
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 082G3017 - Electrical actuators, AME 30, 24 V
AME 30 24V 3s/mm 10mm 450N
Информация о продукте
| Gross weight | 1.69 kg |
| Net weight | 1.65 kg |
| EAN | 5702421510650 |
| Gross weight | 1.69 kg |
| Net weight | 1.65 kg |
| EAN | 5702421510650 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | District Heating |
| Closing force [N] | 450 N |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 30 24V 3s/mm 10mm 450N |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Position feedback | yes |
| Power consumption [W] | 9 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 0 |
| Speed type | Fast |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 10 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 s |
| Type | AME 30 |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Application | District Heating |
| Closing force [N] | 450 N |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 24 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 30 24V 3s/mm 10mm 450N |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Position feedback | yes |
| Power consumption [W] | 9 W |
| Product group | Electrical actuators |
| Protection class | II |
| Safety function | 0 |
| Speed type | Fast |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 10 mm |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 0 s |
| Type | AME 30 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 082G3017
Основные характеристики
- Actuator speed [s/mm]
- 3 s/mm
- Actuator type
- Electrical
- Ambient temperature [°C] [Max]
- 55 °C
- Ambient temperature [°C] [Min]
- 0 °C
- Application
- District Heating
- Closing force [N]
- 450 N
- Control input signal Y [mA]
- 0(4) - 20 mA
- Control input signal Y [mA], impedance [Ohm]
- 500 Ohm
- Control input signal Y [V]
- 0(2) - 10 V
- Control input signal Y [V], impedance [kOhm]
- 24 kOhm
- Control signal type
- Modulating/3-point
- Description
- AME 30 24V 3s/mm 10mm 450N
- EAN
- 5702421510650
- Grade of enclosure
- IP54
- Gross weight
- 1.69 kg
- Manual operation
- Yes
- Net weight
- 1.65 kg
- Position feedback
- yes
- Power consumption [W]
- 9 W
- Product group
- Electrical actuators
- Protection class
- II
- Speed type
- Fast
- Spring down (return)
- No
- Spring up
- No
- Storage temperature [°C] [Max]
- 70 °C
- Storage temperature [°C] [Min]
- -40 °C
- Stroke [mm]
- 10 mm
- Supply voltage [V] AC
- 24 V
- Turn time per 90° [s]
- 0 s
- TYPE
- AME 30
