Артикул: 084Z2142
В наличии

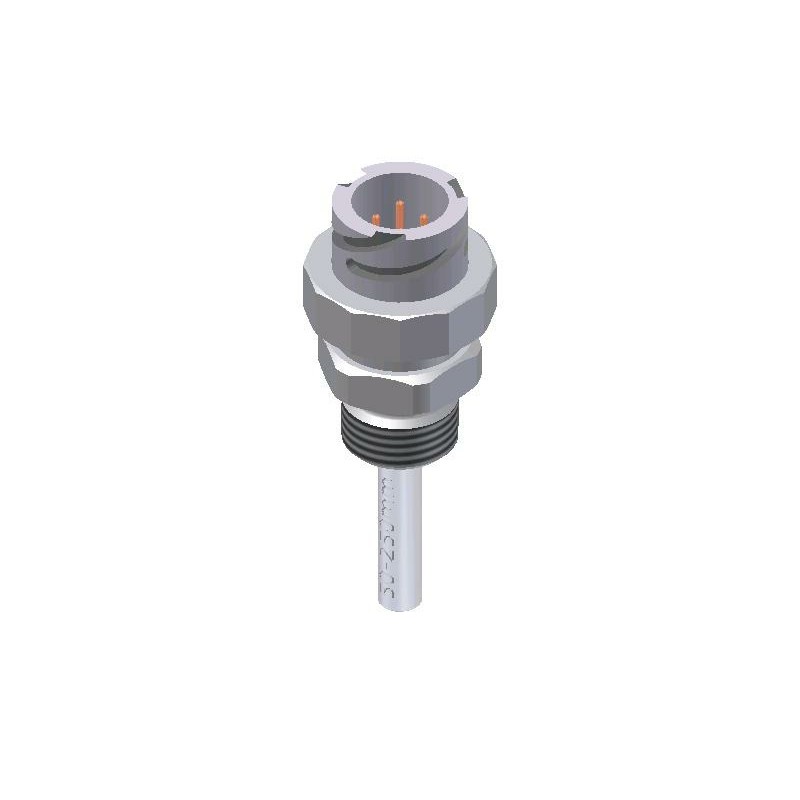

Danfoss 084Z2142 - Temperature sensor, MBT 5250, 50 mm
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 084Z2142 - Temperature sensor, MBT 5250, 50 mm
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: ITT Cannon, Electrical connection size: 4 pin
Информация о продукте
| Gross weight | 0.14 kg |
| Net weight | 0.14 kg |
| EAN | 5702428438209 |
| Gross weight | 0.14 kg |
| Net weight | 0.14 kg |
| EAN | 5702428438209 |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Connection material | Stainless steel |
| Connection type | G |
| Electrical conn. comments | 4 pin |
| Electrical connection | ITT Cannon |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP65 |
| Insertion length [in] | 1.97 in |
| Insertion length [mm] | 50 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 3 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Process Connections | G1/2 , ISO 228-1-A |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 20 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 2 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 5250 |
| Type designation | MBT 5250-0200-050-820 |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Connection material | Stainless steel |
| Connection type | G |
| Electrical conn. comments | 4 pin |
| Electrical connection | ITT Cannon |
| Electrical connection size | 4 pin |
| Enclosure rating IP | IP65 |
| Insertion length [in] | 1.97 in |
| Insertion length [mm] | 50 mm |
| Insertion type | Fixed |
| Number of terminals [pcs] | 3 pc |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process connection size | 1/2 |
| Process connection standard | ISO 228-1-A |
| Process connection type | G |
| Process Connections | G1/2 , ISO 228-1-A |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.31 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 Ti |
| Quantity per packing format | 20 pc |
| Sensor elem. resistance [Ohm] | 100 Ohm |
| Sensor element [pc] | 2 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | Exchangeable |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 5250 |
| Type designation | MBT 5250-0200-050-820 |
| Wires [pcs] | 2 pc |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 084Z2142
Основные характеристики
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Connection material
- Stainless steel
- Connection type
- G
- EAN
- 5702428438209
- Electrical conn. comments
- 4 pin
- Electrical connection
- ITT Cannon
- Electrical connection size
- 4 pin
- Enclosure rating IP
- IP65
- Gross weight
- 0.14 kg
- Insertion length [in]
- 1.97 in
- Insertion length [mm]
- 50 mm
- Insertion type
- Fixed
- Net weight
- 0.14 kg
- Number of terminals [pcs]
- 3 pc
- Output signal
- Ohm
- Packing format
- Multi pack
- Process connection Male/Female
- Male
- Process connection material
- Stainless steel
- Process connection size
- 1/2
- Process connection standard
- ISO 228-1-A
- Process connection type
- G
- Process Connections
- G1/2 , ISO 228-1-A
- Product group
- Sensors
- Product name
- Temperature sensor
- Protection tube diameter [in]
- 0.31 in
- Protection tube diameter [mm]
- 8 mm
- Protection tube material
- AISI 316 Ti
- Quantity per packing format
- 20 pc
- Sensor elem. resistance [Ohm]
- 100 Ohm
- Sensor element standard
- EN 60751
- Sensor element tolerance
- Class B
- Sensor element type
- Pt
- Sensor element [pc]
- 2 pc
- Sensor Insert
- Exchangeable
- Temperature range [°C] [Max]
- 200 °C
- Temperature range [°C] [Min]
- -50 °C
- Temperature range [°F] [Max]
- 392 °F
- Temperature range [°F] [Min]
- -58 °F
- TYPE
- MBT 5250
- Type designation
- MBT 5250-0200-050-820
- Wires [pcs]
- 2 pc
