Артикул: 084Z7248
В наличии

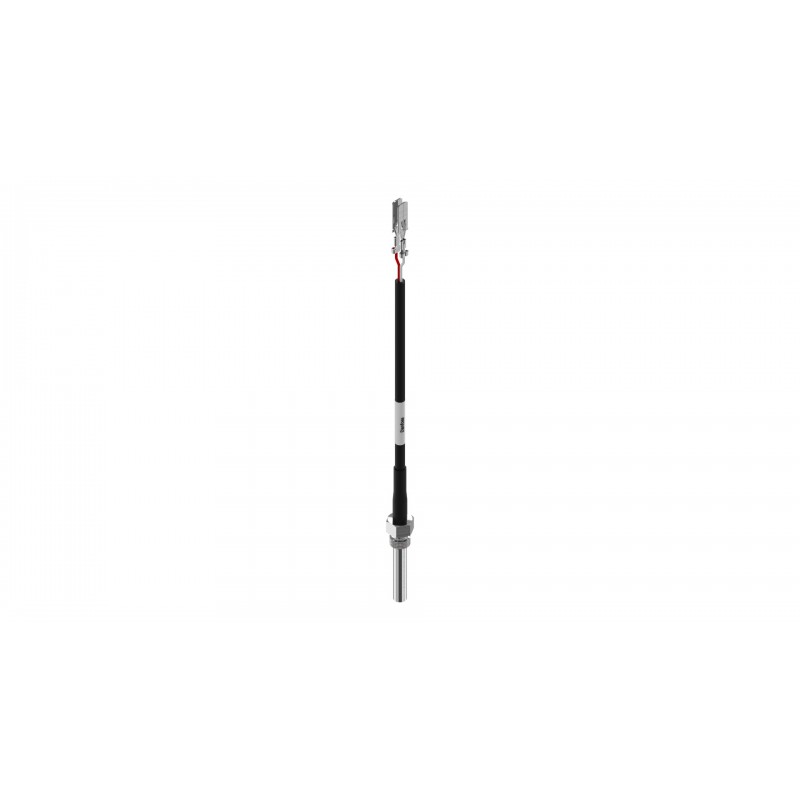

Danfoss 084Z7248 - Temperature sensor, MBT 3270, 40 mm
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 084Z7248 - Temperature sensor, MBT 3270, 40 mm
Temperature range [°C]: -50 - 150, Sensor element type: PTC, Sensor elem. resistance [Ohm]: 180, Protection tube material: Brass, Electrical connection: Spade terminal 6.3 x 0.8 mm, Electrical connection size: 2 wire
Информация о продукте
| Gross weight | 0.02 kg |
| Net weight | 0.02 kg |
| EAN | 5702423200542 |
| Gross weight | 0.02 kg |
| Net weight | 0.02 kg |
| EAN | 5702423200542 |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Cable length [in] | 2.36 in |
| Cable length [m] | 0.06 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| Connection material | Brass |
| Connection type | M |
| Electrical connection | Spade terminal 6.3 x 0.8 mm |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP54 |
| Insertion length [in] | 1.57 in |
| Insertion length [mm] | 40 mm |
| Insertion type | Fixed |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Brass |
| Process connection size | 10x1.5 |
| Process connection standard | ISO 965 |
| Process connection type | M |
| Process Connections | M10x1.5 , ISO 965 |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.26 in |
| Protection tube diameter [mm] | 6.5 mm |
| Protection tube material | Brass |
| Quantity per packing format | 20 pc |
| Sensor elem. resistance [Ohm] | 180 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 5 °C |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 3270 |
| Type designation | MBT 3270-0G500-040-80101-008 |
| Wires [pcs] | 2 pc |
| Ambient temperature max. [°C] | 125 °C |
| Ambient temperature max. [°F] | 257 °F |
| Cable length [in] | 2.36 in |
| Cable length [m] | 0.06 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable tempr. range [°F] [Max] | 392 °F |
| Cable tempr. range [°F] [Min] | -76 °F |
| Cable type | Silicone |
| Connection material | Brass |
| Connection type | M |
| Electrical connection | Spade terminal 6.3 x 0.8 mm |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP54 |
| Insertion length [in] | 1.57 in |
| Insertion length [mm] | 40 mm |
| Insertion type | Fixed |
| Output signal | Ohm |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Brass |
| Process connection size | 10x1.5 |
| Process connection standard | ISO 965 |
| Process connection type | M |
| Process Connections | M10x1.5 , ISO 965 |
| Product group | Sensors |
| Product name | Temperature sensor |
| Protection tube diameter [in] | 0.26 in |
| Protection tube diameter [mm] | 6.5 mm |
| Protection tube material | Brass |
| Quantity per packing format | 20 pc |
| Sensor elem. resistance [Ohm] | 180 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element tolerance | ± 5 °C |
| Sensor element type | PTC |
| Sensor Insert | Fixed |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 302 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | MBT 3270 |
| Type designation | MBT 3270-0G500-040-80101-008 |
| Wires [pcs] | 2 pc |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 084Z7248
Основные характеристики
- Ambient temperature max. [°C]
- 125 °C
- Ambient temperature max. [°F]
- 257 °F
- Cable length [in]
- 2.36 in
- Cable length [m]
- 0.06 m
- Cable tempr. range [°C] [Max]
- 200 °C
- Cable tempr. range [°C] [Min]
- -60 °C
- Cable tempr. range [°F] [Max]
- 392 °F
- Cable tempr. range [°F] [Min]
- -76 °F
- Cable type
- Silicone
- Connection material
- Brass
- Connection type
- M
- EAN
- 5702423200542
- Electrical connection
- Spade terminal 6.3 x 0.8 mm
- Electrical connection size
- 2 wire
- Enclosure rating IP
- IP54
- Gross weight
- 0.02 kg
- Insertion length [in]
- 1.57 in
- Insertion length [mm]
- 40 mm
- Insertion type
- Fixed
- Net weight
- 0.02 kg
- Output signal
- Ohm
- Packing format
- Multi pack
- Process connection Male/Female
- Male
- Process connection material
- Brass
- Process connection size
- 10x1.5
- Process connection standard
- ISO 965
- Process connection type
- M
- Process Connections
- M10x1.5 , ISO 965
- Product group
- Sensors
- Product name
- Temperature sensor
- Protection tube diameter [in]
- 0.26 in
- Protection tube diameter [mm]
- 6.5 mm
- Protection tube material
- Brass
- Quantity per packing format
- 20 pc
- Sensor elem. resistance [Ohm]
- 180 Ohm
- Sensor element tolerance
- ± 5 °C
- Sensor element type
- PTC
- Sensor element [pc]
- 1 pc
- Sensor Insert
- Fixed
- Temperature range [°C] [Max]
- 150 °C
- Temperature range [°C] [Min]
- -50 °C
- Temperature range [°F] [Max]
- 302 °F
- Temperature range [°F] [Min]
- -58 °F
- TYPE
- MBT 3270
- Type designation
- MBT 3270-0G500-040-80101-008
- Wires [pcs]
- 2 pc
