Артикул: 087N1050
В наличии
Danfoss 087N1050 - Safety Thermostats, ST-1
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

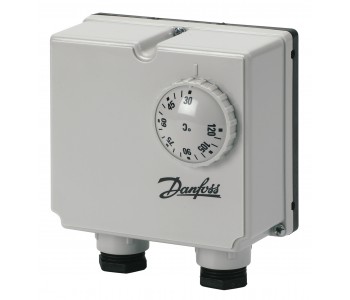

Danfoss 087N1050 - Safety Thermostats, ST-1
Safety thermostat ST-1
Информация о продукте
| Gross weight | 0.46 kg |
| Net weight | 0.46 kg |
| EAN | 5702421715000 |
| Gross weight | 0.46 kg |
| Net weight | 0.46 kg |
| EAN | 5702421715000 |
| Ambient temperature [°C] [Max] | 80 °C |
| Cable entry | Pg 20 |
| Contact inductive load [A] | 2.5 A |
| Contact ohmic load [A] | 10 A |
| Contact three-phase load [A] | 7 A |
| Contacts | Ag 1000/1000 |
| Cut-out accuracy [K] [Max] | 6 |
| Cut-out accuracy [K] [Min] | 0 |
| Description | Safety thermostat ST-1 |
| Differential STW [K] | 12 (+/- 3) |
| Differential TR [K] | 4 (+/- 1) |
| Grade of enclosure | IP40 |
| Mounting orientation | No restriction |
| Number of temperature sensors | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Safety Thermostats |
| Reset temperature difference STW | Auto |
| Reset temperature difference TR | Auto |
| Safety monitor STW setting [°C] [Max] | 120 °C |
| Safety monitor STW setting [°C] [Min] | 100 °C |
| Sensor connection | R ½ |
| Sensor pocket material | Brass Ms 58/copper |
| Sensor temperature [°C] [Max] | 130 °C |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -15 °C |
| Temperature sensor diameter [mm] | 9 mm |
| Temperature sensor length [mm] | 100 mm |
| Thermostat TR setting [°C] [Max] | 120 °C |
| Thermostat TR setting [°C] [Min] | 30 °C |
| Transport temperature [°C] [Max] | 80 °C |
| Transport temperature [°C] [Min] | -15 °C |
| Type | ST-1 |
| Ambient temperature [°C] [Max] | 80 °C |
| Cable entry | Pg 20 |
| Contact inductive load [A] | 2.5 A |
| Contact ohmic load [A] | 10 A |
| Contact three-phase load [A] | 7 A |
| Contacts | Ag 1000/1000 |
| Cut-out accuracy [K] [Max] | 6 |
| Cut-out accuracy [K] [Min] | 0 |
| Description | Safety thermostat ST-1 |
| Differential STW [K] | 12 (+/- 3) |
| Differential TR [K] | 4 (+/- 1) |
| Grade of enclosure | IP40 |
| Mounting orientation | No restriction |
| Number of temperature sensors | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 10 bar |
| Product group | Safety Thermostats |
| Reset temperature difference STW | Auto |
| Reset temperature difference TR | Auto |
| Safety monitor STW setting [°C] [Max] | 120 °C |
| Safety monitor STW setting [°C] [Min] | 100 °C |
| Sensor connection | R ½ |
| Sensor pocket material | Brass Ms 58/copper |
| Sensor temperature [°C] [Max] | 130 °C |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -15 °C |
| Temperature sensor diameter [mm] | 9 mm |
| Temperature sensor length [mm] | 100 mm |
| Thermostat TR setting [°C] [Max] | 120 °C |
| Thermostat TR setting [°C] [Min] | 30 °C |
| Transport temperature [°C] [Max] | 80 °C |
| Transport temperature [°C] [Min] | -15 °C |
| Type | ST-1 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 087N1050
Основные характеристики
- Ambient temperature [°C] [Max]
- 80 °C
- Cable entry
- Pg 20
- Contact inductive load [A]
- 2.5 A
- Contact ohmic load [A]
- 10 A
- Contact three-phase load [A]
- 7 A
- Contacts
- Ag 1000/1000
- Cut-out accuracy [K] [Max]
- 6
- Description
- Safety thermostat ST-1
- Differential STW [K]
- 12 (+/- 3)
- Differential TR [K]
- 4 (+/- 1)
- EAN
- 5702421715000
- Grade of enclosure
- IP40
- Gross weight
- 0.46 kg
- Mounting orientation
- No restriction
- Net weight
- 0.46 kg
- Number of temperature sensors
- 2
- Permissible media
- District heating/cooling circulation water
- Pressure nominal [bar]
- 10 bar
- Product group
- Safety Thermostats
- Reset temperature difference STW
- Auto
- Reset temperature difference TR
- Auto
- Safety monitor STW setting [°C] [Max]
- 120 °C
- Safety monitor STW setting [°C] [Min]
- 100 °C
- Sensor connection
- R ½
- Sensor pocket material
- Brass Ms 58/copper
- Sensor temperature [°C] [Max]
- 130 °C
- Storage temperature [°C] [Max]
- 80 °C
- Storage temperature [°C] [Min]
- -15 °C
- Temperature sensor diameter [mm]
- 9 mm
- Temperature sensor length [mm]
- 100 mm
- Thermostat TR setting [°C] [Max]
- 120 °C
- Thermostat TR setting [°C] [Min]
- 30 °C
- Transport temperature [°C] [Max]
- 80 °C
- Transport temperature [°C] [Min]
- -15 °C
- TYPE
- ST-1
