Артикул: 114N6729

В наличии

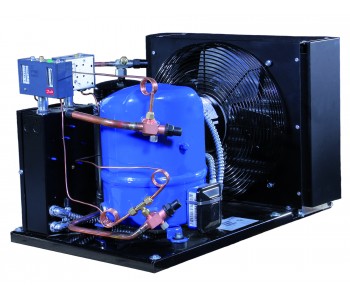

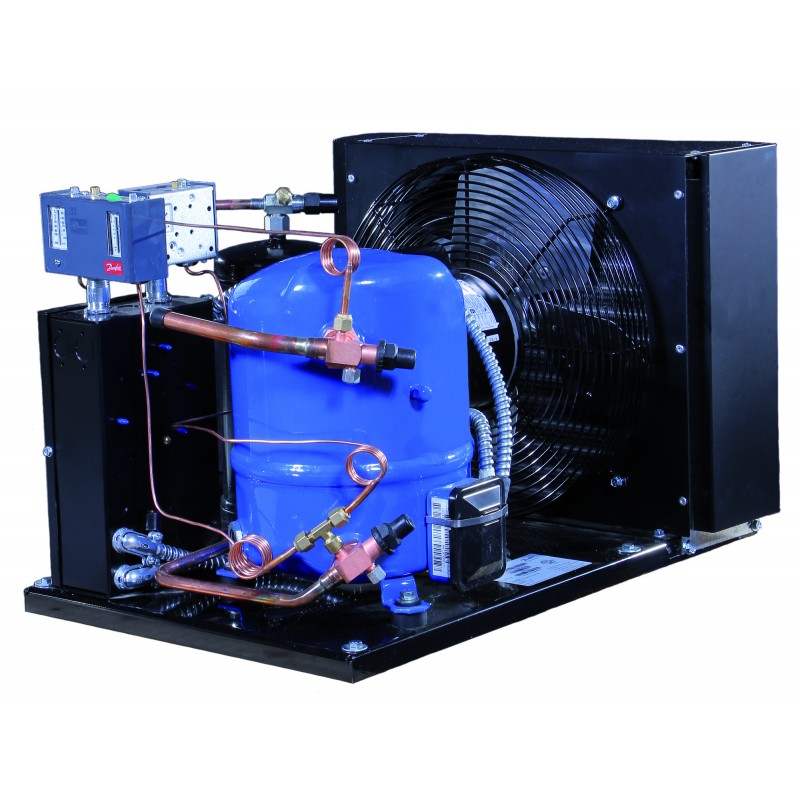

Danfoss 114N6729 - Optyma™, OP-⁠LCZC0201UWF300N

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 114N6729 - Optyma™, OP-LCZC0201UWF300N

Type designation: Condensing Units, Type: Optyma™, Model number: OP-LCZC0201UWF300N, Refrigerant: R404A, Segment usage: Low Back Pressure, Voltage 60Hz [V]: 230, No. of phases (compressor): 1

Информация о продукте

Gross weight 50.45 kg
Net weight 50.45 kg
EAN 5702428388436



Air flow @ 60Hz [m³/h] 2900 m³/h
Applications LBP
Approval C UL US LISTED
Approval file name 79S0
Approval standard UL listed
AWEF application Indoor
AWEF displayed Yes
Brand Optyma
Compressor Code no 120F0078
Compressor LRA [A] 72 A
Compressor model NTZ068-1LR1
Compressor power supply [V/Ph/Hz] 230/1/60
Compressor RLA [A] 15 A
Compressor type designation NTZ068-1LR1
Condenser type TAL 4
Description OP-LCZC0201UWF300N
Design Pressure High [bar] 23 bar
Design Pressure High [psi] 331 psi
Design Pressure Low [bar] 12 bar
Design Pressure Low [psi] 174 psi
Electrical code N
Fan blade size [mm] 356 mm
Fan Current (Condenser) [A] 1.2 A
Fan current @ 60Hz [A] 1.2 A
Fan diameter [mm] 356 mm
Fan power consumption @ 60Hz [W] 290 W
Fan power output @ 60Hz [W] 150 W
Fan power supply [V/Ph/Hz] 230/1/60
Fan Volt 60Hz Max (Cond.) [V] 230 V
Fan voltage @ 60Hz (max) [V] [Max] 230 V
Fan voltage @ 60Hz (max) [V] [Min] 230 V
Fuse size Max 35
Liquid line connection [in] 3/8 in
Max Current Ampacity [A] 20 A
MCC 20 A
Model no. LCZC0200UWF300N
Model number OP-LCZC0201UWF300N
No. of phases (compressor) 1
No. of phases (fan) 1
Number of Fan 1
Number of fans 1
Outdoor Housing E2
Phases of Compressor 1
Phases of Fan 1
Product description Condensing Unit
Quantity per packing format 1 pc
Receiver approval UL
Receiver volume [L] 4.2 L
Refrigerant R404A
Region North America
RLA 15 A
Segment usage Low Back Pressure
Suction connection size [in] 5/8 in
Suction connection size [in] [Max] 5/8 in
Technology Reciprocating
Type Optyma™
Type designation Condensing Units
Version WF
Volt 60Hz Nom Max [V] 230 V
Voltage 60Hz [V] 230 V
Wiring Diagram 119-6401

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 114N6729

Основные характеристики

Air flow @ 60Hz [m³/h]
2900 m³/h
Applications
LBP
Approval
C UL US LISTED
Approval file name
79S0
Approval standard
UL listed
AWEF application
Indoor
AWEF displayed
Yes
Brand
Optyma
Compressor Code no
120F0078
Compressor LRA [A]
72 A
Compressor model
NTZ068-1LR1
Compressor power supply [V/Ph/Hz]
230/1/60
Compressor RLA [A]
15 A
Compressor type designation
NTZ068-1LR1
Condenser type
TAL 4
Description
OP-LCZC0201UWF300N
Design Pressure High [bar]
23 bar
Design Pressure High [psi]
331 psi
Design Pressure Low [bar]
12 bar
Design Pressure Low [psi]
174 psi
EAN
5702428388436
Electrical code
N
Fan blade size [mm]
356 mm
Fan Current (Condenser) [A]
1.2 A
Fan current @ 60Hz [A]
1.2 A
Fan diameter [mm]
356 mm
Fan power consumption @ 60Hz [W]
290 W
Fan power output @ 60Hz [W]
150 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan Volt 60Hz Max (Cond.) [V]
230 V
Fan voltage @ 60Hz (max) [V] [Max]
230 V
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Fuse size Max
35
Gross weight
50.45 kg
Liquid line connection [in]
3/8 in
Max Current Ampacity [A]
20 A
MCC
20 A
Model no.
LCZC0200UWF300N
Model number
OP-LCZC0201UWF300N
Net weight
50.45 kg
No. of phases (compressor)
1
No. of phases (fan)
1
Number of Fan
1
Number of fans
1
Outdoor Housing
E2
Phases of Compressor
1
Phases of Fan
1
Product description
Condensing Unit
Quantity per packing format
1 pc
Receiver approval
UL
Receiver volume [L]
4.2 L
Refrigerant
R404A
Region
North America
RLA
15 A
Segment usage
Low Back Pressure
Suction connection size [in]
5/8 in
Suction connection size [in] [Max]
5/8 in
Technology
Reciprocating
TYPE
Optyma™
Type designation
Condensing Units
Version
WF
Volt 60Hz Nom Max [V]
230 V
Voltage 60Hz [V]
230 V
Wiring Diagram
119-6401
