Артикул: 114N6738

В наличии

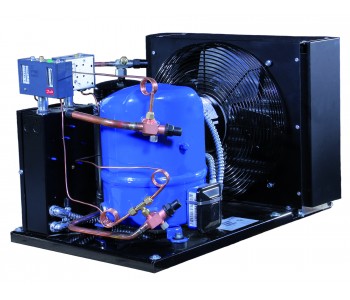

Danfoss 114N6738 - Optyma™, OP-⁠LGZC0401UWF300Q

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

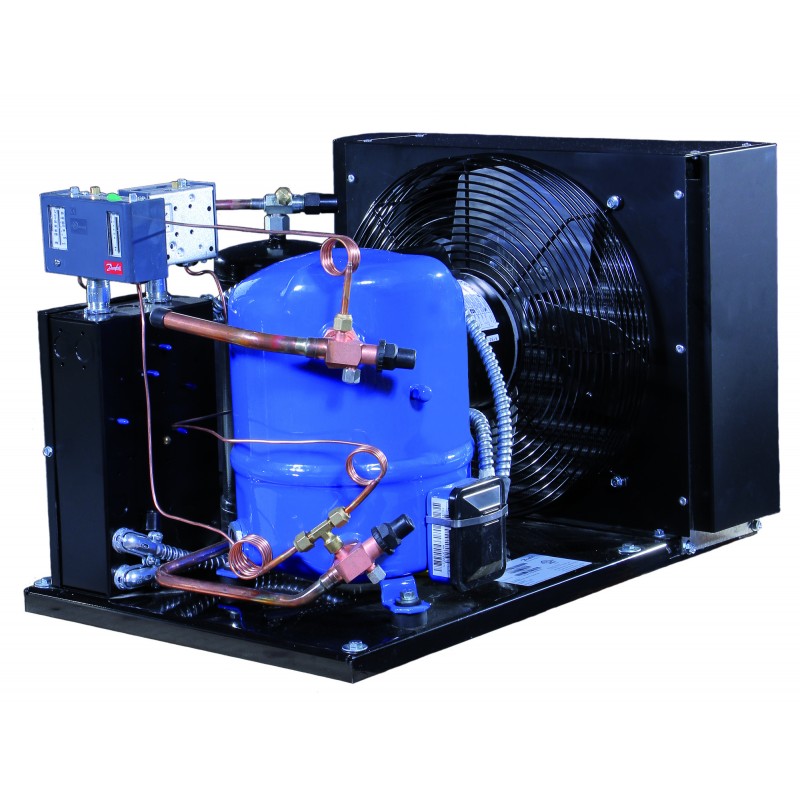

Danfoss 114N6738 - Optyma™, OP-LGZC0401UWF300Q

Type designation: Condensing Units, Type: Optyma™, Model number: OP-LGZC0401UWF300Q, Refrigerant: R404A, Segment usage: Low Back Pressure, Voltage 60Hz [V]: 230, No. of phases (compressor): 3

Информация о продукте

Gross weight 105.45 kg
Net weight 105.45 kg
EAN 5702428388368



Air flow @ 60Hz [m³/h] 5800 m³/h
Applications LBP
Approval C UL US LISTED
Approval file name 79S0
Approval standard UL listed
AWEF application Indoor
AWEF displayed Yes
Brand Optyma
Compressor Code no 120F0030
Compressor LRA [A] 97.2 A
Compressor model NTZ136-3LR1
Compressor power supply [V/Ph/Hz] 230/3/60
Compressor RLA [A] 20.7 A
Compressor type designation NTZ136A3LR1A
Condenser type H3
Description OP-LGZC0401UWF300Q
Design Pressure High [bar] 23 bar
Design Pressure High [psi] 331 psi
Design Pressure Low [bar] 12 bar
Design Pressure Low [psi] 174 psi
Electrical code Q
Fan blade size [mm] 356 mm
Fan Current (Condenser) [A] 1.2 A
Fan current @ 60Hz [A] 1.2 A
Fan diameter [mm] 356 mm
Fan power consumption @ 60Hz [W] 298 W
Fan power output @ 60Hz [W] 150 W
Fan power supply [V/Ph/Hz] 230/1/60
Fan Volt 60Hz Max (Cond.) [V] 230 V
Fan voltage @ 60Hz (max) [V] [Max] 230 V
Fan voltage @ 60Hz (max) [V] [Min] 230 V
Fuse size Max 50
Liquid line connection [in] 1/2 in
Max Current Ampacity [A] 28.3 A
MCC 28.6 A
Model no. LGZC0401UWF300Q
Model number OP-LGZC0401UWF300Q
No. of phases (compressor) 3
No. of phases (fan) 1
Number of Fan 2
Number of fans 2
Outdoor Housing E4
Phases of Compressor 3
Phases of Fan 1
Product description Condensing Unit
Quantity per packing format 1 pc
Receiver volume [L] 8 L
Refrigerant R404A
Region North America
RLA 20.7 A
Segment usage Low Back Pressure
Suction connection size [in] 7/8 in
Suction connection size [in] [Max] 7/8 in
Technology Reciprocating
Type Optyma™
Type designation Condensing Units
Version WF
Volt 60Hz Nom Max [V] 230 V
Volt 60Hz Nom Min [V] 208 V
Voltage 60Hz [V] 230 V
Wiring Diagram 119-6404

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 114N6738

Основные характеристики

Air flow @ 60Hz [m³/h]
5800 m³/h
Applications
LBP
Approval
C UL US LISTED
Approval file name
79S0
Approval standard
UL listed
AWEF application
Indoor
AWEF displayed
Yes
Brand
Optyma
Compressor Code no
120F0030
Compressor LRA [A]
97.2 A
Compressor model
NTZ136-3LR1
Compressor power supply [V/Ph/Hz]
230/3/60
Compressor RLA [A]
20.7 A
Compressor type designation
NTZ136A3LR1A
Condenser type
H3
Description
OP-LGZC0401UWF300Q
Design Pressure High [bar]
23 bar
Design Pressure High [psi]
331 psi
Design Pressure Low [bar]
12 bar
Design Pressure Low [psi]
174 psi
EAN
5702428388368
Electrical code
Q
Fan blade size [mm]
356 mm
Fan Current (Condenser) [A]
1.2 A
Fan current @ 60Hz [A]
1.2 A
Fan diameter [mm]
356 mm
Fan power consumption @ 60Hz [W]
298 W
Fan power output @ 60Hz [W]
150 W
Fan power supply [V/Ph/Hz]
230/1/60
Fan Volt 60Hz Max (Cond.) [V]
230 V
Fan voltage @ 60Hz (max) [V] [Max]
230 V
Fan voltage @ 60Hz (max) [V] [Min]
230 V
Fuse size Max
50
Gross weight
105.45 kg
Liquid line connection [in]
1/2 in
Max Current Ampacity [A]
28.3 A
MCC
28.6 A
Model no.
LGZC0401UWF300Q
Model number
OP-LGZC0401UWF300Q
Net weight
105.45 kg
No. of phases (compressor)
3
No. of phases (fan)
1
Number of Fan
2
Number of fans
2
Outdoor Housing
E4
Phases of Compressor
3
Phases of Fan
1
Product description
Condensing Unit
Quantity per packing format
1 pc
Receiver volume [L]
8 L
Refrigerant
R404A
Region
North America
RLA
20.7 A
Segment usage
Low Back Pressure
Suction connection size [in]
7/8 in
Suction connection size [in] [Max]
7/8 in
Technology
Reciprocating
TYPE
Optyma™
Type designation
Condensing Units
Version
WF
Volt 60Hz Nom Max [V]
230 V
Volt 60Hz Nom Min [V]
208 V
Voltage 60Hz [V]
230 V
Wiring Diagram
119-6404
