Артикул: 120G0069

В наличии

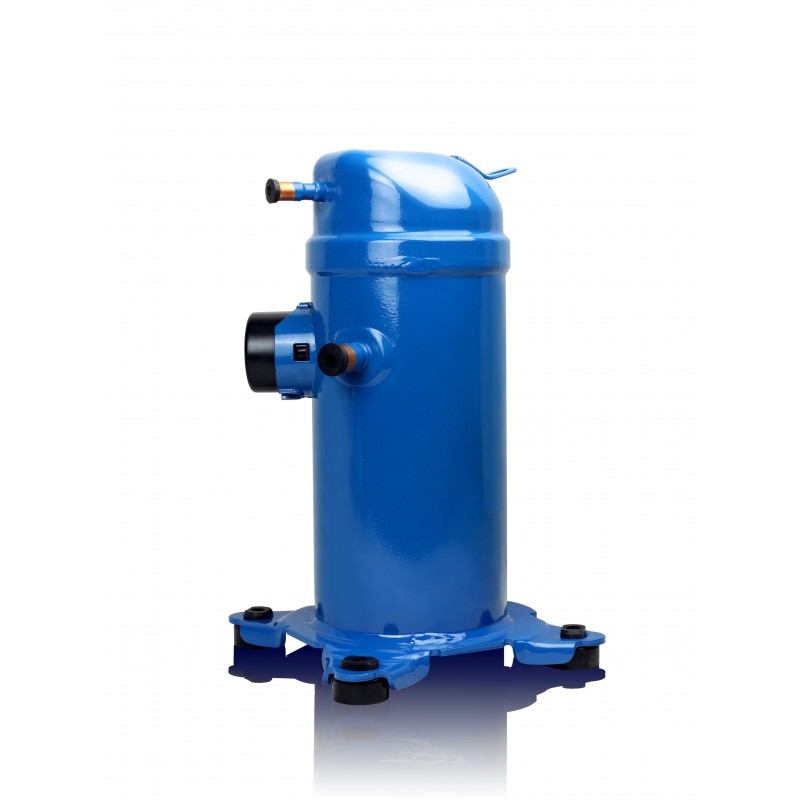

Danfoss 120G0069 - Scroll compressor, Inverter, VLZ028TGNE9

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 120G0069 - Scroll compressor, Inverter, VLZ028TGNE9

Refrigerant: R404A; R407A; R407F, Segment usage: Refrigeration LT, Compressor power supply [V/Ph/Hz]: 380-480/3/50-60

Информация о продукте

Gross weight 28.6 kg
Net weight 26 kg
EAN 5702424544447



Brand technique Scroll compressor
Capacity control Inverter
Compressor power supply [V/Ph/Hz] 380-480/3/50-60
Configuration code Single
Connection type Brazed
Description VLZ028TG
Discharge connection angle [°] 90 °
Discharge connection comments Rubber plug
Discharge connection material Copper
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Economizer No
Frequency [Hz] 15 - 100
High side max pressure (Ps) 31.1 bar
High value of nominal voltage at 50Hz [V] 480 V
High value of nominal voltage at 60Hz [V] 480 V
High value of voltage range at 50Hz [V] 528 V
High value of voltage range at 60Hz [V] 528 V
IP protection class IP22
Liquid injection No
Low side max pressure (Ps) 26.2 bar
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 380 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 342 V
Model number VLZ028TGNE9
Motor protection Motor protection by frequency converter
Mounting torque [Nm] 11 Nm
Nominal cooling capacity 60 kBTU/h 29.35 kBtu/h
Nominal cooling capacity at 50Hz 3.8 kW
Nominal cooling capacity at 60Hz 8.6 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.1 L
Oil type POE
Packing format Industrial pack
Packing quantity 12
Packing type industrial packs **Industrial pack: 12 unboxed compressors on pallet (order per multiples of 12)
Packing type single pack *Single pack: Compressor in cardboard box
Phase 3
Power connections Spade
Refrigerant R404A, R407A, R407F
Refrigerant charge [kg] [Max] 3.6 kg
RLA 7.0 A
Rotational speed at 50Hz [rpm] 3000 rpm
Rotational speed at 60Hz [rpm] 3600 rpm
Segment usage Refrigeration LT
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection angle [°] 90 °
Suction connection comments Rubber plug
Suction connection material Copper
Suction connection pipe size [in] 3/4 in
Suction connection size [in] 3/4 in
Swept volume [cm3] 27.8 cm³
Technology Scroll
Torque earth [Nm] 2 Nm
Type VLZ
Type designation Compressor
Viscosity [cP] 46 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 0.71 Ohms

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 120G0069

Основные характеристики

Brand technique
Scroll compressor
Capacity control
Inverter
Compressor power supply [V/Ph/Hz]
380-480/3/50-60
Configuration code
Single
Connection type
Brazed
Description
VLZ028TG
Discharge connection angle [°]
90 °
Discharge connection comments
Rubber plug
Discharge connection material
Copper
Discharge connection pipe size [in]
1/2 in
Discharge connection size [in]
1/2 in
EAN
5702424544447
Economizer
No
Frequency [Hz]
15 - 100
Gross weight
28.6 kg
High side max pressure (Ps)
31.1 bar
High value of nominal voltage at 50Hz [V]
480 V
High value of nominal voltage at 60Hz [V]
480 V
High value of voltage range at 50Hz [V]
528 V
High value of voltage range at 60Hz [V]
528 V
IP protection class
IP22
Liquid injection
No
Low side max pressure (Ps)
26.2 bar
Low value of nominal voltage at 50Hz [V]
380 V
Low value of nominal voltage at 60Hz [V]
380 V
Low value of voltage range at 50Hz [V]
342 V
Low value of voltage range at 60Hz [V]
342 V
Model number
VLZ028TGNE9
Motor protection
Motor protection by frequency converter
Mounting torque [Nm]
11 Nm
Net weight
26 kg
Nominal cooling capacity 60 kBTU/h
29.35 kBtu/h
Nominal cooling capacity at 50Hz
3.8 kW
Nominal cooling capacity at 60Hz
8.6 kW
Number of starts per hour [Max]
12
Oil charge [L]
1.1 L
Oil type
POE
Packing format
Industrial pack
Packing quantity
12
Packing type industrial packs
**Industrial pack: 12 unboxed compressors on pallet (order per multiples of 12)
Packing type single pack
*Single pack: Compressor in cardboard box
Phase
3
Power connections
Spade
Refrigerant
R404AR407AR407F
Refrigerant charge [kg] [Max]
3.6 kg
RLA
7.0 A
Rotational speed at 50Hz [rpm]
3000 rpm
Rotational speed at 60Hz [rpm]
3600 rpm
Segment usage
Refrigeration LT
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil
Initial oil charge
Suction connection angle [°]
90 °
Suction connection comments
Rubber plug
Suction connection material
Copper
Suction connection pipe size [in]
3/4 in
Suction connection size [in]
3/4 in
Swept volume [cm3]
27.8 cm³
Technology
Scroll
Torque earth [Nm]
2 Nm
TYPE
VLZ
Type designation
Compressor
Viscosity [cP]
46 cP
Winding resistance for three-phase compressors with identical wi
0.71 Ohms
Winding resistance for three-phase compressors with identical wi
0.71 Ohms
