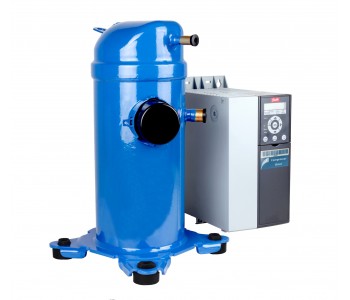

Danfoss 120G0125 - Scroll compressor, VZH044CHANA
Refrigerant: R410A, Segment usage: Air conditioning, Compressor power supply [V/Ph/Hz]: 525-600/3/50-60
Информация о продукте
| Gross weight | 27.67 kg |
| Net weight | 27 kg |
| Gross weight | 27.67 kg |
| Net weight | 27 kg |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 525-600/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH044CHANA |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 Nm |
| High side max pressure (Ps) | 41.1 bar |
| High Side TS Max | 65 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.5 L |
| High value of nominal voltage at 50Hz [V] | 575 V |
| High value of nominal voltage at 60Hz [V] | 575 V |
| High value of voltage range at 50Hz [V] | 660 V |
| High value of voltage range at 60Hz [V] | 660 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 33.3 bar |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 3.2 L |
| Low value of nominal voltage at 50Hz [V] | 575 V |
| Low value of nominal voltage at 60Hz [V] | 575 V |
| Low value of voltage range at 50Hz [V] | 473 V |
| Low value of voltage range at 60Hz [V] | 473 V |
| Model number | VZH044CHANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 Nm |
| Nominal cooling capacity 60 kBTU/h | 48.12 kBtu/h |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4" flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Relief valve | None |
| Replacement code | 120G0181 |
| RLA | 15.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection comments | Rubber plug |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 Nm |
| Total height [mm] | 415 mm |
| Type | VZH |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
| Brand technique | Scroll compressor |
| Capacity control | Inverter |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 525-600/3/50-60 |
| Configuration code | Single |
| Connection type | Brazed |
| Description | VZH044CHANA |
| Diameter [mm] | 165 mm |
| Discharge connection angle [°] | 90 ° |
| Discharge connection comments | Rubber plug |
| Discharge connection height [mm] | 371 mm |
| Discharge connection material | Copper |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection size [in] | 1/2 in |
| Drawing number | 0VG8213b |
| Economizer | No |
| Fitting sleeve | - |
| Fitting standard | ODF |
| Frequency [Hz] | 15 - 100 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 Nm |
| High side max pressure (Ps) | 41.1 bar |
| High Side TS Max | 65 °C |
| High Side TS Min | -35 °C |
| High Side Volume | 0.5 L |
| High value of nominal voltage at 50Hz [V] | 575 V |
| High value of nominal voltage at 60Hz [V] | 575 V |
| High value of voltage range at 50Hz [V] | 660 V |
| High value of voltage range at 60Hz [V] | 660 V |
| IP protection class | IP22 |
| Low side max pressure (Ps) | 33.3 bar |
| Low Side TS Max | 55 °C |
| Low Side TS Min | -35 °C |
| Low Side Volume | 3.2 L |
| Low value of nominal voltage at 50Hz [V] | 575 V |
| Low value of nominal voltage at 60Hz [V] | 575 V |
| Low value of voltage range at 50Hz [V] | 473 V |
| Low value of voltage range at 60Hz [V] | 473 V |
| Model number | VZH044CHANA |
| Motor protection | Motor protection by frequency converter |
| Mounting torque [Nm] | 11 Nm |
| Nominal cooling capacity 60 kBTU/h | 48.12 kBtu/h |
| Nominal cooling capacity at 50Hz | 6.2 kW |
| Nominal cooling capacity at 60Hz | 14.1 kW |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.3 L |
| Oil drain | 1/4" flare |
| Oil equalization | None |
| Oil reference | 160HV |
| Oil type | PVE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Packing type single pack | *Single pack: Compressor in cardboard box |
| Phase | 3 |
| Power connections | Spade |
| Refrigerant | R410A |
| Refrigerant charge [kg] [Max] | 3.6 kg |
| Relief valve | None |
| Replacement code | 120G0181 |
| RLA | 15.5 A |
| Rotational speed at 50Hz [rpm] | 3000 rpm |
| Rotational speed at 60Hz [rpm] | 3600 rpm |
| Segment usage | Air conditioning |
| Shipped instructions | Installation instructions |
| Shipped mounting | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| Shipped oil | Initial oil charge |
| Suction connection angle [°] | 90 ° |
| Suction connection comments | Rubber plug |
| Suction connection height [mm] | 242 mm |
| Suction connection material | Copper |
| Suction connection pipe size [in] | 3/4 in |
| Suction connection size [in] | 3/4 in |
| Swept volume [cm3] | 44.5 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 Nm |
| Total height [mm] | 415 mm |
| Type | VZH |
| Type designation | Compressor |
| Viscosity [cP] | 32 cP |
| Winding resistance for three-phase compressors with identical windings [Ohm] | 0.71 Ohms |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Основные характеристики
- Brand technique
- Scroll compressor
- Capacity control
- Inverter
- Colour
- Blue
- Compressor power supply [V/Ph/Hz]
- 525-600/3/50-60
- Configuration code
- Single
- Connection type
- Brazed
- Description
- VZH044CHANA
- Diameter [mm]
- 165 mm
- Discharge connection angle [°]
- 90 °
- Discharge connection comments
- Rubber plug
- Discharge connection height [mm]
- 371 mm
- Discharge connection material
- Copper
- Discharge connection pipe size [in]
- 1/2 in
- Discharge connection size [in]
- 1/2 in
- Drawing number
- 0VG8213b
- Economizer
- No
- Fitting sleeve
- -
- Fitting standard
- ODF
- Frequency [Hz]
- 15 - 100
- Gauge port HP
- None
- Gauge port LP
- None
- Glass mounting
- Threaded
- Glass torque [Nm]
- 53 Nm
- Gross weight
- 27.67 kg
- High side max pressure (Ps)
- 41.1 bar
- High Side TS Max
- 65 °C
- High Side TS Min
- -35 °C
- High Side Volume
- 0.5 L
- High value of nominal voltage at 50Hz [V]
- 575 V
- High value of nominal voltage at 60Hz [V]
- 575 V
- High value of voltage range at 50Hz [V]
- 660 V
- High value of voltage range at 60Hz [V]
- 660 V
- IP protection class
- IP22
- Low side max pressure (Ps)
- 33.3 bar
- Low Side TS Max
- 55 °C
- Low Side TS Min
- -35 °C
- Low Side Volume
- 3.2 L
- Low value of nominal voltage at 50Hz [V]
- 575 V
- Low value of nominal voltage at 60Hz [V]
- 575 V
- Low value of voltage range at 50Hz [V]
- 473 V
- Low value of voltage range at 60Hz [V]
- 473 V
- Model number
- VZH044CHANA
- Motor protection
- Motor protection by frequency converter
- Mounting torque [Nm]
- 11 Nm
- Net weight
- 27 kg
- Nominal cooling capacity 60 kBTU/h
- 48.12 kBtu/h
- Nominal cooling capacity at 50Hz
- 6.2 kW
- Nominal cooling capacity at 60Hz
- 14.1 kW
- Number of starts per hour [Max]
- 12
- Oil charge [L]
- 1.3 L
- Oil drain
- 1/4" flare
- Oil equalization
- None
- Oil reference
- 160HV
- Oil type
- PVE
- Packing format
- Single pack
- Packing quantity
- 1
- Packing type single pack
- *Single pack: Compressor in cardboard box
- Phase
- 3
- Power connections
- Spade
- Refrigerant
- R410A
- Refrigerant charge [kg] [Max]
- 3.6 kg
- Relief valve
- None
- Replacement code
- 120G0181
- RLA
- 15.5 A
- Rotational speed at 50Hz [rpm]
- 3000 rpm
- Rotational speed at 60Hz [rpm]
- 3600 rpm
- Segment usage
- Air conditioning
- Shipped instructions
- Installation instructions
- Shipped mounting
- Mounting kit with grommets, bolts, nuts, sleeves and washers
- Shipped oil
- Initial oil charge
- Suction connection angle [°]
- 90 °
- Suction connection comments
- Rubber plug
- Suction connection height [mm]
- 242 mm
- Suction connection material
- Copper
- Suction connection pipe size [in]
- 3/4 in
- Suction connection size [in]
- 3/4 in
- Swept volume [cm3]
- 44.5 cm³
- Technology
- Scroll
- Torque earth [Nm]
- 2 Nm
- Total height [mm]
- 415 mm
- TYPE
- VZH
- Type designation
- Compressor
- Viscosity [cP]
- 32 cP
- Winding resistance for three-phase compressors with identical wi
- 0.71 Ohms
- Winding resistance for three-phase compressors with identical wi
- 0.71 Ohms
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru
Вся поставляемая продукция Danfoss имеет официальную гарантию.
Сервис гарантии включает в себя:
- Приемку в сервисном центре для выполнения диагностики дефекта.
- Ремонт.
- Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.
Контакты гарантийного отдела:
Телефон: +7 495 266-67-99E-mail: sale@df-russia.ru
Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:
- Окажет профессиональную консультацию.
- Сообщит цену.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможное время доставки.
E-mail: sale@df-russia.ru
Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
Нет отзывов об этом товаре.
