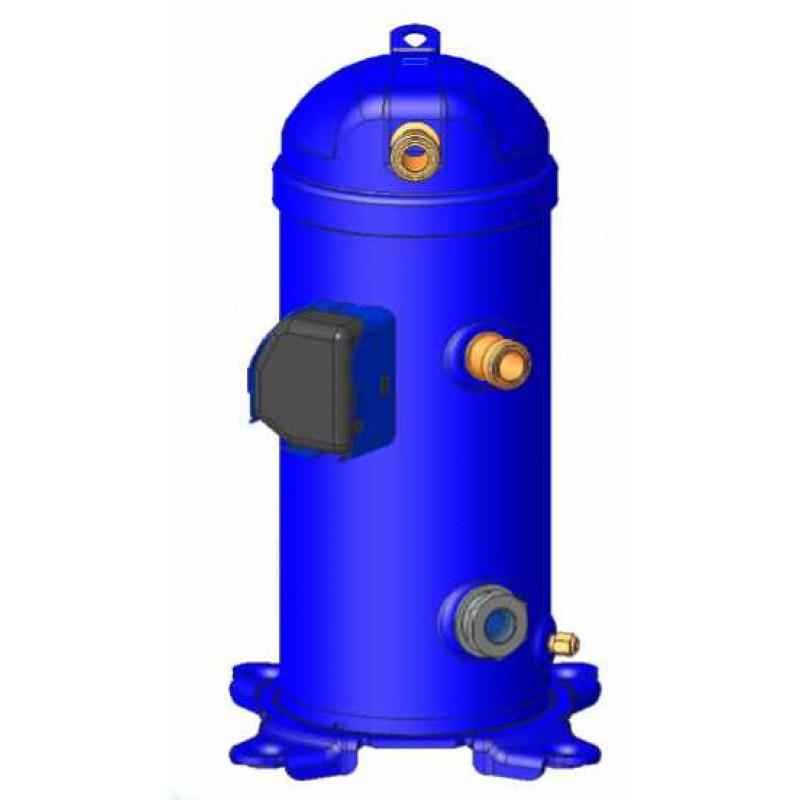

Danfoss 121L8787 - Scroll compressor, MLZ038T9LQ9A
Refrigerant: R134a; R22; R404A; R407C; R448A; R449A; R452A; R507A; R513A, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 380/3/60
Информация о продукте
| Gross weight | 40.37 kg |
| Net weight | 37.2 kg |
| EAN | 5702424059521 |
| Gross weight | 40.37 kg |
| Net weight | 37.2 kg |
| EAN | 5702424059521 |
| Approval standard | CE |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380/3/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Description | MLZ038T9A |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection mounting torque [Nm] | 90 Nm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection rotolock size [in] | 1 in |
| Discharge connection size [in] | 1 in |
| Discharge connection sleeve pipe size [in] | 1/2 in |
| Drawing number | 0XR6298B-2 |
| Economizer | No |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 Nm |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 380 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 418 V |
| IP protection class | IP22 |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| LRA | 81 A |
| MCC | 17 A |
| Model number | MLZ038T9LQ9A |
| Motor protection | Internal overload protector |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.57 L |
| Oil drain | 1/4'' flare |
| Oil equalization | None |
| Oil reference | 215PZ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R134a, R22, R404A, R407C, R448A, R449A, R452A, R513A, R507A |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relief valve | 32 bar |
| RLA | 11 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration MT |
| Suction connection height [mm] | 280 mm |
| Suction connection mounting torque [Nm] | 90 Nm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection rotolock size [in] | 1 1/4 in |
| Suction connection size [in] | 1 1/4 in |
| Suction connection sleeve pipe size [in] | 7/8 in |
| Swept volume [cm3] | 80.95 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 455 mm |
| Type | MLZ |
| Type designation | Compressor |
| Viscosity [cP] | 46 cP |
| Voltage of capacitor A [V] | 370 V |
| Winding resistance 1-2 [Ohm] | 1.48 Ohm |
| Winding resistance 1-3 [Ohm] | 1.46 Ohm |
| Winding resistance 2-3 [Ohm] | 1.49 Ohm |
| Approval standard | CE |
| Brand technique | Scroll compressor |
| Capacity control | Fixed speed |
| Colour | Blue |
| Compressor power supply [V/Ph/Hz] | 380/3/60 |
| Configuration code | Single |
| Connection type | Rotolock |
| Description | MLZ038T9A |
| Diameter [mm] | 184 mm |
| Discharge connection height [mm] | 422 mm |
| Discharge connection mounting torque [Nm] | 90 Nm |
| Discharge connection pipe size [in] | 1/2 in |
| Discharge connection rotolock size [in] | 1 in |
| Discharge connection size [in] | 1 in |
| Discharge connection sleeve pipe size [in] | 1/2 in |
| Drawing number | 0XR6298B-2 |
| Economizer | No |
| Fitting standard | Rotolock |
| Frequency [Hz] | 60 |
| Gauge port HP | None |
| Gauge port LP | None |
| Glass mounting | Threaded |
| Glass torque [Nm] | 53 Nm |
| High value of nominal voltage at 50Hz [V] | 0 V |
| High value of nominal voltage at 60Hz [V] | 380 V |
| High value of voltage range at 50Hz [V] | 0 V |
| High value of voltage range at 60Hz [V] | 418 V |
| IP protection class | IP22 |
| Liquid injection | No |
| Low value of nominal voltage at 50Hz [V] | 0 V |
| Low value of nominal voltage at 60Hz [V] | 380 V |
| Low value of voltage range at 50Hz [V] | 0 V |
| Low value of voltage range at 60Hz [V] | 342 V |
| LRA | 81 A |
| MCC | 17 A |
| Model number | MLZ038T9LQ9A |
| Motor protection | Internal overload protector |
| Number of starts per hour [Max] | 12 |
| Oil charge [L] | 1.57 L |
| Oil drain | 1/4'' flare |
| Oil equalization | None |
| Oil reference | 215PZ |
| Oil type | POE |
| Packing format | Single pack |
| Packing quantity | 1 |
| Phase | 3 |
| Power connections | Screw connectors 10-32 UNF x 9.5 |
| Refrigerant | R134a, R22, R404A, R407C, R448A, R449A, R452A, R513A, R507A |
| Refrigerant charge [kg] [Max] | 5.44 kg |
| Relief valve | 32 bar |
| RLA | 11 A |
| Rotational speed at 50Hz [rpm] | 0 rpm |
| Rotational speed at 60Hz [rpm] | 3500 rpm |
| Segment usage | Refrigeration MT |
| Suction connection height [mm] | 280 mm |
| Suction connection mounting torque [Nm] | 90 Nm |
| Suction connection pipe size [in] | 7/8 in |
| Suction connection rotolock size [in] | 1 1/4 in |
| Suction connection size [in] | 1 1/4 in |
| Suction connection sleeve pipe size [in] | 7/8 in |
| Swept volume [cm3] | 80.95 cm³ |
| Technology | Scroll |
| Torque earth [Nm] | 2 Nm |
| Torque power [Nm] | 3 Nm |
| Total height [mm] | 455 mm |
| Type | MLZ |
| Type designation | Compressor |
| Viscosity [cP] | 46 cP |
| Voltage of capacitor A [V] | 370 V |
| Winding resistance 1-2 [Ohm] | 1.48 Ohm |
| Winding resistance 1-3 [Ohm] | 1.46 Ohm |
| Winding resistance 2-3 [Ohm] | 1.49 Ohm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
- Approval standard
- CE
- Brand technique
- Scroll compressor
- Capacity control
- Fixed speed
- Colour
- Blue
- Compressor power supply [V/Ph/Hz]
- 380/3/60
- Configuration code
- Single
- Connection type
- Rotolock
- Description
- MLZ038T9A
- Diameter [mm]
- 184 mm
- Discharge connection height [mm]
- 422 mm
- Discharge connection mounting torque [Nm]
- 90 Nm
- Discharge connection pipe size [in]
- 1/2 in
- Discharge connection rotolock size [in]
- 1 in
- Discharge connection size [in]
- 1 in
- Discharge connection sleeve pipe size [in]
- 1/2 in
- Drawing number
- 0XR6298B-2
- EAN
- 5702424059521
- Economizer
- No
- Fitting standard
- Rotolock
- Frequency [Hz]
- 60
- Gauge port HP
- None
- Gauge port LP
- None
- Glass mounting
- Threaded
- Glass torque [Nm]
- 53 Nm
- Gross weight
- 40.37 kg
- High value of nominal voltage at 50Hz [V]
- 0 V
- High value of nominal voltage at 60Hz [V]
- 380 V
- High value of voltage range at 50Hz [V]
- 0 V
- High value of voltage range at 60Hz [V]
- 418 V
- IP protection class
- IP22
- Liquid injection
- No
- Low value of nominal voltage at 50Hz [V]
- 0 V
- Low value of nominal voltage at 60Hz [V]
- 380 V
- Low value of voltage range at 50Hz [V]
- 0 V
- Low value of voltage range at 60Hz [V]
- 342 V
- LRA
- 81 A
- MCC
- 17 A
- Model number
- MLZ038T9LQ9A
- Motor protection
- Internal overload protector
- Net weight
- 37.2 kg
- Number of starts per hour [Max]
- 12
- Oil charge [L]
- 1.57 L
- Oil drain
- 1/4'' flare
- Oil equalization
- None
- Oil reference
- 215PZ
- Oil type
- POE
- Packing format
- Single pack
- Packing quantity
- 1
- Phase
- 3
- Power connections
- Screw connectors 10-32 UNF x 9.5
- Refrigerant
- R134aR22R404AR407CR448AR449AR452AR513AR507A
- Refrigerant charge [kg] [Max]
- 5.44 kg
- Relief valve
- 32 bar
- RLA
- 11 A
- Rotational speed at 50Hz [rpm]
- 0 rpm
- Rotational speed at 60Hz [rpm]
- 3500 rpm
- Segment usage
- Refrigeration MT
- Suction connection height [mm]
- 280 mm
- Suction connection mounting torque [Nm]
- 90 Nm
- Suction connection pipe size [in]
- 7/8 in
- Suction connection rotolock size [in]
- 1 1/4 in
- Suction connection size [in]
- 1 1/4 in
- Suction connection sleeve pipe size [in]
- 7/8 in
- Swept volume [cm3]
- 80.95 cm³
- Technology
- Scroll
- Torque earth [Nm]
- 2 Nm
- Torque power [Nm]
- 3 Nm
- Total height [mm]
- 455 mm
- TYPE
- MLZ
- Type designation
- Compressor
- Viscosity [cP]
- 46 cP
- Voltage of capacitor A [V]
- 370 V
- Winding resistance 1-2 [Ohm]
- 1.48 Ohm
- Winding resistance 1-3 [Ohm]
- 1.46 Ohm
- Winding resistance 2-3 [Ohm]
- 1.49 Ohm
