Артикул: 121U8791

В наличии

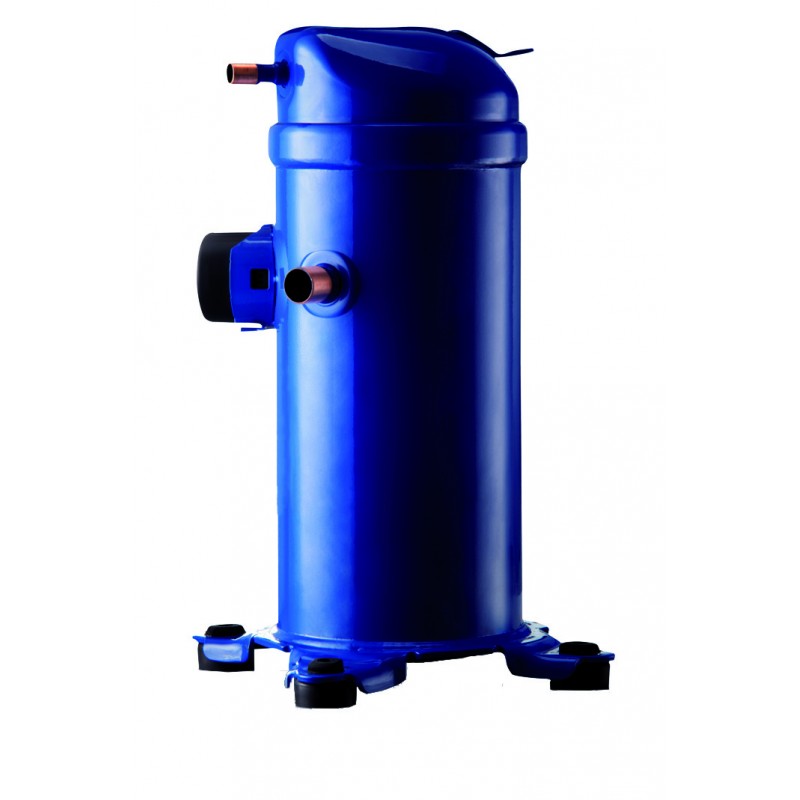

Danfoss 121U8791 - Scroll compressor, MLZ042T1LQ9A

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 121U8791 - Scroll compressor, MLZ042T1LQ9A

Refrigerant: R134a; R22; R404A; R407C; R448A; R449A; R452A; R507A; R513A, Segment usage: Refrigeration MT, Compressor power supply [V/Ph/Hz]: 208-230/1/60

Информация о продукте

Gross weight 44.16 kg
Net weight 41.1 kg
EAN 5702428501637



Approval standard CE
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 0.69 Ohm
Brand technique Scroll compressor
Capacity control Fixed speed
Capacity of capacitor A 80 µF
Capacity of capacitor B 189-227 µF
Colour Black
Compressor power supply [V/Ph/Hz] 208-230/1/60
Configuration code Single
Connection type Rotolock
Description MLZ042T1A
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection mounting torque [Nm] 90 Nm
Discharge connection pipe size [in] 1/2 in
Discharge connection rotolock size [in] 1 in
Discharge connection size [in] 1 in
Discharge connection sleeve pipe size [in] 1/2 in
Drawing number 0XR6298B-2
Economizer No
Fitting standard Rotolock
Frequency [Hz] 60
Gauge port HP None
Gauge port LP None
Glass mounting Threaded
Glass torque [Nm] 53 Nm
High side max pressure (Ps) 31.1 bar
High value of nominal voltage at 50Hz [V] 0 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 0 V
High value of voltage range at 60Hz [V] 253 V
IP protection class IP22
Liquid injection No
Low side max pressure (Ps) 26.2 bar
Low value of nominal voltage at 50Hz [V] 0 V
Low value of nominal voltage at 60Hz [V] 208 V
Low value of voltage range at 50Hz [V] 0 V
Low value of voltage range at 60Hz [V] 187 V
LRA 189 A
Main winding resistance for single-phase compressors [Ohm] 0.23 Ohm
MCC 60 A
Model number MLZ042T1LQ9A
Motor protection Internal overload protector
Nominal cooling capacity at 50Hz 9.6 kW
Nominal cooling capacity at 60Hz 12.2 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil drain 1/4'' flare
Oil equalization None
Oil reference 215PZ
Oil type POE
Packing format Single pack
Packing quantity 1
Phase 1
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R134a, R22, R404A, R407C, R448A, R449A, R452A, R513A, R507A
Refrigerant charge [kg] [Max] 5.44 kg
Relief valve 32 bar
RLA 42.9 A
Rotational speed at 50Hz [rpm] 0 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Refrigeration MT
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection mounting torque [Nm] 90 Nm
Suction connection pipe size [in] 7/8 in
Suction connection rotolock size [in] 1 1/4 in
Suction connection size [in] 1 1/4 in
Suction connection sleeve pipe size [in] 7/8 in
Swept volume [cm3] 93.09 cm³
Technology Scroll
Torque earth [Nm] 2 Nm
Torque power [Nm] 3 Nm
Total height [mm] 455 mm
Type MLZ
Type designation Compressor
Viscosity [cP] 46 cP
Voltage of capacitor A [V] 370 V
Voltage of capacitor B [V] 330 V

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 121U8791

Основные характеристики

Approval standard
CE
Auxiliary winding resistance (start winding) for single-phase co
0.69 Ohm
Auxiliary winding resistance (start winding) for single-phase co
0.69 Ohm
Brand technique
Scroll compressor
Capacity control
Fixed speed
Capacity of capacitor A
80 µF
Capacity of capacitor B
189-227 µF
Colour
Black
Compressor power supply [V/Ph/Hz]
208-230/1/60
Configuration code
Single
Connection type
Rotolock
Description
MLZ042T1A
Diameter [mm]
184 mm
Discharge connection height [mm]
422 mm
Discharge connection mounting torque [Nm]
90 Nm
Discharge connection pipe size [in]
1/2 in
Discharge connection rotolock size [in]
1 in
Discharge connection size [in]
1 in
Discharge connection sleeve pipe size [in]
1/2 in
Drawing number
0XR6298B-2
EAN
5702428501637
Economizer
No
Fitting standard
Rotolock
Frequency [Hz]
60
Gauge port HP
None
Gauge port LP
None
Glass mounting
Threaded
Glass torque [Nm]
53 Nm
Gross weight
44.16 kg
High side max pressure (Ps)
31.1 bar
High value of nominal voltage at 50Hz [V]
0 V
High value of nominal voltage at 60Hz [V]
230 V
High value of voltage range at 50Hz [V]
0 V
High value of voltage range at 60Hz [V]
253 V
IP protection class
IP22
Liquid injection
No
Low side max pressure (Ps)
26.2 bar
Low value of nominal voltage at 50Hz [V]
0 V
Low value of nominal voltage at 60Hz [V]
208 V
Low value of voltage range at 50Hz [V]
0 V
Low value of voltage range at 60Hz [V]
187 V
LRA
189 A
Main winding resistance for single-phase compressors [Ohm]
0.23 Ohm
MCC
60 A
Model number
MLZ042T1LQ9A
Motor protection
Internal overload protector
Net weight
41.1 kg
Nominal cooling capacity at 50Hz
9.6 kW
Nominal cooling capacity at 60Hz
12.2 kW
Number of starts per hour [Max]
12
Oil charge [L]
1.57 L
Oil drain
1/4'' flare
Oil equalization
None
Oil reference
215PZ
Oil type
POE
Packing format
Single pack
Packing quantity
1
Phase
1
Power connections
Screw connectors 10-32 UNF x 9.5
Refrigerant
R134aR22R404AR407CR448AR449AR452AR513AR507A
Refrigerant charge [kg] [Max]
5.44 kg
Relief valve
32 bar
RLA
42.9 A
Rotational speed at 50Hz [rpm]
0 rpm
Rotational speed at 60Hz [rpm]
3500 rpm
Segment usage
Refrigeration MT
Shipped instructions
Installation instructions
Shipped mounting
Mounting kit with grommets and sleeves
Shipped oil
Initial oil charge
Suction connection height [mm]
280 mm
Suction connection mounting torque [Nm]
90 Nm
Suction connection pipe size [in]
7/8 in
Suction connection rotolock size [in]
1 1/4 in
Suction connection size [in]
1 1/4 in
Suction connection sleeve pipe size [in]
7/8 in
Swept volume [cm3]
93.09 cm³
Technology
Scroll
Torque earth [Nm]
2 Nm
Torque power [Nm]
3 Nm
Total height [mm]
455 mm
TYPE
MLZ
Type designation
Compressor
Viscosity [cP]
46 cP
Voltage of capacitor A [V]
370 V
Voltage of capacitor B [V]
330 V
