Артикул: 144B3919
В наличии

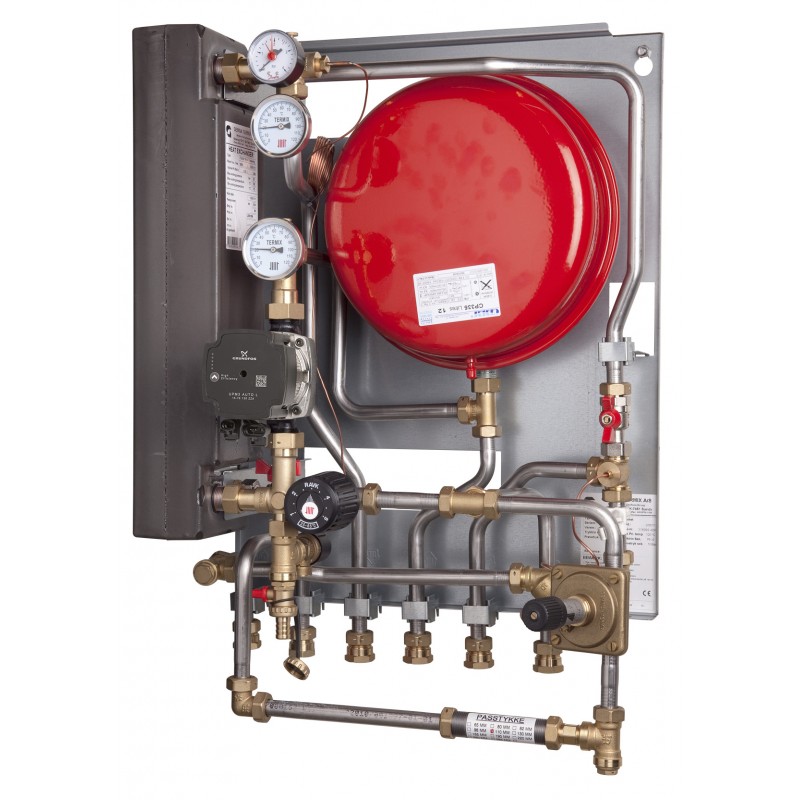

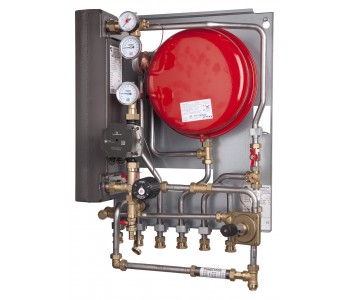

Danfoss 144B3919 - Termix VX, Type 1, 16 bar, 120 °C, Thermostatic valve
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 144B3919 - Termix VX, Type 1, 16 bar, 120 °C, Thermostatic valve
Termix VX-1 Split incl. UPM3 pump, AVTB and pipe insul.
Информация о продукте
| Gross weight | 30 kg |
| Net weight | 29 kg |
| Gross weight | 30 kg |
| Net weight | 29 kg |
| Application type | HE indirect + pri. tank connection |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Extra |
| Delta P primary without heat meter [bar] [Min] | 0.25 bar |
| Depth with cover [mm] | 430 mm |
| Depth without cover [mm] | 360 mm |
| Description | Termix VX-1 Split incl. UPM3 pump, AVTB and pipe insul. |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] [Max] | 24 kW |
| Heating capacity [kW] [Min] | 18 kW |
| Heating circuit - control | Thermostatic valve |
| Heating control type | Thermostatic + delta p controller |
| Heating controller name | AVTB |
| Heating HEX type | T-24-H 16 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM3 AUTO L 15-70 |
| Height with cover [mm] | 800 mm |
| Height without cover [mm] | 750 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Pipe insulation |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 1 |
| Supply temperature construction [˚C] | 120 °C |
| Supply voltage [V] | 230 V |
| Type | Termix VX |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 505 mm |
| Application type | HE indirect + pri. tank connection |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Extra |
| Delta P primary without heat meter [bar] [Min] | 0.25 bar |
| Depth with cover [mm] | 430 mm |
| Depth without cover [mm] | 360 mm |
| Description | Termix VX-1 Split incl. UPM3 pump, AVTB and pipe insul. |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] [Max] | 24 kW |
| Heating capacity [kW] [Min] | 18 kW |
| Heating circuit - control | Thermostatic valve |
| Heating control type | Thermostatic + delta p controller |
| Heating controller name | AVTB |
| Heating HEX type | T-24-H 16 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM3 AUTO L 15-70 |
| Height with cover [mm] | 800 mm |
| Height without cover [mm] | 750 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Pipe insulation |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 1 |
| Supply temperature construction [˚C] | 120 °C |
| Supply voltage [V] | 230 V |
| Type | Termix VX |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 505 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144B3919
Основные характеристики
- Application type
- HE indirect + pri. tank connection
- Connection direction
- Bottom
- Cover material
- White-lacquered steel sheet
- Cover option
- Extra
- Delta P primary without heat meter [bar] [Min]
- 0.25 bar
- Depth with cover [mm]
- 430 mm
- Depth without cover [mm]
- 360 mm
- Description
- Termix VX-1 Split incl. UPM3 pump, AVTB and pipe insul.
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- Differential pressure controller
- AVPL
- Fitting piece
- Energy meter return
- Gross weight
- 30 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating capacity [kW] [Max]
- 24 kW
- Heating capacity [kW] [Min]
- 18 kW
- Heating circuit - control
- Thermostatic valve
- Heating control type
- Thermostatic + delta p controller
- Heating controller name
- AVTB
- Heating HEX type
- T-24-H 16
- Heating pump brand
- Grundfos
- Heating pump type
- UPM3 AUTO L 15-70
- Height with cover [mm]
- 800 mm
- Height without cover [mm]
- 750 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Pipe insulation
- Net weight
- 29 kg
- Pressure nominal primary [bar]
- 16 bar
- Product group
- Small Stations
- Station size type
- Type 1
- Supply temperature construction [˚C]
- 120 °C
- Supply voltage [V]
- 230 V
- TYPE
- Termix VX
- Width with cover [mm]
- 540 mm
- Width without cover [mm]
- 505 mm
