Артикул: 144B3968
В наличии

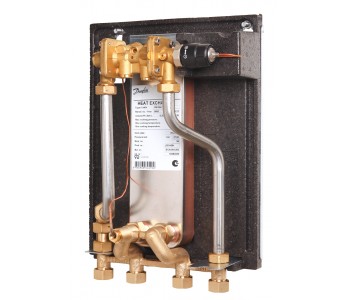

Danfoss 144B3968 - Termix Novi, Type 2, 16 bar, 120 °C, DHW controller name: IHPT
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 144B3968 - Termix Novi, Type 2, 16 bar, 120 °C, DHW controller name: IHPT
Termix Novi Type 2 w/cover IHPT/Insu
Информация о продукте
| Gross weight | 11 kg |
| Net weight | 10 kg |
| Gross weight | 11 kg |
| Net weight | 10 kg |
| Application type | DHW |
| Connection direction | Bottom |
| Cover material | Gray-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 1 bar |
| Delta P primary without heat meter [bar] [Min] | 0.28 bar |
| Depth with cover [mm] | 165 mm |
| Depth without cover [mm] | 155 mm |
| Description | Termix Novi Type 2 w/cover IHPT/Insu |
| DH connection size | 3/4" |
| DH connection type | G ext. thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 58 kW |
| DHW capacity [kW] [Min] | 32 kW |
| DHW circulation | Extra |
| DHW connection size | 3/4" |
| DHW connection type | G ext. thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | IHPT |
| DHW HEX type | XB06H-1 40 |
| DHW pipe size | Ø18 |
| Height with cover [mm] | 432 mm |
| Height without cover [mm] | 432 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | EPP cover |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 120 °C |
| Supply temperature recommended [˚C] | 100 °C |
| Type | Termix Novi |
| Width with cover [mm] | 315 mm |
| Width without cover [mm] | 300 mm |
| Application type | DHW |
| Connection direction | Bottom |
| Cover material | Gray-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 1 bar |
| Delta P primary without heat meter [bar] [Min] | 0.28 bar |
| Depth with cover [mm] | 165 mm |
| Depth without cover [mm] | 155 mm |
| Description | Termix Novi Type 2 w/cover IHPT/Insu |
| DH connection size | 3/4" |
| DH connection type | G ext. thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 58 kW |
| DHW capacity [kW] [Min] | 32 kW |
| DHW circulation | Extra |
| DHW connection size | 3/4" |
| DHW connection type | G ext. thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | IHPT |
| DHW HEX type | XB06H-1 40 |
| DHW pipe size | Ø18 |
| Height with cover [mm] | 432 mm |
| Height without cover [mm] | 432 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | EPP cover |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 120 °C |
| Supply temperature recommended [˚C] | 100 °C |
| Type | Termix Novi |
| Width with cover [mm] | 315 mm |
| Width without cover [mm] | 300 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144B3968
Основные характеристики
- Application type
- DHW
- Connection direction
- Bottom
- Cover material
- Gray-lacquered steel sheet
- Cover option
- Included
- DCW static pressure [bar] [Min]
- 1 bar
- Delta P primary without heat meter [bar] [Min]
- 0.28 bar
- Depth with cover [mm]
- 165 mm
- Depth without cover [mm]
- 155 mm
- Description
- Termix Novi Type 2 w/cover IHPT/Insu
- DH connection size
- 3/4"
- DH connection type
- G ext. thread
- DH pipe size
- Ø18
- DHW capacity [kW] [Max]
- 58 kW
- DHW capacity [kW] [Min]
- 32 kW
- DHW circulation
- Extra
- DHW connection size
- 3/4"
- DHW connection type
- G ext. thread
- DHW Control type
- Flow/thermostatic
- DHW controller name
- IHPT
- DHW HEX type
- XB06H-1 40
- DHW pipe size
- Ø18
- Gross weight
- 11 kg
- Height with cover [mm]
- 432 mm
- Height without cover [mm]
- 432 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- EPP cover
- Net weight
- 10 kg
- Pressure nominal primary [bar]
- 16 bar
- Product group
- Small Stations
- Station size type
- Type 2
- Supply temperature construction [˚C]
- 120 °C
- Supply temperature recommended [˚C]
- 100 °C
- TYPE
- Termix Novi
- Width with cover [mm]
- 315 mm
- Width without cover [mm]
- 300 mm
