Артикул: 144H0026

В наличии

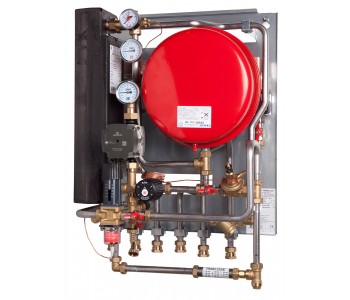

Danfoss 144H0026 - Termix VVX-⁠B, Type 1-⁠1, 10 bar, 120 °C, DHW controller name: AVTB, Thermostatic valve

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 144H0026 - Termix VVX-B, Type 1-1, 10 bar, 120 °C, DHW controller name: AVTB, Thermostatic valve

Termix VVX-B 1-1 with HEX/Pipe insulation

Информация о продукте

Gross weight 35 kg
Net weight 34 kg



Application type DHW, HE indirect
Connection direction Bottom
Cover material White-lacquered steel sheet
Cover option Extra
DCW static pressure [bar] [Min] 5 bar
Delta P primary without heat meter [bar] [Min] 0.25 bar
Depth with cover [mm] 430 mm
Depth without cover [mm] 360 mm
Description Termix VVX-B 1-1 with HEX/Pipe insulation
DH connection size 3/4"
DH connection type G int. Thread
DH pipe size Ø18
DHW circulation Without
DHW connection size 3/4"
DHW connection type G int. Thread
DHW Control type Thermostatic
DHW controller name AVTB
DHW pipe size Ø18
Differential pressure controller AVPL
Fitting piece Energy meter return
HE connection size 3/4"
HE connection type G int. Thread
HE pipe size Ø18
Heating circuit - control Thermostatic valve
Heating control type Thermostatic + delta p controller
Heating controller name RAVK
Heating pump brand Grundfos
Heating pump type UPM3
Height with cover [mm] 810 mm
Height without cover [mm] 810 mm
HEX heating brazing material Copper
HEX heating type Brazed
Insulation material Pipe insulation
Pressure nominal primary [bar] 10 bar
Product group Small Stations
Station size type Type 1-1
Supply temperature construction [˚C] 120 °C
Supply temperature recommended [˚C] 90 °C
Type Termix VVX-B
Width with cover [mm] 540 mm
Width without cover [mm] 530 mm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 144H0026

Основные характеристики

Application type
DHW, HE indirect
Connection direction
Bottom
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
5 bar
Delta P primary without heat meter [bar] [Min]
0.25 bar
Depth with cover [mm]
430 mm
Depth without cover [mm]
360 mm
Description
Termix VVX-B 1-1 with HEX/Pipe insulation
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Thermostatic
DHW controller name
AVTB
DHW pipe size
Ø18
Differential pressure controller
AVPL
Fitting piece
Energy meter return
Gross weight
35 kg
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
Thermostatic valve
Heating control type
Thermostatic + delta p controller
Heating controller name
RAVK
Heating pump brand
Grundfos
Heating pump type
UPM3
Height with cover [mm]
810 mm
Height without cover [mm]
810 mm
HEX heating brazing material
Copper
HEX heating type
Brazed
Insulation material
Pipe insulation
Net weight
34 kg
Pressure nominal primary [bar]
10 bar
Product group
Small Stations
Station size type
Type 1-1
Supply temperature construction [˚C]
120 °C
Supply temperature recommended [˚C]
90 °C
TYPE
Termix VVX-B
Width with cover [mm]
540 mm
Width without cover [mm]
530 mm
