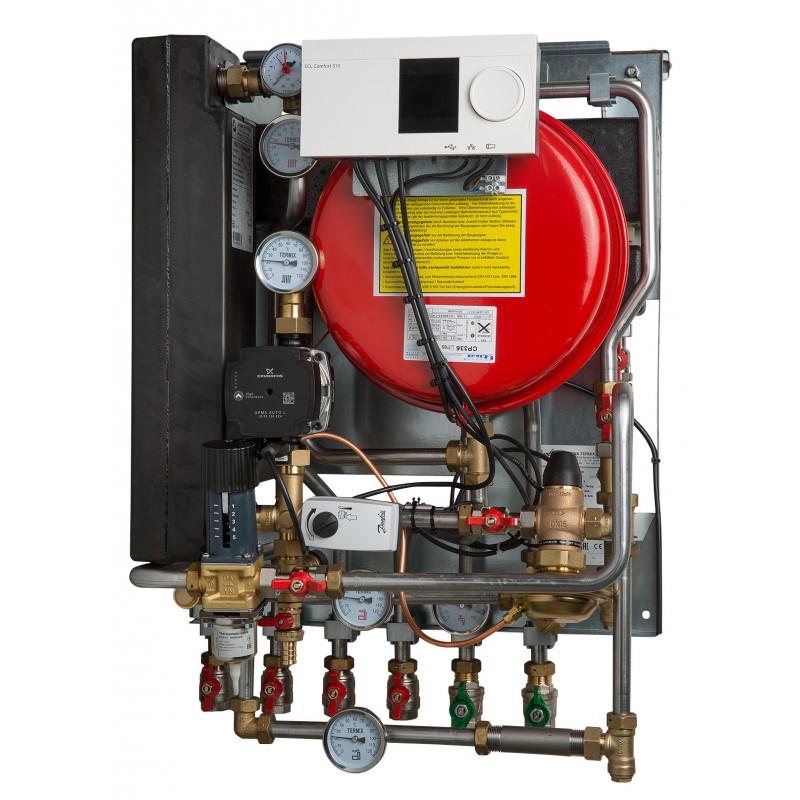

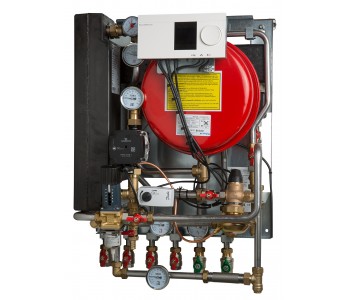

Danfoss 144H0055 - Termix VVX-I, Type 1-3, 10 bar, 120 °C, DHW controller name: IHPT, Thermostatic valve

Termix VVX-I 1-3

Информация о продукте

Gross weight 30 kg
Net weight 29 kg



Application type DHW, HE indirect
Connection direction Bottom
Cover material White-lacquered steel sheet
Cover option Extra
DCW static pressure [bar] [Min] 1 bar
Delta P primary without heat meter [bar] [Min] 0.39 bar
Depth with cover [mm] 430 mm
Depth without cover [mm] 380 mm
Description Termix VVX-I 1-3
DH connection size 3/4"
DH connection type G int. Thread
DH pipe size Ø18
DHW circulation Without
DHW connection size 3/4"
DHW connection type G int. Thread
DHW Control type Flow/thermostatic
DHW controller name IHPT
DHW pipe size Ø18
Differential pressure controller AVP-F
Fitting piece Energy meter return
HE connection size 3/4"
HE connection type G int. Thread
HE pipe size Ø18
Heating circuit - control Thermostatic valve
Heating control type Thermostatic + delta p controller
Heating controller name RAVK
Heating pump brand Grundfos
Heating pump type UPM3
Height with cover [mm] 800 mm
Height without cover [mm] 750 mm
HEX heating brazing material Copper
HEX heating type Brazed
Insulation material HEX
Pressure nominal primary [bar] 10 bar
Product group Small Stations
Station size type Type 1-3
Supply temperature construction [˚C] 120 °C
Supply temperature recommended [˚C] 100 °C
Type Termix VVX-I
Width with cover [mm] 540 mm
Width without cover [mm] 505 mm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 144H0055

Основные характеристики

Application type
DHW, HE indirect
Connection direction
Bottom
Cover material
White-lacquered steel sheet
Cover option
Extra
DCW static pressure [bar] [Min]
1 bar
Delta P primary without heat meter [bar] [Min]
0.39 bar
Depth with cover [mm]
430 mm
Depth without cover [mm]
380 mm
Description
Termix VVX-I 1-3
DH connection size
3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW circulation
Without
DHW connection size
3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
IHPT
DHW pipe size
Ø18
Differential pressure controller
AVP-F
Fitting piece
Energy meter return
Gross weight
30 kg
HE connection size
3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
Thermostatic valve
Heating control type
Thermostatic + delta p controller
Heating controller name
RAVK
Heating pump brand
Grundfos
Heating pump type
UPM3
Height with cover [mm]
800 mm
Height without cover [mm]
750 mm
HEX heating brazing material
Copper
HEX heating type
Brazed
Insulation material
HEX
Net weight
29 kg
Pressure nominal primary [bar]
10 bar
Product group
Small Stations
Station size type
Type 1-3
Supply temperature construction [˚C]
120 °C
Supply temperature recommended [˚C]
100 °C
TYPE
Termix VVX-I
Width with cover [mm]
540 mm
Width without cover [mm]
505 mm
