Артикул: 144H0560
В наличии

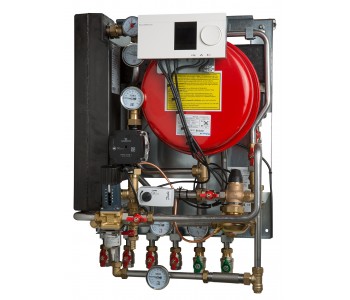

Danfoss 144H0560 - Termix VVX-B HWP, Type 1-3, 16 bar, 100 °C, DHW controller name: AVTB 15, ECL310
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

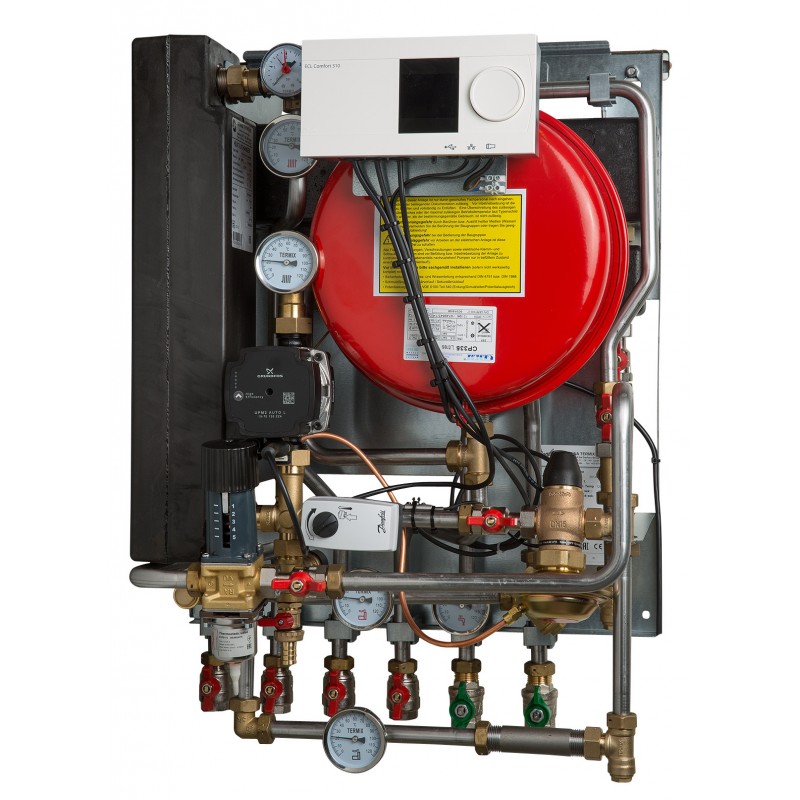

Danfoss 144H0560 - Termix VVX-B HWP, Type 1-3, 16 bar, 100 °C, DHW controller name: AVTB 15, ECL310
Termix VVX-B HWP (ECL 310/A237), Type W1/H3, with STW
Информация о продукте
| Gross weight | 45 kg |
| Net weight | 44 kg |
| Gross weight | 45 kg |
| Net weight | 44 kg |
| Application type | DHW, HE indirect |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 5 bar |
| Delta P primary without heat meter [bar] [Min] | 0.25 bar |
| Depth with cover [mm] | 430 mm |
| Depth without cover [mm] | 360 mm |
| Description | Termix VVX-B HWP (ECL 310/A237), Type W1/H3, with STW |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 75 kW |
| DHW capacity [kW] [Min] | 33 kW |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Thermostatic |
| DHW controller name | AVTB 15 |
| DHW HEX type | T-24-P 16 |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPB-F |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] | 15 kW |
| Heating circuit - control | ECL310 |
| Heating control type | Electronic |
| Heating controller name | ECL 310-A237 & … |
| Heating HEX type | T-24-H 28 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM3 15-70 130 ZZA |
| Height with cover [mm] | 810 mm |
| Height without cover [mm] | 810 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Pipe insulation |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 1-3 |
| Supply temperature construction [˚C] | 100 °C |
| Supply temperature recommended [˚C] | 90 °C |
| Type | Termix VVX-B HWP |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 525 mm |
| Application type | DHW, HE indirect |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 5 bar |
| Delta P primary without heat meter [bar] [Min] | 0.25 bar |
| Depth with cover [mm] | 430 mm |
| Depth without cover [mm] | 360 mm |
| Description | Termix VVX-B HWP (ECL 310/A237), Type W1/H3, with STW |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 75 kW |
| DHW capacity [kW] [Min] | 33 kW |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Thermostatic |
| DHW controller name | AVTB 15 |
| DHW HEX type | T-24-P 16 |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPB-F |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] | 15 kW |
| Heating circuit - control | ECL310 |
| Heating control type | Electronic |
| Heating controller name | ECL 310-A237 & … |
| Heating HEX type | T-24-H 28 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM3 15-70 130 ZZA |
| Height with cover [mm] | 810 mm |
| Height without cover [mm] | 810 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Pipe insulation |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 1-3 |
| Supply temperature construction [˚C] | 100 °C |
| Supply temperature recommended [˚C] | 90 °C |
| Type | Termix VVX-B HWP |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 525 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144H0560
Основные характеристики
- Application type
- DHW, HE indirect
- Connection direction
- Bottom
- Cover material
- White-lacquered steel sheet
- Cover option
- Included
- DCW static pressure [bar] [Min]
- 5 bar
- Delta P primary without heat meter [bar] [Min]
- 0.25 bar
- Depth with cover [mm]
- 430 mm
- Depth without cover [mm]
- 360 mm
- Description
- Termix VVX-B HWP (ECL 310/A237), Type W1/H3, with STW
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW] [Max]
- 75 kW
- DHW capacity [kW] [Min]
- 33 kW
- DHW circulation
- Without
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Thermostatic
- DHW controller name
- AVTB 15
- DHW HEX type
- T-24-P 16
- DHW pipe size
- Ø18
- Differential pressure controller
- AVPB-F
- Fitting piece
- Energy meter return
- Gross weight
- 45 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating capacity [kW]
- 15 kW
- Heating circuit - control
- ECL310
- Heating control type
- Electronic
- Heating controller name
- ECL 310-A237 & …
- Heating HEX type
- T-24-H 28
- Heating pump brand
- Grundfos
- Heating pump type
- UPM3 15-70 130 ZZA
- Height with cover [mm]
- 810 mm
- Height without cover [mm]
- 810 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Pipe insulation
- Net weight
- 44 kg
- Pressure nominal primary [bar]
- 16 bar
- Product group
- Small Stations
- Station size type
- Type 1-3
- Supply temperature construction [˚C]
- 100 °C
- Supply temperature recommended [˚C]
- 90 °C
- TYPE
- Termix VVX-B HWP
- Width with cover [mm]
- 540 mm
- Width without cover [mm]
- 525 mm
