Danfoss 144H1088 - Termix One Solar, Type 3, 10 bar, 110 °C, DHW controller name: AVTB 20
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

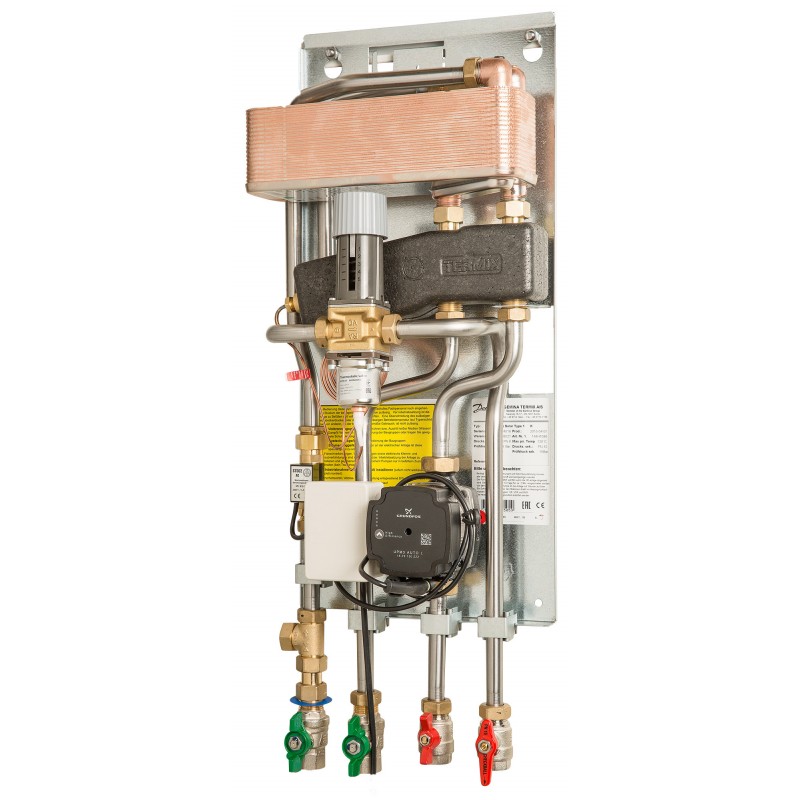

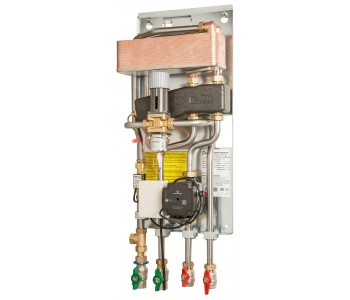

Danfoss 144H1088 - Termix One Solar, Type 3, 10 bar, 110 °C, DHW controller name: AVTB 20
Termix One Solar, Typ 3 with Cover
Информация о продукте
| Gross weight | 15 kg |
| Net weight | 14 kg |
| EAN | 5706561035103 |
| Gross weight | 15 kg |
| Net weight | 14 kg |
| EAN | 5706561035103 |
| Application type | DHW solar |
| Connection direction | Bottom |
| Cover material | Gray-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 5 bar |
| Delta P primary without heat meter [bar] [Min] | 0.45 bar |
| Depth with cover [mm] | 165 mm |
| Depth without cover [mm] | 160 mm |
| Description | Termix One Solar, Typ 3 with Cover |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 90 kW |
| DHW capacity [kW] [Min] | 60 kW |
| DHW circulation | Extra |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Thermostatic |
| DHW controller name | AVTB 20 |
| DHW HEX type | XB06H4 - 2 - 26/26 |
| DHW pipe size | Ø18 |
| Height with cover [mm] | 770 mm |
| Height without cover [mm] | 770 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Without |
| Pressure nominal primary [bar] | 10 bar |
| Product group | Small Stations |
| Station size type | Type 3 |
| Supply temperature construction [˚C] | 110 °C |
| Supply voltage [V] | 230 V |
| Type | Termix One Solar |
| Width with cover [mm] | 315 mm |
| Width without cover [mm] | 300 mm |
| Application type | DHW solar |
| Connection direction | Bottom |
| Cover material | Gray-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 5 bar |
| Delta P primary without heat meter [bar] [Min] | 0.45 bar |
| Depth with cover [mm] | 165 mm |
| Depth without cover [mm] | 160 mm |
| Description | Termix One Solar, Typ 3 with Cover |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 90 kW |
| DHW capacity [kW] [Min] | 60 kW |
| DHW circulation | Extra |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Thermostatic |
| DHW controller name | AVTB 20 |
| DHW HEX type | XB06H4 - 2 - 26/26 |
| DHW pipe size | Ø18 |
| Height with cover [mm] | 770 mm |
| Height without cover [mm] | 770 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Insulation material | Without |
| Pressure nominal primary [bar] | 10 bar |
| Product group | Small Stations |
| Station size type | Type 3 |
| Supply temperature construction [˚C] | 110 °C |
| Supply voltage [V] | 230 V |
| Type | Termix One Solar |
| Width with cover [mm] | 315 mm |
| Width without cover [mm] | 300 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144H1088
Основные характеристики
- Application type
- DHW solar
- Connection direction
- Bottom
- Cover material
- Gray-lacquered steel sheet
- Cover option
- Included
- DCW static pressure [bar] [Min]
- 5 bar
- Delta P primary without heat meter [bar] [Min]
- 0.45 bar
- Depth with cover [mm]
- 165 mm
- Depth without cover [mm]
- 160 mm
- Description
- Termix One Solar, Typ 3 with Cover
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW] [Max]
- 90 kW
- DHW capacity [kW] [Min]
- 60 kW
- DHW circulation
- Extra
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Thermostatic
- DHW controller name
- AVTB 20
- DHW HEX type
- XB06H4 - 2 - 26/26
- DHW pipe size
- Ø18
- EAN
- 5706561035103
- Gross weight
- 15 kg
- Height with cover [mm]
- 770 mm
- Height without cover [mm]
- 770 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Insulation material
- Without
- Net weight
- 14 kg
- Pressure nominal primary [bar]
- 10 bar
- Product group
- Small Stations
- Station size type
- Type 3
- Supply temperature construction [˚C]
- 110 °C
- Supply voltage [V]
- 230 V
- TYPE
- Termix One Solar
- Width with cover [mm]
- 315 mm
- Width without cover [mm]
- 300 mm
