Артикул: 144H1458
В наличии

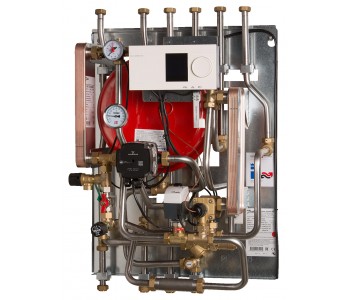

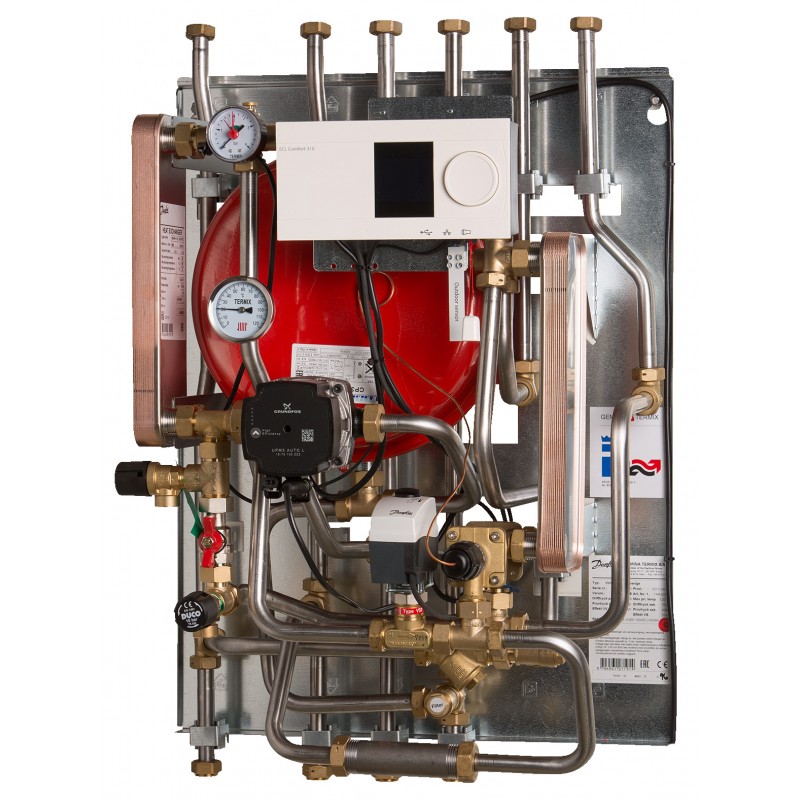

Danfoss 144H1458 - Termix VVX-ID, 10 bar, 110 °C, DHW controller name: IHPT, ECL310
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 144H1458 - Termix VVX-ID, 10 bar, 110 °C, DHW controller name: IHPT, ECL310
substation for indirect heating and instantaneous domestic hot water
Информация о продукте
| Gross weight | 48 kg |
| Net weight | 47 kg |
| Gross weight | 48 kg |
| Net weight | 47 kg |
| Application type | DHW & HE indirect |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 1 bar |
| Depth with cover [mm] | 430 mm |
| Depth without cover [mm] | 390 mm |
| Description | substation for indirect heating and instantaneous domestic hot water |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 33 kW |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | IHPT |
| DHW HEX type | XB06H+-1 22 |
| DHW pipe size | Ø18 |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 8 kW |
| Heating circuit - control | ECL310 |
| Heating control type | Electronic |
| Heating controller name | ECL310 |
| Heating HEX type | XB06H+-1 22 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM3 AUTO L 15-70 |
| Height with cover [mm] | 800 mm |
| Height without cover [mm] | 800 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Pressure nominal primary [bar] | 10 bar |
| Product group | Small Stations |
| Supply temperature construction [˚C] | 110 °C |
| Supply voltage [V] | 230 V |
| Type | Termix VVX-ID |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 525 mm |
| Application type | DHW & HE indirect |
| Connection direction | Bottom |
| Cover material | White-lacquered steel sheet |
| Cover option | Included |
| DCW static pressure [bar] [Min] | 1 bar |
| Depth with cover [mm] | 430 mm |
| Depth without cover [mm] | 390 mm |
| Description | substation for indirect heating and instantaneous domestic hot water |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 33 kW |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | IHPT |
| DHW HEX type | XB06H+-1 22 |
| DHW pipe size | Ø18 |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 8 kW |
| Heating circuit - control | ECL310 |
| Heating control type | Electronic |
| Heating controller name | ECL310 |
| Heating HEX type | XB06H+-1 22 |
| Heating pump brand | Grundfos |
| Heating pump type | UPM3 AUTO L 15-70 |
| Height with cover [mm] | 800 mm |
| Height without cover [mm] | 800 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Pressure nominal primary [bar] | 10 bar |
| Product group | Small Stations |
| Supply temperature construction [˚C] | 110 °C |
| Supply voltage [V] | 230 V |
| Type | Termix VVX-ID |
| Width with cover [mm] | 540 mm |
| Width without cover [mm] | 525 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144H1458
Основные характеристики
- Application type
- DHW & HE indirect
- Connection direction
- Bottom
- Cover material
- White-lacquered steel sheet
- Cover option
- Included
- DCW static pressure [bar] [Min]
- 1 bar
- Depth with cover [mm]
- 430 mm
- Depth without cover [mm]
- 390 mm
- Description
- substation for indirect heating and instantaneous domestic hot water
- DH connection size
- 3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW]
- 33 kW
- DHW circulation
- Without
- DHW connection size
- 3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow/thermostatic
- DHW controller name
- IHPT
- DHW HEX type
- XB06H+-1 22
- DHW pipe size
- Ø18
- Fitting piece
- Energy meter return
- Gross weight
- 48 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating capacity [kW] [Max]
- 15 kW
- Heating capacity [kW] [Min]
- 8 kW
- Heating circuit - control
- ECL310
- Heating control type
- Electronic
- Heating controller name
- ECL310
- Heating HEX type
- XB06H+-1 22
- Heating pump brand
- Grundfos
- Heating pump type
- UPM3 AUTO L 15-70
- Height with cover [mm]
- 800 mm
- Height without cover [mm]
- 800 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Net weight
- 47 kg
- Pressure nominal primary [bar]
- 10 bar
- Product group
- Small Stations
- Supply temperature construction [˚C]
- 110 °C
- Supply voltage [V]
- 230 V
- TYPE
- Termix VVX-ID
- Width with cover [mm]
- 540 mm
- Width without cover [mm]
- 525 mm
