Артикул: 144H2043
В наличии

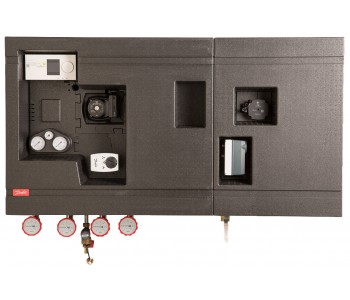

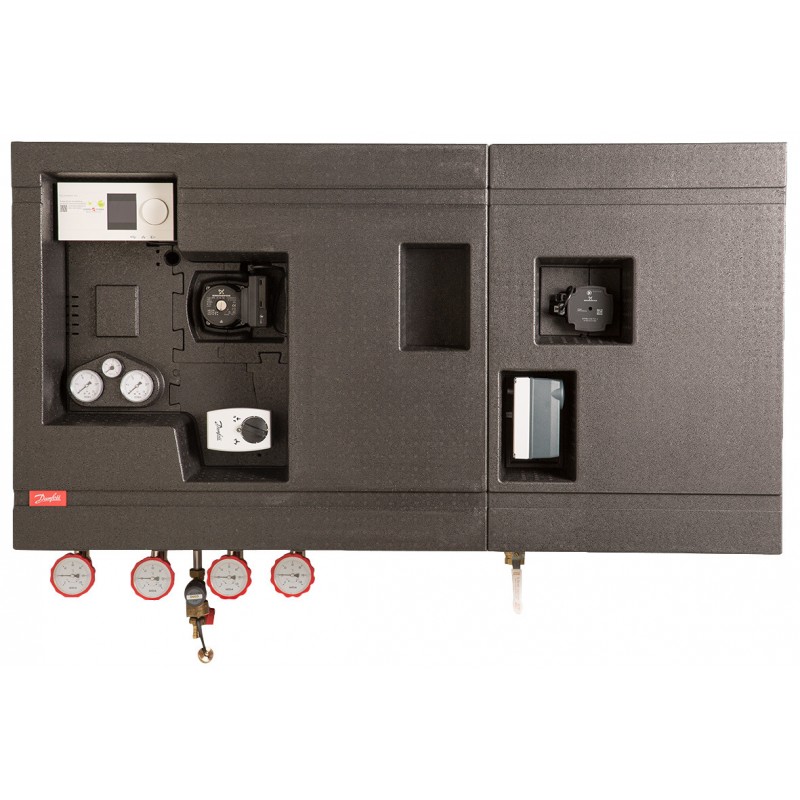

Danfoss 144H2043 - Termix Compact 28 VVX-FI, Type 2-1, 16 bar, 110 °C, ECL310
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 144H2043 - Termix Compact 28 VVX-FI, Type 2-1, 16 bar, 110 °C, ECL310
Substations - Indirect Heating + DHW
Информация о продукте
| Gross weight | 95 kg |
| Net weight | 94 kg |
| Gross weight | 95 kg |
| Net weight | 94 kg |
| Application type | DHW, HE indirect |
| Circulation pipe size | Ø18 |
| Circulation connection size | 3/4" |
| Circulation connection type | internal thread |
| Connection direction | Bottom + option for top conn |
| Cover option | Without |
| Delta P primary without heat meter [bar] [Min] | 0.5 bar |
| Depth without cover [mm] | 400 mm |
| Description | Substations - Indirect Heating + DHW |
| DH connection size | G1" |
| DH connection type | G int. Thread |
| DH pipe size | Ø28 |
| DHW capacity [kW] [Max] | 120 kW |
| DHW capacity [kW] [Min] | 100 kW |
| DHW circulation | Yes |
| DHW connection size | 1" |
| DHW connection type | internal thread |
| DHW Control type | Electronic |
| DHW controller name | ECL310 |
| DHW HEX type | XB37L-1 26 |
| DHW pipe size | Ø28 |
| DHW re-circulation pump brand | Grundfos |
| DHW re-circulation pump type | UPM3 |
| Differential pressure controller | AVQM |
| HE connection size | 1" |
| HE connection type | G int. Thread |
| HE pipe size | Ø28 |
| Heating capacity [kW] [Max] | 85 kW |
| Heating capacity [kW] [Min] | 50 kW |
| Heating circuit - control | ECL310 |
| Heating control type | Electronic |
| Heating controller name | ECL310 |
| Heating HEX type | XB37H-1 26 |
| Heating pump brand | Grundfos |
| Height without cover [mm] | 890 mm |
| HEX heating brazing material | Copper |
| Insulation material | EPP |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 2-1 |
| Supply temperature construction [˚C] | 110 °C |
| Supply voltage [V] | 230 V |
| Type | Termix Compact 28 VVX-FI |
| Width without cover [mm] | 1460 mm |
| Application type | DHW, HE indirect |
| Circulation pipe size | Ø18 |
| Circulation connection size | 3/4" |
| Circulation connection type | internal thread |
| Connection direction | Bottom + option for top conn |
| Cover option | Without |
| Delta P primary without heat meter [bar] [Min] | 0.5 bar |
| Depth without cover [mm] | 400 mm |
| Description | Substations - Indirect Heating + DHW |
| DH connection size | G1" |
| DH connection type | G int. Thread |
| DH pipe size | Ø28 |
| DHW capacity [kW] [Max] | 120 kW |
| DHW capacity [kW] [Min] | 100 kW |
| DHW circulation | Yes |
| DHW connection size | 1" |
| DHW connection type | internal thread |
| DHW Control type | Electronic |
| DHW controller name | ECL310 |
| DHW HEX type | XB37L-1 26 |
| DHW pipe size | Ø28 |
| DHW re-circulation pump brand | Grundfos |
| DHW re-circulation pump type | UPM3 |
| Differential pressure controller | AVQM |
| HE connection size | 1" |
| HE connection type | G int. Thread |
| HE pipe size | Ø28 |
| Heating capacity [kW] [Max] | 85 kW |
| Heating capacity [kW] [Min] | 50 kW |
| Heating circuit - control | ECL310 |
| Heating control type | Electronic |
| Heating controller name | ECL310 |
| Heating HEX type | XB37H-1 26 |
| Heating pump brand | Grundfos |
| Height without cover [mm] | 890 mm |
| HEX heating brazing material | Copper |
| Insulation material | EPP |
| Pressure nominal primary [bar] | 16 bar |
| Product group | Small Stations |
| Station size type | Type 2-1 |
| Supply temperature construction [˚C] | 110 °C |
| Supply voltage [V] | 230 V |
| Type | Termix Compact 28 VVX-FI |
| Width without cover [mm] | 1460 mm |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 144H2043
Основные характеристики
- Application type
- DHW, HE indirect
- Circulation pipe size
- Ø18
- Circulation connection size
- 3/4"
- Circulation connection type
- internal thread
- Connection direction
- Bottom + option for top conn
- Cover option
- Without
- Delta P primary without heat meter [bar] [Min]
- 0.5 bar
- Depth without cover [mm]
- 400 mm
- Description
- Substations - Indirect Heating + DHW
- DH connection size
- G1"
- DH connection type
- G int. Thread
- DH pipe size
- Ø28
- DHW capacity [kW] [Max]
- 120 kW
- DHW capacity [kW] [Min]
- 100 kW
- DHW circulation
- Yes
- DHW connection size
- 1"
- DHW connection type
- internal thread
- DHW Control type
- Electronic
- DHW controller name
- ECL310
- DHW HEX type
- XB37L-1 26
- DHW pipe size
- Ø28
- DHW re-circulation pump brand
- Grundfos
- DHW re-circulation pump type
- UPM3
- Differential pressure controller
- AVQM
- Gross weight
- 95 kg
- HE connection size
- 1"
- HE connection type
- G int. Thread
- HE pipe size
- Ø28
- Heating capacity [kW] [Max]
- 85 kW
- Heating capacity [kW] [Min]
- 50 kW
- Heating circuit - control
- ECL310
- Heating control type
- Electronic
- Heating controller name
- ECL310
- Heating HEX type
- XB37H-1 26
- Heating pump brand
- Grundfos
- Height without cover [mm]
- 890 mm
- HEX heating brazing material
- Copper
- Insulation material
- EPP
- Net weight
- 94 kg
- Pressure nominal primary [bar]
- 16 bar
- Product group
- Small Stations
- Station size type
- Type 2-1
- Supply temperature construction [˚C]
- 110 °C
- Supply voltage [V]
- 230 V
- TYPE
- Termix Compact 28 VVX-FI
- Width without cover [mm]
- 1460 mm
