Артикул: 145B2059
В наличии

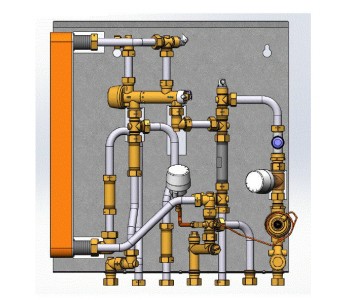

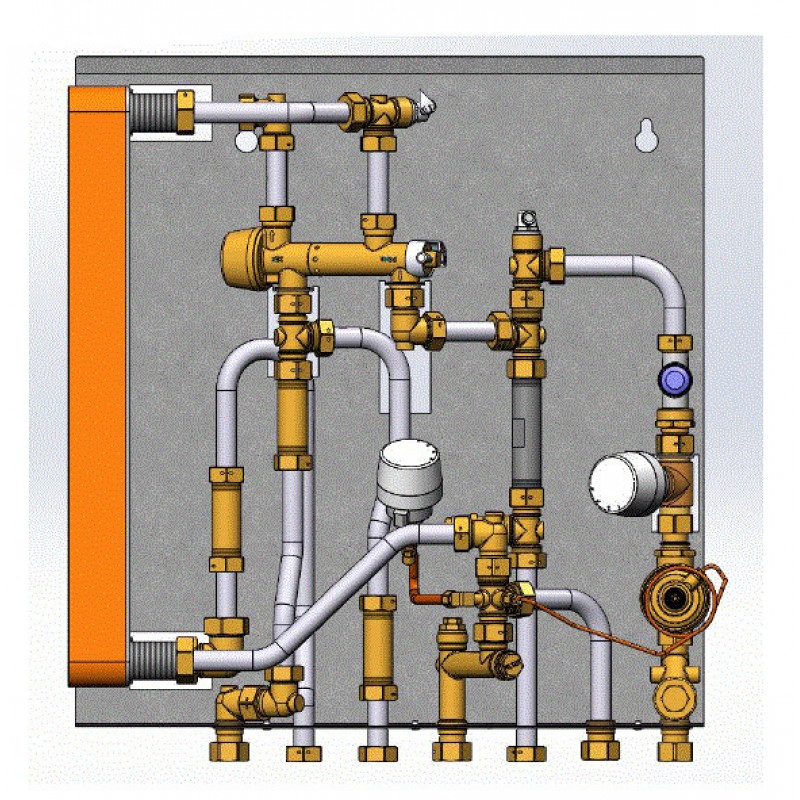

Danfoss 145B2059 - Akva Vita II, 10 bar, 95 °C, DHW controller name: PM
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 145B2059 - Akva Vita II, 10 bar, 95 °C, DHW controller name: PM
Akva Vita FSS Low Temp TD XB37H-30 PM
Информация о продукте
| Gross weight | 20 kg |
| Net weight | 19.5 kg |
| Gross weight | 20 kg |
| Net weight | 19.5 kg |
| 0-series required | No |
| Additional information | DHW, Direct HE with differential pressure controller, Thermo-actuators TWA-A NC, Zone valve |
| Application type | DHW, HE direct |
| Connection direction | Bottom |
| Current max. [A] | 1 A |
| DCW static pressure [bar] [Min] | 2 bar |
| Description | Akva Vita FSS Low Temp TD XB37H-30 PM |
| DH connection size | G3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 58 kW |
| DHW circulation | Yes |
| DHW connection size | G3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow |
| DHW controller name | PM |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Frequency [Hz] (2) | 50 Hz |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating control type | Differential pressure + zone valve |
| Material Description (Short Te | Akva Vita Low Temp AT TD XB37H |
| Operating temp max. [°C] | 90 °C |
| Package depth [mm] | 150 mm |
| Package height [mm] | 620 mm |
| Package width [mm] | 580 mm |
| Packing format | Single pack |
| Power supply [V] AC | 230 V |
| Power supply tolerance [%] | 1 % |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Pri side opr press max[bar] | 10 bar |
| Product group | Small Stations |
| Protection class | IP41 |
| Quantity per packing format | 1 pc |
| Redan APP Diagram | No |
| Sec side opr press max[bar] | 10 bar |
| Supply temperature construction [˚C] | 95 °C |
| Total volume max. [l] | 5 L |
| Type | Akva Vita II |
| 0-series required | No |
| Additional information | DHW, Direct HE with differential pressure controller, Thermo-actuators TWA-A NC, Zone valve |
| Application type | DHW, HE direct |
| Connection direction | Bottom |
| Current max. [A] | 1 A |
| DCW static pressure [bar] [Min] | 2 bar |
| Description | Akva Vita FSS Low Temp TD XB37H-30 PM |
| DH connection size | G3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 58 kW |
| DHW circulation | Yes |
| DHW connection size | G3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow |
| DHW controller name | PM |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Frequency [Hz] (2) | 50 Hz |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating control type | Differential pressure + zone valve |
| Material Description (Short Te | Akva Vita Low Temp AT TD XB37H |
| Operating temp max. [°C] | 90 °C |
| Package depth [mm] | 150 mm |
| Package height [mm] | 620 mm |
| Package width [mm] | 580 mm |
| Packing format | Single pack |
| Power supply [V] AC | 230 V |
| Power supply tolerance [%] | 1 % |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Pri side opr press max[bar] | 10 bar |
| Product group | Small Stations |
| Protection class | IP41 |
| Quantity per packing format | 1 pc |
| Redan APP Diagram | No |
| Sec side opr press max[bar] | 10 bar |
| Supply temperature construction [˚C] | 95 °C |
| Total volume max. [l] | 5 L |
| Type | Akva Vita II |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 145B2059
Основные характеристики
- 0-series required
- No
- Additional information
- DHWDirect HE with differential pressure controllerThermo-actuators TWA-A NCZone valve
- Application type
- DHW, HE direct
- Connection direction
- Bottom
- Current max. [A]
- 1 A
- DCW static pressure [bar] [Min]
- 2 bar
- Description
- Akva Vita FSS Low Temp TD XB37H-30 PM
- DH connection size
- G3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW]
- 58 kW
- DHW circulation
- Yes
- DHW connection size
- G3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow
- DHW controller name
- PM
- DHW HEX type
- XB37
- DHW pipe size
- Ø18
- Differential pressure controller
- AVPL
- Frequency [Hz] (2)
- 50 Hz
- Gross weight
- 20 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating control type
- Differential pressure + zone valve
- Material Description (Short Te
- Akva Vita Low Temp AT TD XB37H
- Net weight
- 19.5 kg
- Operating temp max. [°C]
- 90 °C
- Package depth [mm]
- 150 mm
- Package height [mm]
- 620 mm
- Package width [mm]
- 580 mm
- Packing format
- Single pack
- Power supply tolerance [%]
- 1 %
- Power supply [V] AC
- 230 V
- Pressure nominal primary [bar]
- 10 bar
- Pressure nominal secondary [bar]
- 10 bar
- Pri side opr press max[bar]
- 10 bar
- Product group
- Small Stations
- Protection class
- IP41
- Quantity per packing format
- 1 pc
- Redan APP Diagram
- No
- Sec side opr press max[bar]
- 10 bar
- Supply temperature construction [˚C]
- 95 °C
- Total volume max. [l]
- 5 L
- TYPE
- Akva Vita II
