Артикул: 145B3032
В наличии

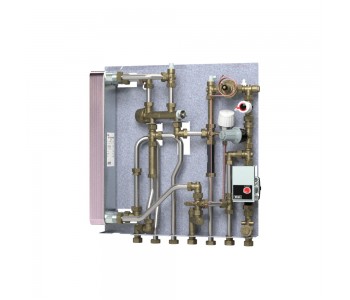

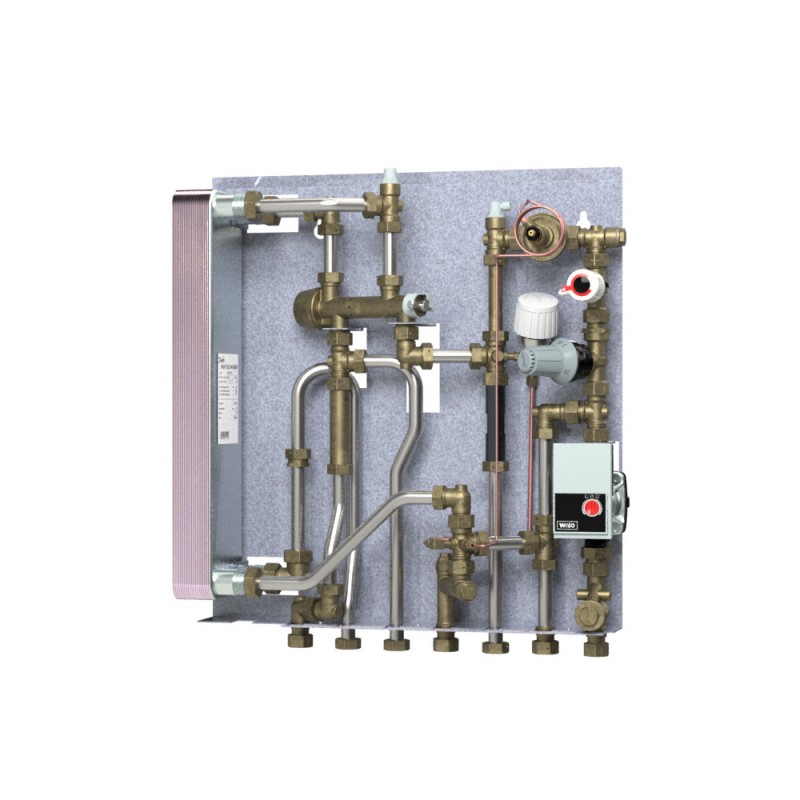

Danfoss 145B3032 - Akva Vita II, 10 bar, 95 °C, DHW controller name: PM
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 145B3032 - Akva Vita II, 10 bar, 95 °C, DHW controller name: PM
Akva Vita MSS Low Temp S XB37H-30 PM
Информация о продукте
| Gross weight | 23 kg |
| Net weight | 22.5 kg |
| Gross weight | 23 kg |
| Net weight | 22.5 kg |
| 0-series required | No |
| Additional information | Direct HE with differential pressure controller, Safety function, Thermostatic mixing circuit |
| Application type | DHW, HE direct |
| Connection direction | Bottom |
| DCW static pressure [bar] [Min] | 2 bar |
| Description | Akva Vita MSS Low Temp S XB37H-30 PM |
| DH connection size | G3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 58 kW |
| DHW circulation | Extra |
| DHW connection size | G3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow |
| DHW controller name | PM |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Floor heating circuit - pump brand | Wilo |
| Floor heating circuit - pump type | Wilo Yonos Para 15/6 |
| HE connection size | G3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating circuit - control | Thermostatic valve |
| Heating control type | Thermostatic + Differential pressure |
| Material Description (Short Te | Akva Vita Low Temp S XB37H-30 |
| Package depth [mm] | 150 mm |
| Package height [mm] | 620 mm |
| Package width [mm] | 580 mm |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| Redan APP Diagram | No |
| Supply temperature construction [˚C] | 95 °C |
| Type | Akva Vita II |
| 0-series required | No |
| Additional information | Direct HE with differential pressure controller, Safety function, Thermostatic mixing circuit |
| Application type | DHW, HE direct |
| Connection direction | Bottom |
| DCW static pressure [bar] [Min] | 2 bar |
| Description | Akva Vita MSS Low Temp S XB37H-30 PM |
| DH connection size | G3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 58 kW |
| DHW circulation | Extra |
| DHW connection size | G3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow |
| DHW controller name | PM |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| Differential pressure controller | AVPL |
| Floor heating circuit - pump brand | Wilo |
| Floor heating circuit - pump type | Wilo Yonos Para 15/6 |
| HE connection size | G3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating circuit - control | Thermostatic valve |
| Heating control type | Thermostatic + Differential pressure |
| Material Description (Short Te | Akva Vita Low Temp S XB37H-30 |
| Package depth [mm] | 150 mm |
| Package height [mm] | 620 mm |
| Package width [mm] | 580 mm |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| Redan APP Diagram | No |
| Supply temperature construction [˚C] | 95 °C |
| Type | Akva Vita II |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 145B3032
Основные характеристики
- 0-series required
- No
- Additional information
- Direct HE with differential pressure controllerSafety functionThermostatic mixing circuit
- Application type
- DHW, HE direct
- Connection direction
- Bottom
- DCW static pressure [bar] [Min]
- 2 bar
- Description
- Akva Vita MSS Low Temp S XB37H-30 PM
- DH connection size
- G3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW]
- 58 kW
- DHW circulation
- Extra
- DHW connection size
- G3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow
- DHW controller name
- PM
- DHW HEX type
- XB37
- DHW pipe size
- Ø18
- Differential pressure controller
- AVPL
- Floor heating circuit - pump brand
- Wilo
- Floor heating circuit - pump type
- Wilo Yonos Para 15/6
- Gross weight
- 23 kg
- HE connection size
- G3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating circuit - control
- Thermostatic valve
- Heating control type
- Thermostatic + Differential pressure
- Material Description (Short Te
- Akva Vita Low Temp S XB37H-30
- Net weight
- 22.5 kg
- Package depth [mm]
- 150 mm
- Package height [mm]
- 620 mm
- Package width [mm]
- 580 mm
- Pressure nominal primary [bar]
- 10 bar
- Pressure nominal secondary [bar]
- 10 bar
- Product group
- Small Stations
- Redan APP Diagram
- No
- Supply temperature construction [˚C]
- 95 °C
- TYPE
- Akva Vita II
