Артикул: 145B3035

В наличии

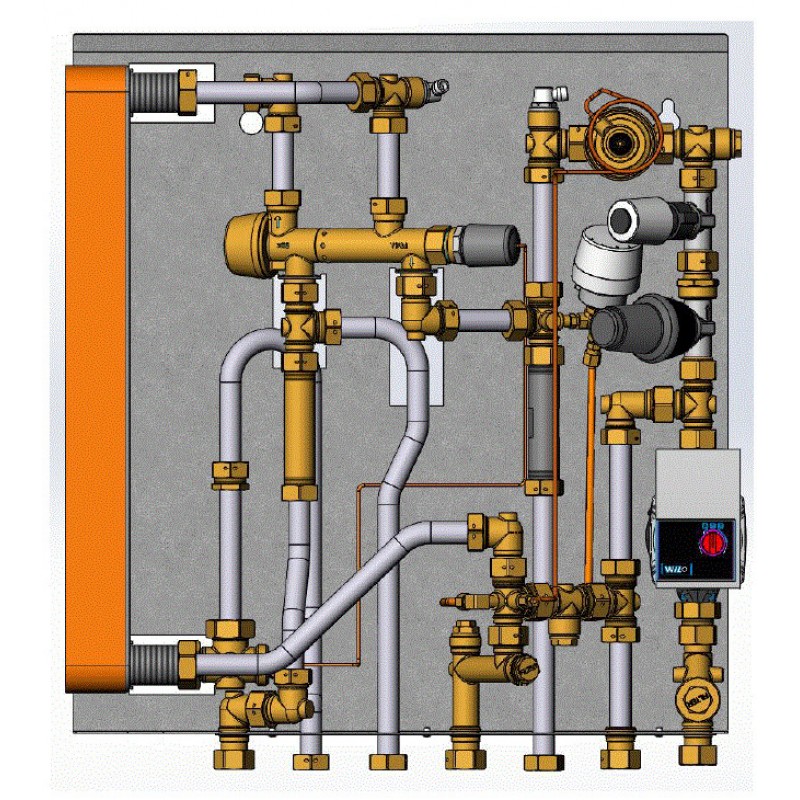

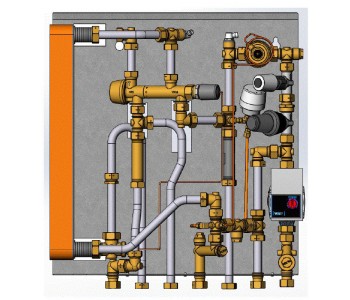

Danfoss 145B3035 - Akva Lux II, 10 bar, 95 °C, DHW controller name: PTC

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 145B3035 - Akva Lux II, 10 bar, 95 °C, DHW controller name: PTC

Akva Lux MSS High Flow S XB37H-30 PTC

Информация о продукте

Gross weight 23 kg
Net weight 22.5 kg
EAN 5702428532440



0-series completed date 2.0180417000000000E+07
0-series required Yes
Additional information Direct HE with differential pressure controller, Safety function, Thermostatic mixing circuit
Application type DHW, HE direct
Connection direction Bottom
Current max. [A] 10 A
DCW static pressure [bar] [Min] 2 bar
Depth with cover [mm] 200 mm
Depth without cover [mm] 150 mm
Description Akva Lux MSS High Flow S XB37H-30 PTC
DH connection size G3/4"
DH connection type G int. Thread
DH pipe size Ø18
DHW capacity [kW] 78 kW
DHW circulation Extra
DHW connection size G3/4"
DHW connection type G int. Thread
DHW Control type Flow/thermostatic
DHW controller name PTC
DHW HEX type XB37
DHW pipe size Ø18
Differential pressure controller AVPL
EAN_Code_Danfoss 5702428532440
Floor heating circuit - pump brand Wilo
Floor heating circuit - pump type Wilo Yonos Para 15/6
Frequency [Hz] (2) 50 Hz
HE connection size G3/4"
HE connection type G int. Thread
HE pipe size Ø18
Heating circuit - control Thermostatic valve
Heating control type Thermostatic + Differential pressure
Height with cover [mm] 740 mm
Height without cover [mm] 616 mm
Manufacturer's name Danfoss
Material Description (Short Te Akva Lux High Flow AT S XB37H-
Operating temp max. [°C] 90 °C
Package depth [mm] 150 mm
Package height [mm] 620 mm
Package width [mm] 580 mm
Packing format Single pack
Power supply [V] AC 230 V
Power supply tolerance [%] 1 %
Pressure nominal primary [bar] 10 bar
Pressure nominal secondary [bar] 10 bar
Pri side opr press max[bar] 10 bar
Product group Small Stations
Protection class IP41
Quantity per packing format 1 pc
Redan APP Diagram No
Sec side opr press max[bar] 10 bar
Supply temperature construction [˚C] 95 °C
Total volume max. [l] 5 L
Type Akva Lux II

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 145B3035

Основные характеристики

0-series completed date
2.0180417000000000E+07
0-series required
Yes
Additional information
Direct HE with differential pressure controllerSafety functionThermostatic mixing circuit
Application type
DHW, HE direct
Connection direction
Bottom
Current max. [A]
10 A
DCW static pressure [bar] [Min]
2 bar
Depth with cover [mm]
200 mm
Depth without cover [mm]
150 mm
Description
Akva Lux MSS High Flow S XB37H-30 PTC
DH connection size
G3/4"
DH connection type
G int. Thread
DH pipe size
Ø18
DHW capacity [kW]
78 kW
DHW circulation
Extra
DHW connection size
G3/4"
DHW connection type
G int. Thread
DHW Control type
Flow/thermostatic
DHW controller name
PTC
DHW HEX type
XB37
DHW pipe size
Ø18
Differential pressure controller
AVPL
EAN
5702428532440
EAN_Code_Danfoss
5702428532440
Floor heating circuit - pump brand
Wilo
Floor heating circuit - pump type
Wilo Yonos Para 15/6
Frequency [Hz] (2)
50 Hz
Gross weight
23 kg
HE connection size
G3/4"
HE connection type
G int. Thread
HE pipe size
Ø18
Heating circuit - control
Thermostatic valve
Heating control type
Thermostatic + Differential pressure
Height with cover [mm]
740 mm
Height without cover [mm]
616 mm
Manufacturer's name
Danfoss
Material Description (Short Te
Akva Lux High Flow AT S XB37H-
Net weight
22.5 kg
Operating temp max. [°C]
90 °C
Package depth [mm]
150 mm
Package height [mm]
620 mm
Package width [mm]
580 mm
Packing format
Single pack
Power supply tolerance [%]
1 %
Power supply [V] AC
230 V
Pressure nominal primary [bar]
10 bar
Pressure nominal secondary [bar]
10 bar
Pri side opr press max[bar]
10 bar
Product group
Small Stations
Protection class
IP41
Quantity per packing format
1 pc
Redan APP Diagram
No
Sec side opr press max[bar]
10 bar
Supply temperature construction [˚C]
95 °C
Total volume max. [l]
5 L
TYPE
Akva Lux II
