Артикул: 145G0226
В наличии
Danfoss 145G0226 - Akva Lux II, 10 bar, 95 °C, DHW controller name: PTC
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

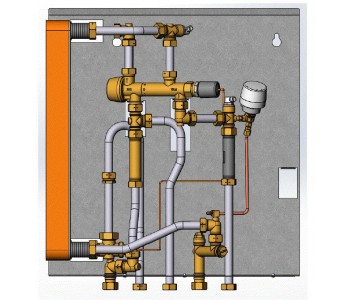

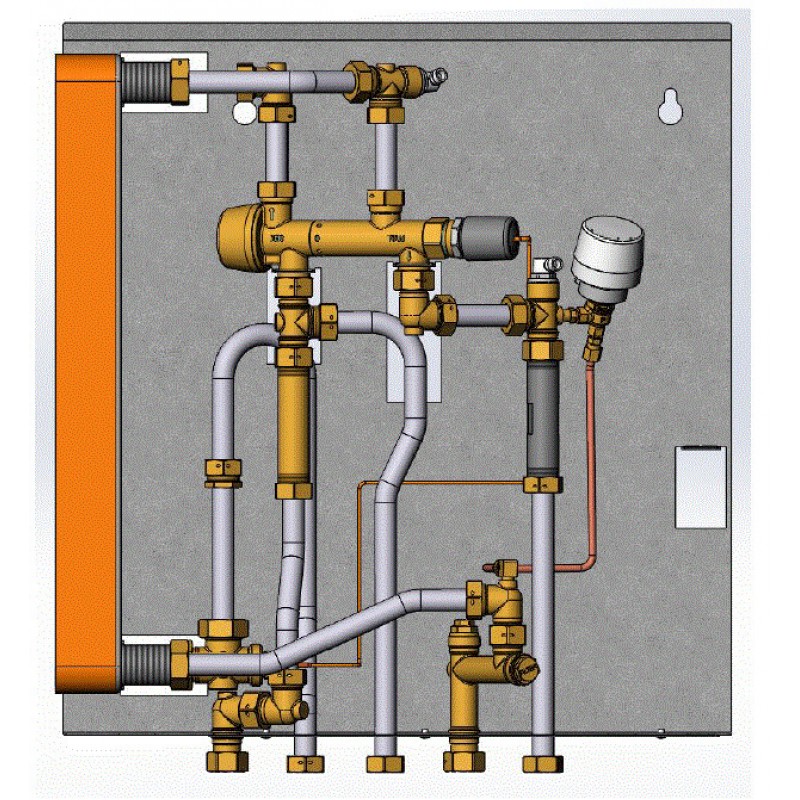

Danfoss 145G0226 - Akva Lux II, 10 bar, 95 °C, DHW controller name: PTC
Akva Lux WSS High Flow DHW XB37H-30 PTC
Информация о продукте
| Gross weight | 18 kg |
| Net weight | 17.5 kg |
| Gross weight | 18 kg |
| Net weight | 17.5 kg |
| 0-series required | No |
| Additional information | DHW |
| Application type | DHW |
| Connection direction | Bottom |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 200 mm |
| Depth without cover [mm] | 150 mm |
| Description | Akva Lux WSS High Flow DHW XB37H-30 PTC |
| DH connection size | G3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 78 kW |
| DHW circulation | Extra |
| DHW connection size | G3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | PTC |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating control type | Thermostatic/Electronic |
| Heating HEX type | XB37H-1 30 |
| Height with cover [mm] | 740 mm |
| Height without cover [mm] | 616 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Material Description (Short Te | Akva Lux High Flow AT DHW XB37 |
| Operating temp max. [°C] | 90 °C |
| Package depth [mm] | 150 mm |
| Package height [mm] | 620 mm |
| Package width [mm] | 580 mm |
| Packing format | Single pack |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Pri side opr press max[bar] | 10 bar |
| Product group | Small Stations |
| Quantity per packing format | 1 pc |
| Redan APP Diagram | No |
| Sec side opr press max[bar] | 10 bar |
| Supply temperature construction [˚C] | 95 °C |
| Total volume max. [l] | 5 L |
| Type | Akva Lux II |
| 0-series required | No |
| Additional information | DHW |
| Application type | DHW |
| Connection direction | Bottom |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 200 mm |
| Depth without cover [mm] | 150 mm |
| Description | Akva Lux WSS High Flow DHW XB37H-30 PTC |
| DH connection size | G3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] | 78 kW |
| DHW circulation | Extra |
| DHW connection size | G3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | PTC |
| DHW HEX type | XB37 |
| DHW pipe size | Ø18 |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heating control type | Thermostatic/Electronic |
| Heating HEX type | XB37H-1 30 |
| Height with cover [mm] | 740 mm |
| Height without cover [mm] | 616 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| Material Description (Short Te | Akva Lux High Flow AT DHW XB37 |
| Operating temp max. [°C] | 90 °C |
| Package depth [mm] | 150 mm |
| Package height [mm] | 620 mm |
| Package width [mm] | 580 mm |
| Packing format | Single pack |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Pri side opr press max[bar] | 10 bar |
| Product group | Small Stations |
| Quantity per packing format | 1 pc |
| Redan APP Diagram | No |
| Sec side opr press max[bar] | 10 bar |
| Supply temperature construction [˚C] | 95 °C |
| Total volume max. [l] | 5 L |
| Type | Akva Lux II |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 145G0226
Основные характеристики
- 0-series required
- No
- Additional information
- DHW
- Application type
- DHW
- Connection direction
- Bottom
- DCW static pressure [bar] [Min]
- 2 bar
- Depth with cover [mm]
- 200 mm
- Depth without cover [mm]
- 150 mm
- Description
- Akva Lux WSS High Flow DHW XB37H-30 PTC
- DH connection size
- G3/4"
- DH connection type
- G int. Thread
- DH pipe size
- Ø18
- DHW capacity [kW]
- 78 kW
- DHW circulation
- Extra
- DHW connection size
- G3/4"
- DHW connection type
- G int. Thread
- DHW Control type
- Flow/thermostatic
- DHW controller name
- PTC
- DHW HEX type
- XB37
- DHW pipe size
- Ø18
- Gross weight
- 18 kg
- HE connection size
- 3/4"
- HE connection type
- G int. Thread
- HE pipe size
- Ø18
- Heating control type
- Thermostatic/Electronic
- Heating HEX type
- XB37H-1 30
- Height with cover [mm]
- 740 mm
- Height without cover [mm]
- 616 mm
- HEX heating brazing material
- Copper
- HEX heating type
- Brazed
- Material Description (Short Te
- Akva Lux High Flow AT DHW XB37
- Net weight
- 17.5 kg
- Operating temp max. [°C]
- 90 °C
- Package depth [mm]
- 150 mm
- Package height [mm]
- 620 mm
- Package width [mm]
- 580 mm
- Packing format
- Single pack
- Pressure nominal primary [bar]
- 10 bar
- Pressure nominal secondary [bar]
- 10 bar
- Pri side opr press max[bar]
- 10 bar
- Product group
- Small Stations
- Quantity per packing format
- 1 pc
- Redan APP Diagram
- No
- Sec side opr press max[bar]
- 10 bar
- Supply temperature construction [˚C]
- 95 °C
- Total volume max. [l]
- 5 L
- TYPE
- Akva Lux II
