Артикул: 146B8016

В наличии

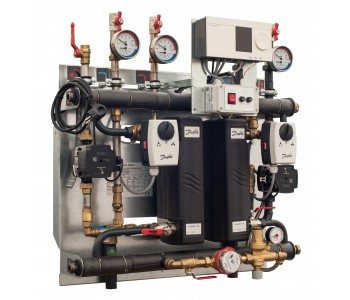

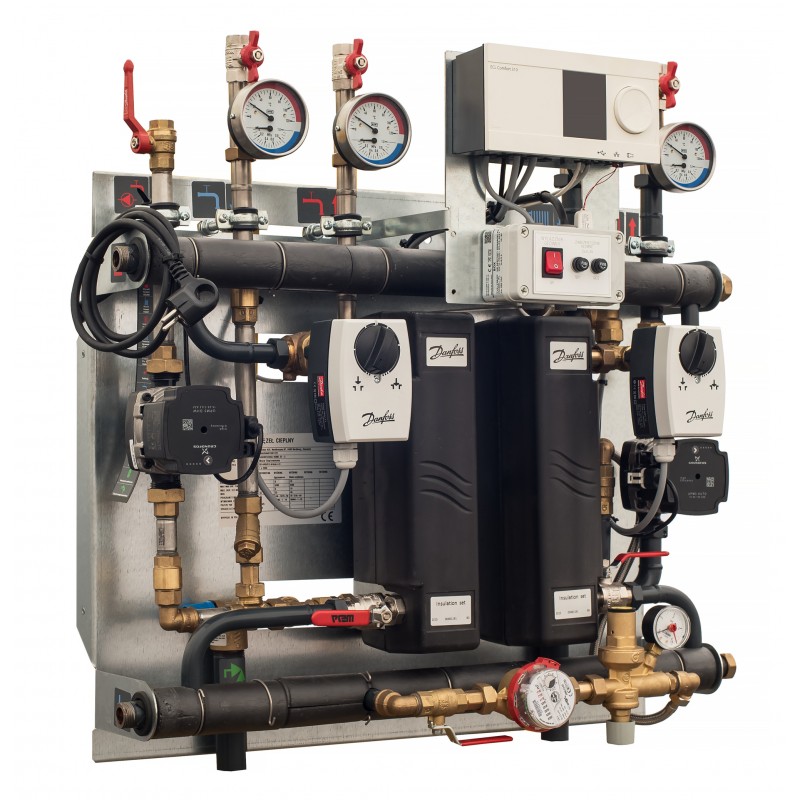

Danfoss 146B8016 - Substations, DSA2 HOME, 2F-⁠4 +ST, 65.0 kW, Heating controller name: ECL310, DHW controller name: ECL310

Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.

Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Вы можете добавить файлы с реквизитами компании, спецификацией или ТЗ

Не отвечаем 5 минут — скидка на весь заказ!

sale@df-russia.ru

Нужна скидка? Звони — сделаем лучшее предложение

+7 495 266-67-99

Работаем по всей России

Возможны самовывоз и доставка по всей территории России

Надежность

Профессиональная поддержка

Danfoss 146B8016 - Substations, DSA2 HOME, 2F-4 +ST, 65.0 kW, Heating controller name: ECL310, DHW controller name: ECL310

DSA HOME 2F-4 + ST

Информация о продукте

Gross weight 15 kg
Net weight 15 kg



Allowed temperature [˚C] [Min] 2 °C
Application District Heating
Application type Heating/DHW indirect
Approvals CE
Capacity [kW] 65 kW
Category name Indirect heating and DHW substations
Circulation pipe size DN15
Circulation connection size G3/4"
Circulation connection type internal thread
Connection direction Up
Connection direction primary and secondary Left / Right
Cover material White-lacquered steel sheet
Cover option Yes
Delta P primary without heat meter [bar] [Min] 25 bar
Depth with cover [mm] 350 mm
Depth without cover [mm] 350 mm
Description DSA HOME 2F-4 + ST
DH connection size G3/4"
DH connection type external thread
DH pipe size DN20
DHW circulation Yes
DHW circulation pump brand Grundfos
DHW circulation pump type UPM3 DHW 15-20
DHW connection size G3/4"
DHW connection type internal thread
DHW Control type Electronic
DHW controller name ECL310
DHW HEX type XB06H-1 20
DHW pipe size DN15
Flow primary [m3/h] [Max] 12 m³/h
HE connection size G3/4"
HE connection type internal thread
HE pipe size DN20
Heating control type Electronic
Heating controller name ECL310
Heating HEX type XB06L-1-16
Heating pump brand Grundfos
Heating pump type UPM3 AUTO 15-70
Height with cover [mm] 810 mm
Height without cover [mm] 810 mm
HEX DHW alloy 1.4404
HEX DHW brazing material Copper
HEX DHW type Brazed
HEX heating alloy 1.4404
HEX heating brazing material Copper
HEX heating type Brazed
Insulation material PU Hard Foam+EPP
Manufacturer's name Danfoss
Number of DHW circuits 1
Number of heating circuits 1
Number of households [Max] 4
Number of households [Min] 1
Package depth [mm] 800 mm
Package height [mm] 800 mm
Package width [mm] 1200 mm
PED category § 4.3
Pressure nominal primary [bar] 14 bar
Pressure nominal secondary [bar] 10 bar
Pressure primary [bar] [Max] 14 bar
Pressure secondary [bar] [Max] 10 bar
Product group Substations
Substation version 2F-4 +ST
Supply temperature construction [˚C] 130 °C
Supply voltage [V] AC 230 V
Type DSA2 HOME
Width with cover [mm] 810 mm
Width without cover [mm] 800 mm

Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.

Технические характеристики 146B8016

Основные характеристики

Allowed temperature [˚C] [Min]
2 °C
Application
District Heating
Application type
Heating/DHW indirect
Approvals
CE
Capacity [kW]
65 kW
Category name
Indirect heating and DHW substations
Circulation pipe size
DN15
Circulation connection size
G3/4"
Circulation connection type
internal thread
Connection direction
Up
Connection direction primary and secondary
Left / Right
Cover material
White-lacquered steel sheet
Cover option
Yes
Delta P primary without heat meter [bar] [Min]
25 bar
Depth with cover [mm]
350 mm
Depth without cover [mm]
350 mm
Description
DSA HOME 2F-4 + ST
DH connection size
G3/4"
DH connection type
external thread
DH pipe size
DN20
DHW circulation
Yes
DHW circulation pump brand
Grundfos
DHW circulation pump type
UPM3 DHW 15-20
DHW connection size
G3/4"
DHW connection type
internal thread
DHW Control type
Electronic
DHW controller name
ECL310
DHW HEX type
XB06H-1 20
DHW pipe size
DN15
Flow primary [m3/h] [Max]
12 m³/h
Gross weight
15 kg
HE connection size
G3/4"
HE connection type
internal thread
HE pipe size
DN20
Heating control type
Electronic
Heating controller name
ECL310
Heating HEX type
XB06L-1-16
Heating pump brand
Grundfos
Heating pump type
UPM3 AUTO 15-70
Height with cover [mm]
810 mm
Height without cover [mm]
810 mm
HEX DHW alloy
1.4404
HEX DHW brazing material
Copper
HEX DHW type
Brazed
HEX heating alloy
1.4404
HEX heating brazing material
Copper
HEX heating type
Brazed
Insulation material
PU Hard Foam+EPP
Manufacturer's name
Danfoss
Net weight
15 kg
Number of DHW circuits
1
Number of heating circuits
1
Number of households [Max]
4
Number of households [Min]
1
Package depth [mm]
800 mm
Package height [mm]
800 mm
Package width [mm]
1200 mm
PED category
§ 4.3
Pressure nominal primary [bar]
14 bar
Pressure nominal secondary [bar]
10 bar
Pressure primary [bar] [Max]
14 bar
Pressure secondary [bar] [Max]
10 bar
Product group
Substations
Substation version
2F-4 +ST
Supply temperature construction [˚C]
130 °C
Supply voltage [V] AC
230 V
TYPE
DSA2 HOME
Width with cover [mm]
810 mm
Width without cover [mm]
800 mm
