Артикул: 180B3108
В наличии

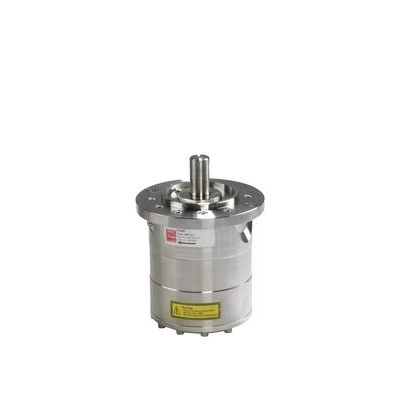

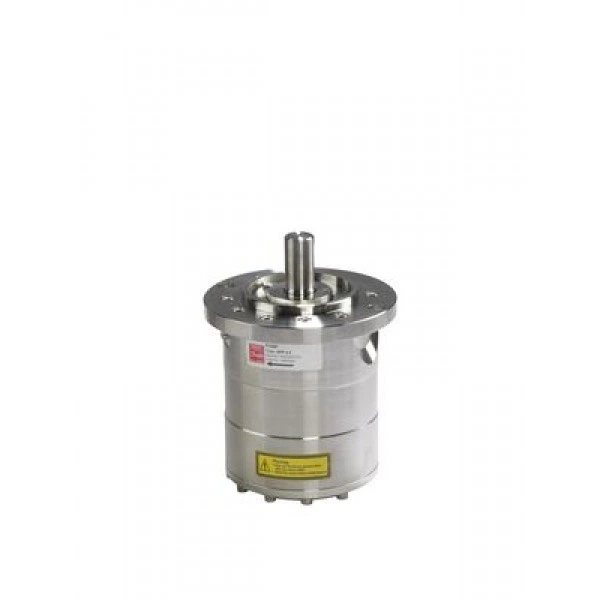

Danfoss 180B3108 - Pump, APP 8.2 Ex
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Подберем решение под ваши задачи
Поможем выбрать подходящий вариант, проверим совместимость и подготовим коммерческое предложение
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 180B3108 - Pump, APP 8.2 Ex
Flow [gpm] [Max]: 36.010, Flow [l/min] [Max]: 138.500, Outlet pressure [barg] [Max]: 83, Speed [rpm] [Max]: 1800, Speed [rpm] [Min]: 700, ATEX compliance: Ex II 2G cb T6 / Ex II 3G c T6, Body material: Duplex
Информация о продукте
| Gross weight | 29.45 kg |
| Net weight | 28.84 kg |
| Gross weight | 29.45 kg |
| Net weight | 28.84 kg |
| Ambient temperature [°C] [Max] | 50 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Ambient temperature [°F] [Max] | 122 °F |
| Ambient temperature [°F] [Min] | 32 °F |
| ATEX compliance | Ex II 2G cb T6 / Ex II 3G c T6 |
| Body material | Duplex |
| Country of origin | Denmark |
| Description | APP 8.2 Ex |
| Displacement [cm³/rev] | 80.4 cm³/rev |
| Displacement [in³/rev] | 4.91 in³/rev |
| Drain connection size (metric) | M6 |
| Drain connection standard | Metric |
| Drain connection type | Thread |
| Flow [gpm] [Max] | 36.01 gal/min |
| Flow [gpm] [Min] | 13.01 gal/min |
| Flow [l/min] [Max] | 138.5 L/min |
| Flow [l/min] [Min] | 50.06 L/min |
| Flow [m³/h] [Max] | 8.31 m³/h |
| Flow [m³/h] [Min] | 3 m³/h |
| Inlet connection size (metric) | M42 |
| Inlet connection standard | Metric |
| Inlet connection type | Thread |
| Inlet pressure [barg] [Max] | 5 barg |
| Inlet pressure [barg] [Min] | 0.5 barg |
| Inlet pressure [psig] [Max] | 72.5 psig |
| Inlet pressure [psig] [Min] | 7.3 psig |
| Inlet pressure peak [barg] [Max] | 5 barg |
| Inlet pressure peak [psig] [Max] | 73 psig |
| Media temperature [°C] [Max] | 50 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 122 °F |
| Media temperature [°F] [Min] | 36 °F |
| Outlet connection size (metric) | M42 |
| Outlet connection standard | Metric |
| Outlet connection type | Thread |
| Outlet pressure [barg] [Max] | 83 barg |
| Outlet pressure [barg] [Min] | 20 barg |
| Outlet pressure [psig] [Max] | 1200 psig |
| Outlet pressure [psig] [Min] | 290 psig |
| Outside dimensions of packaging LxWxH [in] | 14,9x11,8x11,8 |
| Outside dimensions of packaging LxWxH [mm] | 380x300x300 |
| Product group | Pump |
| Product name | APP pumps |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 78 dBA |
| Speed [rpm] [Max] | 1800 rpm |
| Speed [rpm] [Min] | 700 rpm |
| Speed continuous [rpm] [Min] | 700 rpm |
| TYPE | APP |
| Type | APP 5.1-10.2 |
| Type designation | APP 8.2 Ex |
| Ambient temperature [°C] [Max] | 50 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Ambient temperature [°F] [Max] | 122 °F |
| Ambient temperature [°F] [Min] | 32 °F |
| ATEX compliance | Ex II 2G cb T6 / Ex II 3G c T6 |
| Body material | Duplex |
| Country of origin | Denmark |
| Description | APP 8.2 Ex |
| Displacement [cm³/rev] | 80.4 cm³/rev |
| Displacement [in³/rev] | 4.91 in³/rev |
| Drain connection size (metric) | M6 |
| Drain connection standard | Metric |
| Drain connection type | Thread |
| Flow [gpm] [Max] | 36.01 gal/min |
| Flow [gpm] [Min] | 13.01 gal/min |
| Flow [l/min] [Max] | 138.5 L/min |
| Flow [l/min] [Min] | 50.06 L/min |
| Flow [m³/h] [Max] | 8.31 m³/h |
| Flow [m³/h] [Min] | 3 m³/h |
| Inlet connection size (metric) | M42 |
| Inlet connection standard | Metric |
| Inlet connection type | Thread |
| Inlet pressure [barg] [Max] | 5 barg |
| Inlet pressure [barg] [Min] | 0.5 barg |
| Inlet pressure [psig] [Max] | 72.5 psig |
| Inlet pressure [psig] [Min] | 7.3 psig |
| Inlet pressure peak [barg] [Max] | 5 barg |
| Inlet pressure peak [psig] [Max] | 73 psig |
| Media temperature [°C] [Max] | 50 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 122 °F |
| Media temperature [°F] [Min] | 36 °F |
| Outlet connection size (metric) | M42 |
| Outlet connection standard | Metric |
| Outlet connection type | Thread |
| Outlet pressure [barg] [Max] | 83 barg |
| Outlet pressure [barg] [Min] | 20 barg |
| Outlet pressure [psig] [Max] | 1200 psig |
| Outlet pressure [psig] [Min] | 290 psig |
| Outside dimensions of packaging LxWxH [in] | 14,9x11,8x11,8 |
| Outside dimensions of packaging LxWxH [mm] | 380x300x300 |
| Product group | Pump |
| Product name | APP pumps |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 78 dBA |
| Speed [rpm] [Max] | 1800 rpm |
| Speed [rpm] [Min] | 700 rpm |
| Speed continuous [rpm] [Min] | 700 rpm |
| TYPE | APP |
| Type | APP 5.1-10.2 |
| Type designation | APP 8.2 Ex |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 180B3108
Основные характеристики
- Ambient temperature [°C] [Max]
- 50 °C
- Ambient temperature [°C] [Min]
- 0 °C
- Ambient temperature [°F] [Max]
- 122 °F
- Ambient temperature [°F] [Min]
- 32 °F
- ATEX compliance
- Ex II 2G cb T6 / Ex II 3G c T6
- Body material
- Duplex
- Country of origin
- Denmark
- Description
- APP 8.2 Ex
- Displacement [cm³/rev]
- 80.4 cm³/rev
- Displacement [in³/rev]
- 4.91 in³/rev
- Drain connection size (metric)
- M6
- Drain connection standard
- Metric
- Drain connection type
- Thread
- Flow [gpm] [Max]
- 36.01 gal/min
- Flow [gpm] [Min]
- 13.01 gal/min
- Flow [l/min] [Max]
- 138.5 L/min
- Flow [l/min] [Min]
- 50.06 L/min
- Flow [m³/h] [Max]
- 8.31 m³/h
- Flow [m³/h] [Min]
- 3 m³/h
- Gross weight
- 29.45 kg
- Inlet connection size (metric)
- M42
- Inlet connection standard
- Metric
- Inlet connection type
- Thread
- Inlet pressure peak [barg] [Max]
- 5 barg
- Inlet pressure peak [psig] [Max]
- 73 psig
- Inlet pressure [barg] [Max]
- 5 barg
- Inlet pressure [barg] [Min]
- 0.5 barg
- Inlet pressure [psig] [Max]
- 72.5 psig
- Inlet pressure [psig] [Min]
- 7.3 psig
- Media temperature [°C] [Max]
- 50 °C
- Media temperature [°C] [Min]
- 2 °C
- Media temperature [°F] [Max]
- 122 °F
- Media temperature [°F] [Min]
- 36 °F
- Net weight
- 28.84 kg
- Outlet connection size (metric)
- M42
- Outlet connection standard
- Metric
- Outlet connection type
- Thread
- Outlet pressure [barg] [Max]
- 83 barg
- Outlet pressure [barg] [Min]
- 20 barg
- Outlet pressure [psig] [Max]
- 1200 psig
- Outlet pressure [psig] [Min]
- 290 psig
- Outside dimensions of packaging LxWxH [in]
- 14,9x11,8x11,8
- Outside dimensions of packaging LxWxH [mm]
- 380x300x300
- Product group
- Pump
- Product name
- APP pumps
- Seal Material
- NBR
- Serviceable
- Yes
- Sound pressure level [dB(A)]
- 78 dBA
- Speed continuous [rpm] [Min]
- 700 rpm
- Speed [rpm] [Max]
- 1800 rpm
- Speed [rpm] [Min]
- 700 rpm
- TYPE
- APP 5.1-10.2
- Type designation
- APP 8.2 Ex
