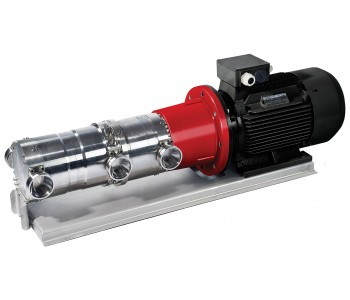

Danfoss 180F7004 - Energy Recovery Device, iSave 40
Speed [rpm] [Min]: 600, Mounting orientation: Horizontal, Motor standard: IEC, Speed [rpm] [Max]: 1200, HP out flow [m³/h] [Max]: 41, HP out flow [gpm] [Max]: 181
Информация о продукте
| Gross weight | 330 kg |
| Net weight | 295 kg |
| Gross weight | 330 kg |
| Net weight | 295 kg |
| Allowable working torque [lbf·ft] [Max] | 75 lbf∙ft |
| Allowable working torque [Nm] [Max] | 102 Nm |
| Ambient temperature [°C] [Max] | 50 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Ambient temperature [°F] [Max] | 122 °F |
| Ambient temperature [°F] [Min] | 32 °F |
| Base frame | Stainless |
| Country of origin | Denmark |
| Description | iSave with IEC motor |
| Differential pressure HP in out [barg] [Max] | 5 barg |
| Differential pressure HP in out [psig] [Max] | 72 psig |
| Drain connection size [in] | 1/4 in |
| Drain connection standard | BSPP |
| Drain connection type | BSPP |
| Flow [gpm] [Min] | 92 gal/min |
| Flow [m³/h] [Min] | 21 m³/h |
| HP inlet connection size [in] | 3 in |
| HP Inlet connection standard | Victaulic |
| HP inlet pressure [barg] [Max] | 83 barg |
| HP inlet pressure [barg] [Min] | 20 barg |
| HP inlet pressure [psig] [Max] | 1200 psig |
| HP inlet pressure [psig] [Min] | 290 psig |
| HP inlet pressure, intermittent [barg] [Min] | 3 barg |
| HP inlet pressure, intermittent [psig] [Min] | 44 psig |
| HP out flow [gpm] [Max] | 181 gal/min |
| HP out flow [m³/h] [Max] | 41 m³/h |
| HP outlet connection size [in] | 3 in |
| HP Outlet connection standard | Victaulic |
| HP outlet pressure [barg] [Max] | 83 barg |
| HP outlet pressure [psig] [Max] | 1200 psig |
| IP protection class | IP55 |
| LP in out @ max flow [psig] | 18 psig |
| LP in out @ max. flow [barg] | 1 barg |
| LP inlet allowable working flow [gpm] [Max] | 295 gal/min |
| LP inlet allowable working flow [m³/h] [Max] | 67 m³/h |
| LP inlet connection size [in] | 3 in |
| LP Inlet connection standard | Victaulic |
| LP inlet pressure [barg] [Max] | 5 barg |
| LP inlet pressure [psig] [Max] | 72 psig |
| LP Inlet pressure peak [barg] | 10 barg |
| LP Inlet pressure peak [psig] | 145 barg |
| LP outlet connection size [in] | 3 in |
| LP outlet pressure [barg] [Min] | 1 barg |
| LP outlet pressure [psig] [Min] | 15 psig |
| Lubrication flow at 60 [m³/h] [Max] | 0.8 m³/h |
| Lubrication flow at 871 [gpm] [Max] | 3.5 gal/min |
| Material type | Duplex, Super Duplex |
| Media temperature [°C] [Max] | 40 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 104 °F |
| Media temperature [°F] [Min] | 36 °F |
| Motor ambient temperature [°C] [Max] | 40 °C |
| Motor ambient temperature [°F] [Max] | 104 °F |
| Motor current [A] | 30 A |
| Motor frame Size | 180L |
| Motor insulation class | B |
| Motor poles | 6 |
| Motor standard | IEC |
| Motor torque at min. speed [lbf·ft] | 95 lbf∙ft |
| Motor torque at min. speed [Nm] | 129 Nm |
| Motor Torque at nom. speed [lbf·ft] | 107.7 lbf∙ft |
| Motor torque at nom. speed [Nm] | 146 Nm |
| Motor voltage | 380-420V/660720V, 50 Hz, 440-480V, 60 Hz |
| Mounting orientation | Horizontal |
| Outside dimensions of packaging LxWxH [in] | 57,3x20,8x29 |
| Outside dimensions of packaging LxWxH [mm] | 1460x530x740 |
| Product group | Energy Recovery Device |
| Product name | iSave |
| Rated power [HP] | 20 hp |
| Rated power [kW] | 15 kW |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 84 dBA |
| Speed [rpm] [Max] | 1200 rpm |
| Speed [rpm] [Min] | 600 rpm |
| Starting torque [lbf·ft] [Max] | 110 lbf∙ft |
| Starting torque [Nm] [Max] | 150 Nm |
| Type | iSave 40 |
| Type designation | ISAVE 40 |
| Allowable working torque [lbf·ft] [Max] | 75 lbf∙ft |
| Allowable working torque [Nm] [Max] | 102 Nm |
| Ambient temperature [°C] [Max] | 50 °C |
| Ambient temperature [°C] [Min] | 0 °C |
| Ambient temperature [°F] [Max] | 122 °F |
| Ambient temperature [°F] [Min] | 32 °F |
| Base frame | Stainless |
| Country of origin | Denmark |
| Description | iSave with IEC motor |
| Differential pressure HP in out [barg] [Max] | 5 barg |
| Differential pressure HP in out [psig] [Max] | 72 psig |
| Drain connection size [in] | 1/4 in |
| Drain connection standard | BSPP |
| Drain connection type | BSPP |
| Flow [gpm] [Min] | 92 gal/min |
| Flow [m³/h] [Min] | 21 m³/h |
| HP inlet connection size [in] | 3 in |
| HP Inlet connection standard | Victaulic |
| HP inlet pressure [barg] [Max] | 83 barg |
| HP inlet pressure [barg] [Min] | 20 barg |
| HP inlet pressure [psig] [Max] | 1200 psig |
| HP inlet pressure [psig] [Min] | 290 psig |
| HP inlet pressure, intermittent [barg] [Min] | 3 barg |
| HP inlet pressure, intermittent [psig] [Min] | 44 psig |
| HP out flow [gpm] [Max] | 181 gal/min |
| HP out flow [m³/h] [Max] | 41 m³/h |
| HP outlet connection size [in] | 3 in |
| HP Outlet connection standard | Victaulic |
| HP outlet pressure [barg] [Max] | 83 barg |
| HP outlet pressure [psig] [Max] | 1200 psig |
| IP protection class | IP55 |
| LP in out @ max flow [psig] | 18 psig |
| LP in out @ max. flow [barg] | 1 barg |
| LP inlet allowable working flow [gpm] [Max] | 295 gal/min |
| LP inlet allowable working flow [m³/h] [Max] | 67 m³/h |
| LP inlet connection size [in] | 3 in |
| LP Inlet connection standard | Victaulic |
| LP inlet pressure [barg] [Max] | 5 barg |
| LP inlet pressure [psig] [Max] | 72 psig |
| LP Inlet pressure peak [barg] | 10 barg |
| LP Inlet pressure peak [psig] | 145 barg |
| LP outlet connection size [in] | 3 in |
| LP outlet pressure [barg] [Min] | 1 barg |
| LP outlet pressure [psig] [Min] | 15 psig |
| Lubrication flow at 60 [m³/h] [Max] | 0.8 m³/h |
| Lubrication flow at 871 [gpm] [Max] | 3.5 gal/min |
| Material type | Duplex, Super Duplex |
| Media temperature [°C] [Max] | 40 °C |
| Media temperature [°C] [Min] | 2 °C |
| Media temperature [°F] [Max] | 104 °F |
| Media temperature [°F] [Min] | 36 °F |
| Motor ambient temperature [°C] [Max] | 40 °C |
| Motor ambient temperature [°F] [Max] | 104 °F |
| Motor current [A] | 30 A |
| Motor frame Size | 180L |
| Motor insulation class | B |
| Motor poles | 6 |
| Motor standard | IEC |
| Motor torque at min. speed [lbf·ft] | 95 lbf∙ft |
| Motor torque at min. speed [Nm] | 129 Nm |
| Motor Torque at nom. speed [lbf·ft] | 107.7 lbf∙ft |
| Motor torque at nom. speed [Nm] | 146 Nm |
| Motor voltage | 380-420V/660720V, 50 Hz, 440-480V, 60 Hz |
| Mounting orientation | Horizontal |
| Outside dimensions of packaging LxWxH [in] | 57,3x20,8x29 |
| Outside dimensions of packaging LxWxH [mm] | 1460x530x740 |
| Product group | Energy Recovery Device |
| Product name | iSave |
| Rated power [HP] | 20 hp |
| Rated power [kW] | 15 kW |
| Seal Material | NBR |
| Serviceable | Yes |
| Sound pressure level [dB(A)] | 84 dBA |
| Speed [rpm] [Max] | 1200 rpm |
| Speed [rpm] [Min] | 600 rpm |
| Starting torque [lbf·ft] [Max] | 110 lbf∙ft |
| Starting torque [Nm] [Max] | 150 Nm |
| Type | iSave 40 |
| Type designation | ISAVE 40 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Основные характеристики
- Allowable working torque [lbf·ft] [Max]
- 75 lbf∙ft
- Allowable working torque [Nm] [Max]
- 102 Nm
- Ambient temperature [°C] [Max]
- 50 °C
- Ambient temperature [°C] [Min]
- 0 °C
- Ambient temperature [°F] [Max]
- 122 °F
- Ambient temperature [°F] [Min]
- 32 °F
- Base frame
- Stainless
- Country of origin
- Denmark
- Description
- iSave with IEC motor
- Differential pressure HP in out [barg] [Max]
- 5 barg
- Differential pressure HP in out [psig] [Max]
- 72 psig
- Drain connection size [in]
- 1/4 in
- Drain connection standard
- BSPP
- Drain connection type
- BSPP
- Flow [gpm] [Min]
- 92 gal/min
- Flow [m³/h] [Min]
- 21 m³/h
- Gross weight
- 330 kg
- HP inlet connection size [in]
- 3 in
- HP Inlet connection standard
- Victaulic
- HP inlet pressure [barg] [Max]
- 83 barg
- HP inlet pressure [barg] [Min]
- 20 barg
- HP inlet pressure [psig] [Max]
- 1200 psig
- HP inlet pressure [psig] [Min]
- 290 psig
- HP inlet pressure, intermittent [barg] [Min]
- 3 barg
- HP inlet pressure, intermittent [psig] [Min]
- 44 psig
- HP out flow [gpm] [Max]
- 181 gal/min
- HP out flow [m³/h] [Max]
- 41 m³/h
- HP outlet connection size [in]
- 3 in
- HP Outlet connection standard
- Victaulic
- HP outlet pressure [barg] [Max]
- 83 barg
- HP outlet pressure [psig] [Max]
- 1200 psig
- IP protection class
- IP55
- LP in out @ max flow [psig]
- 18 psig
- LP in out @ max. flow [barg]
- 1 barg
- LP inlet allowable working flow [gpm] [Max]
- 295 gal/min
- LP inlet allowable working flow [m³/h] [Max]
- 67 m³/h
- LP inlet connection size [in]
- 3 in
- LP Inlet connection standard
- Victaulic
- LP Inlet pressure peak [barg]
- 10 barg
- LP Inlet pressure peak [psig]
- 145 barg
- LP inlet pressure [barg] [Max]
- 5 barg
- LP inlet pressure [psig] [Max]
- 72 psig
- LP outlet connection size [in]
- 3 in
- LP outlet pressure [barg] [Min]
- 1 barg
- LP outlet pressure [psig] [Min]
- 15 psig
- Lubrication flow at 60 [m³/h] [Max]
- 0.8 m³/h
- Lubrication flow at 871 [gpm] [Max]
- 3.5 gal/min
- Material type
- DuplexSuper Duplex
- Media temperature [°C] [Max]
- 40 °C
- Media temperature [°C] [Min]
- 2 °C
- Media temperature [°F] [Max]
- 104 °F
- Media temperature [°F] [Min]
- 36 °F
- Motor ambient temperature [°C] [Max]
- 40 °C
- Motor ambient temperature [°F] [Max]
- 104 °F
- Motor current [A]
- 30 A
- Motor frame Size
- 180L
- Motor insulation class
- B
- Motor poles
- 6
- Motor standard
- IEC
- Motor torque at min. speed [lbf·ft]
- 95 lbf∙ft
- Motor torque at min. speed [Nm]
- 129 Nm
- Motor Torque at nom. speed [lbf·ft]
- 107.7 lbf∙ft
- Motor torque at nom. speed [Nm]
- 146 Nm
- Motor voltage
- 380-420V/660720V, 50 Hz440-480V, 60 Hz
- Mounting orientation
- Horizontal
- Net weight
- 295 kg
- Outside dimensions of packaging LxWxH [in]
- 57,3x20,8x29
- Outside dimensions of packaging LxWxH [mm]
- 1460x530x740
- Product group
- Energy Recovery Device
- Product name
- iSave
- Rated power [HP]
- 20 hp
- Rated power [kW]
- 15 kW
- Seal Material
- NBR
- Serviceable
- Yes
- Sound pressure level [dB(A)]
- 84 dBA
- Speed [rpm] [Max]
- 1200 rpm
- Speed [rpm] [Min]
- 600 rpm
- Starting torque [lbf·ft] [Max]
- 110 lbf∙ft
- Starting torque [Nm] [Max]
- 150 Nm
- TYPE
- iSave 40
- Type designation
- ISAVE 40
Мы предлагаем следующие способы доставки товара:
Самовывоз из пункта выдачи
Самостоятельное получение заказа в пункте выдачи. Дата и время получения заранее согласуется с менеджером магазина.
Курьерская доставка по Москве
Доставка по адресу покупателя или до пункта приема транспортной компании в г. Москве. Дата и время доставки заранее согласуется с менеджером магазина.
Доставка транспортной компанией по России
Доставка транспортной компанией по России до пункта выдачи транспортной компании или до конечного адреса покупателя.
Мы предлагаем следующие способы оплаты товара:
Оплата наличными
Оплата за наличный расчет для физических и юридических лиц. После внесения денежных средств Покупатель подписывает товаросопроводительные документы и получает кассовый чек.
Безналичная оплата
Мы работаем с физическими и юридическими лицами за безналичный расчёт со 100% предоплатой с оформлением всех предусмотренных законодательством документов. Счёт на оплату направляется Покупателю на электронную почту после запроса счета через форму на сайте либо по электронной почте. Цена на заказанный товар действительна в течение 2 дней с момента оформления Заказа.
Электронные способы
Оплата Заказа электронными способами, в т.ч. банковскими картами. Оплата Заказа данным способом доступна запросом ссылки на оплату у нашего менеджера.
Телефон: +7 495 266-67-99
E-mail: sale@df-russia.ru
Вся поставляемая продукция Danfoss имеет официальную гарантию.
Сервис гарантии включает в себя:
- Приемку в сервисном центре для выполнения диагностики дефекта.
- Ремонт.
- Бесплатную доставку клиенту после осуществления диагностики, ремонта или замены товара.
Контакты гарантийного отдела:
Телефон: +7 495 266-67-99E-mail: sale@df-russia.ru
Оставьте заявку в один клик и наш специалист свяжется с вами в кратчайшие сроки:
- Окажет профессиональную консультацию.
- Сообщит цену.
- Сообщит информацию об актуальных акциях и скидках.
- Подскажет ближайшее к вам отделение с наличием нужной продукции.
- Согласует с вами возможное время доставки.
E-mail: sale@df-russia.ru
Запрос цен, наличия или консультация
Пришлем актуальную информацию по ценам, скидкам, наличию товара на складе и срокам поставки
Нет отзывов об этом товаре.
