Артикул: 187F3030
В наличии

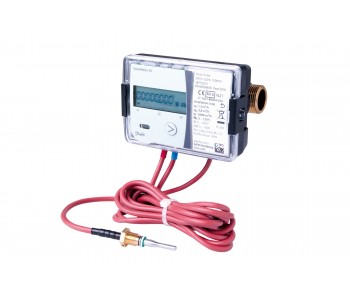

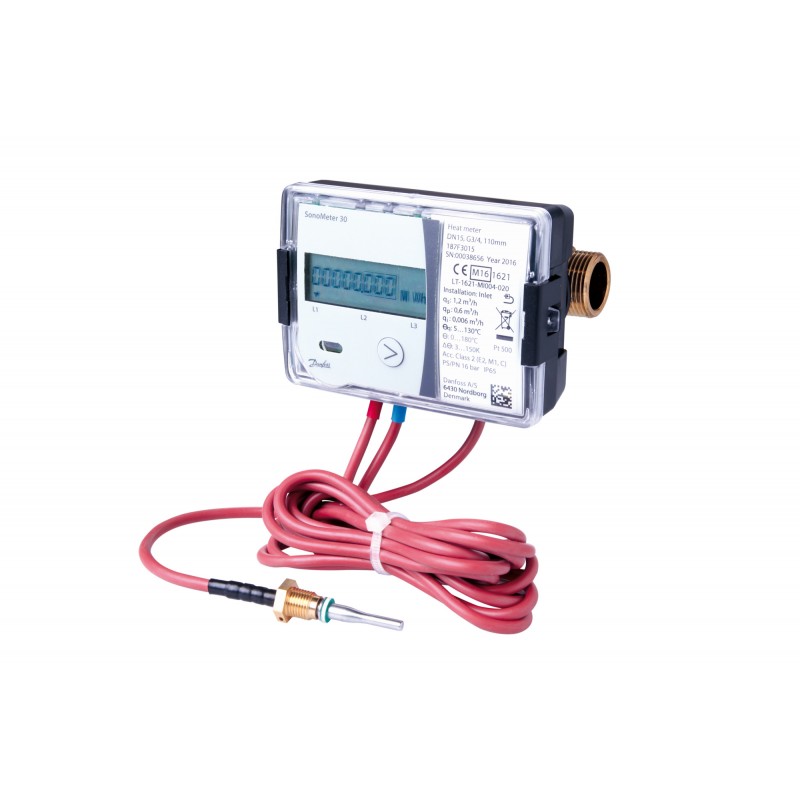

Danfoss 187F3030 - Energy meters, SonoMeter 30, 20 mm, Heating, battery 2 x AA-cell, Radio OMS 868.95 MHz
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 187F3030 - Energy meters, SonoMeter 30, 20 mm, Heating, battery 2 x AA-cell, Radio OMS 868.95 MHz
Energy meter for commercial applications
Информация о продукте
| Gross weight | 0.93 kg |
| Net weight | 0.92 kg |
| EAN | 5702428959940 |
| Gross weight | 0.93 kg |
| Net weight | 0.92 kg |
| EAN | 5702428959940 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Heating |
| Approval authority | MID |
| Approval type | Type approved and 1st time verified |
| Approved meteorological range [°C] [Max] | 130 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 11 yr |
| Cable insulation material | Halogen free |
| Connection size | G 1 |
| Connection types | Thread |
| Description | Energy meter for commercial applications |
| Diameter [mm] | 20 mm |
| Display type | LCD |
| Flow measuring principle | Ultrasonic |
| Integrated communication | 2 Pulse inputs/outputs |
| Interface module slot 1 | Radio OMS 868.95 MHz |
| IP protection class | IP 65 |
| Length [mm] | 130 mm |
| Log storage duration [Month] | 36 mo |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 5 °C |
| Media temporary overload temperature [°C] | 150 °C |
| Product group | Energy meters |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensors type | Pt 500 |
| Type | SonoMeter 30 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Heating |
| Approval authority | MID |
| Approval type | Type approved and 1st time verified |
| Approved meteorological range [°C] [Max] | 130 °C |
| Approved meteorological range [°C] [Min] | 5 °C |
| Battery lifetime [Years] | 11 yr |
| Cable insulation material | Halogen free |
| Connection size | G 1 |
| Connection types | Thread |
| Description | Energy meter for commercial applications |
| Diameter [mm] | 20 mm |
| Display type | LCD |
| Flow measuring principle | Ultrasonic |
| Integrated communication | 2 Pulse inputs/outputs |
| Interface module slot 1 | Radio OMS 868.95 MHz |
| IP protection class | IP 65 |
| Length [mm] | 130 mm |
| Log storage duration [Month] | 36 mo |
| Media | Heating system according to VDI 2035 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 5 °C |
| Media temporary overload temperature [°C] | 150 °C |
| Product group | Energy meters |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensors type | Pt 500 |
| Type | SonoMeter 30 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 187F3030
Основные характеристики
- Accuracy standard
- Class 2 to EN1434
- Ambient class
- E2/M1
- Ambient humidity [% RH] [Max]
- 93 % RH
- Ambient temperature [°C] [Max]
- 55 °C
- Ambient temperature [°C] [Min]
- 5 °C
- Application
- Heating
- Approval authority
- MID
- Approval type
- Type approved and 1st time verified
- Approved meteorological range [°C] [Max]
- 130 °C
- Approved meteorological range [°C] [Min]
- 5 °C
- Battery lifetime [Years]
- 11 yr
- Cable insulation material
- Halogen free
- Connection size
- G 1
- Connection types
- Thread
- Description
- Energy meter for commercial applications
- Diameter [mm]
- 20 mm
- Display type
- LCD
- EAN
- 5702428959940
- Flow measuring principle
- Ultrasonic
- Gross weight
- 0.93 kg
- Integrated communication
- 2 Pulse inputs/outputs
- Interface module slot 1
- Radio OMS 868.95 MHz
- IP protection class
- IP 65
- Length [mm]
- 130 mm
- Log storage duration [Month]
- 36 mo
- Media
- Heating system according to VDI 2035
- Media temperature [°C] [Max]
- 130 °C
- Media temperature [°C] [Min]
- 5 °C
- Media temporary overload temperature [°C]
- 150 °C
- Net weight
- 0.92 kg
- Product group
- Energy meters
- Supply voltage type
- battery 2 x AA-cell
- Temperature sensors type
- Pt 500
- TYPE
- SonoMeter 30
