Danfoss 187F3669 - Energy meters, SonoMeter 30, 25 mm, qp : 3.5, Cooling meter Antifreeze PG44, battery 2 x AA-cell, M-bus module
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка

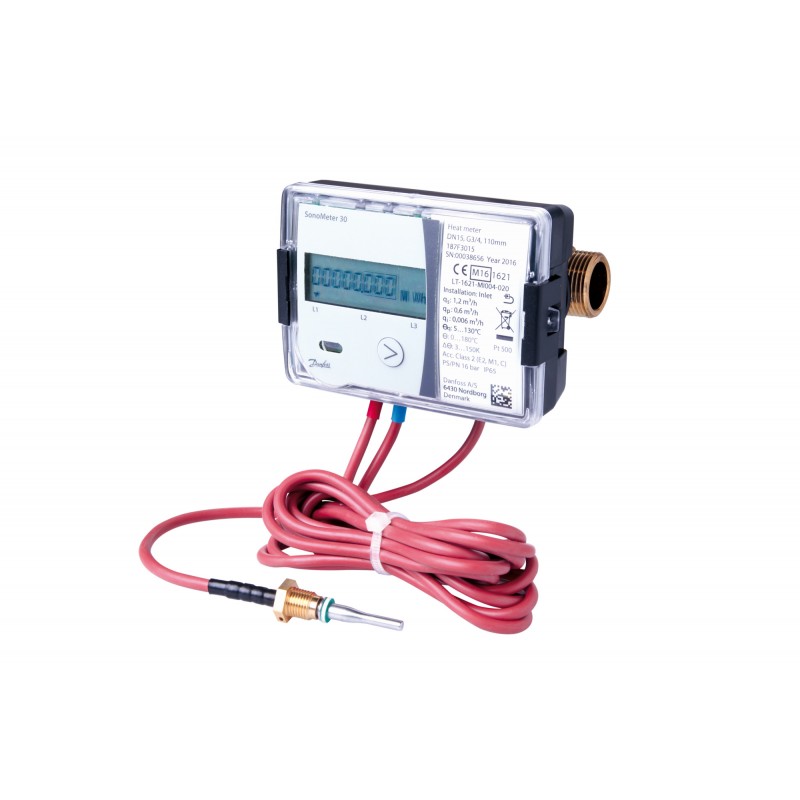

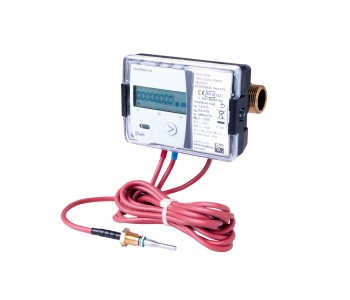

Danfoss 187F3669 - Energy meters, SonoMeter 30, 25 mm, qp [m³/h]: 3.5, Cooling meter Antifreeze PG44, battery 2 x AA-cell, M-bus module
Energy meter for commercial applications
Информация о продукте
| Gross weight | 3.6 kg |
| Net weight | 3.2 kg |
| EAN | 5702428532372 |
| Gross weight | 3.6 kg |
| Net weight | 3.2 kg |
| EAN | 5702428532372 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Cooling meter Antifreeze PG44 |
| Approval authority | MID |
| Approved meteorological range [°C] [Max] | 180 °C |
| Approved meteorological range [°C] [Min] | 0 °C |
| Battery lifetime [Years] | 11 yr |
| Cable length between calculator and flow sensor [m] | 1.2 m |
| Connection size | G 1 1/4 |
| Connection types | Thread |
| Description | Energy meter for commercial applications |
| Diameter [mm] | 25 mm |
| Display type | LCD |
| Dynamic range | 1:100 |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| Installation | Return |
| Integrated communication | 2 Pulse inputs/outputs |
| Interface module slot 1 | M-bus module |
| IP protection class | IP 65 |
| Kvs values [m³/h] | 17.5 m³/h |
| Length [mm] | 260 mm |
| Log storage duration [Month] | 36 mo |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 5 °C |
| Media temporary overload temperature [°C] | 150 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qp [m³/h] | 3.5 m³/h |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 2 m |
| Temperature sensors type | Pt 500 |
| Type | SonoMeter 30 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Cooling meter Antifreeze PG44 |
| Approval authority | MID |
| Approved meteorological range [°C] [Max] | 180 °C |
| Approved meteorological range [°C] [Min] | 0 °C |
| Battery lifetime [Years] | 11 yr |
| Cable length between calculator and flow sensor [m] | 1.2 m |
| Connection size | G 1 1/4 |
| Connection types | Thread |
| Description | Energy meter for commercial applications |
| Diameter [mm] | 25 mm |
| Display type | LCD |
| Dynamic range | 1:100 |
| Energy unit | kWh |
| Flow measuring principle | Ultrasonic |
| Installation | Return |
| Integrated communication | 2 Pulse inputs/outputs |
| Interface module slot 1 | M-bus module |
| IP protection class | IP 65 |
| Kvs values [m³/h] | 17.5 m³/h |
| Length [mm] | 260 mm |
| Log storage duration [Month] | 36 mo |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 5 °C |
| Media temporary overload temperature [°C] | 150 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| qp [m³/h] | 3.5 m³/h |
| Storage temperature [°C] [Max] | 60 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | battery 2 x AA-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensors cable length [m] | 2 m |
| Temperature sensors type | Pt 500 |
| Type | SonoMeter 30 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 187F3669
Основные характеристики
- Accuracy standard
- Class 2 to EN1434
- Ambient class
- E2/M1
- Ambient humidity [% RH] [Max]
- 93 % RH
- Ambient temperature [°C] [Max]
- 55 °C
- Ambient temperature [°C] [Min]
- 5 °C
- Application
- Cooling meter Antifreeze PG44
- Approval authority
- MID
- Approved meteorological range [°C] [Max]
- 180 °C
- Approved meteorological range [°C] [Min]
- 0 °C
- Battery lifetime [Years]
- 11 yr
- Cable length between calculator and flow sensor [m]
- 1.2 m
- Connection size
- G 1 1/4
- Connection types
- Thread
- Description
- Energy meter for commercial applications
- Diameter [mm]
- 25 mm
- Display type
- LCD
- Dynamic range
- 1:100
- EAN
- 5702428532372
- Energy unit
- kWh
- Flow measuring principle
- Ultrasonic
- Gross weight
- 3.6 kg
- Installation
- Return
- Integrated communication
- 2 Pulse inputs/outputs
- Interface module slot 1
- M-bus module
- IP protection class
- IP 65
- Kvs values [m³/h]
- 17.5 m³/h
- Length [mm]
- 260 mm
- Log storage duration [Month]
- 36 mo
- Media temperature [°C] [Max]
- 130 °C
- Media temperature [°C] [Min]
- 5 °C
- Media temporary overload temperature [°C]
- 150 °C
- Net weight
- 3.2 kg
- Pressure nominal [bar]
- 16 bar
- Product group
- Energy meters
- qp [m³/h]
- 3.5 m³/h
- Storage temperature [°C] [Max]
- 60 °C
- Storage temperature [°C] [Min]
- -25 °C
- Supply voltage type
- battery 2 x AA-cell
- Supply voltage [V] DC
- 3.6 V
- Temperature sensor diameter [mm]
- 5.2 mm
- Temperature sensors cable length [m]
- 2 m
- Temperature sensors type
- Pt 500
- TYPE
- SonoMeter 30
