Артикул: 187F3703
В наличии

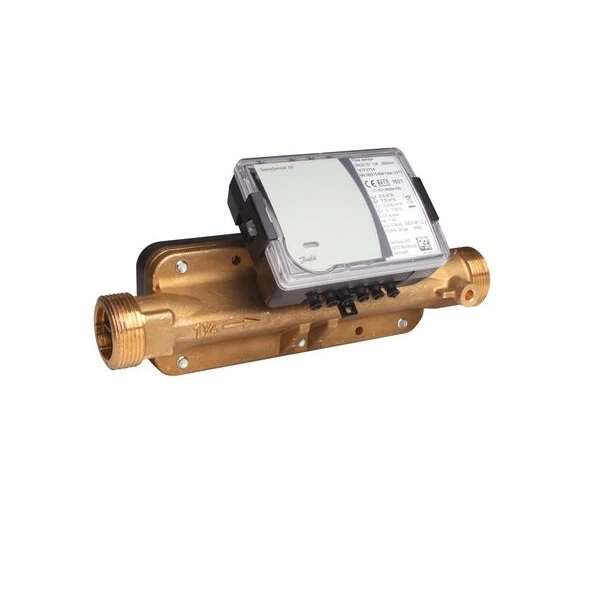

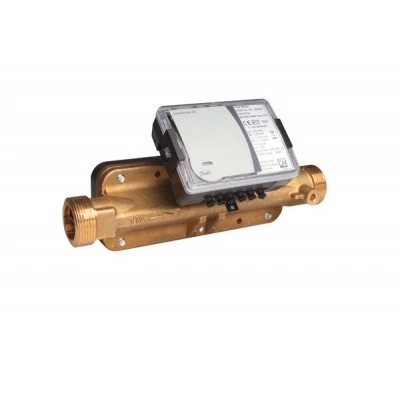

Danfoss 187F3703 - Energy meters, SonoSensor 30, 20 mm, qp : 2.5, Heating, Battery 1 A-cell, 2 pulse output
Цена по запросу Стоимость зависит от выбранного способа оплаты и количества товара.
Не отвечаем 5 минут — скидка на весь заказ!
Нужна скидка? Звони — сделаем лучшее предложение
Работаем по всей России
Возможны самовывоз и доставка по всей территории России
Надежность
Профессиональная поддержка
Danfoss 187F3703 - Energy meters, SonoSensor 30, 20 mm, qp [m³/h]: 2.5, Heating, Battery 1 A-cell, 2 pulse output
Flow sensor for commercial and residential applications
Информация о продукте
| Gross weight | 1.02 kg |
| Net weight | 1 kg |
| EAN | 5702428002417 |
| Gross weight | 1.02 kg |
| Net weight | 1 kg |
| EAN | 5702428002417 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Heating |
| Approval authority | MID |
| Battery lifetime [Years] | 12 yr |
| Cable length between calculator and flow sensor [m] | 1.2 m |
| Connection size | G 1 |
| Connection types | Thread |
| Description | Flow sensor for commercial and residential applications |
| Diameter [mm] | 20 mm |
| Dynamic range | 1:100 |
| Flow measuring principle | Ultrasonic |
| Integrated communication | 2 pulse output |
| IP protection class | IP 65 |
| Length [mm] | 190 mm |
| Media | Water quality with pH 7 to 9.5 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 5 °C |
| Media temporary overload temperature [°C] | 150 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| Pulse value volume [l/pulse] | 1 l/pulse |
| qp [m³/h] | 2.5 m³/h |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | Battery 1 A-cell |
| Type | SonoSensor 30 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % RH |
| Ambient temperature [°C] [Max] | 55 °C |
| Ambient temperature [°C] [Min] | 5 °C |
| Application | Heating |
| Approval authority | MID |
| Battery lifetime [Years] | 12 yr |
| Cable length between calculator and flow sensor [m] | 1.2 m |
| Connection size | G 1 |
| Connection types | Thread |
| Description | Flow sensor for commercial and residential applications |
| Diameter [mm] | 20 mm |
| Dynamic range | 1:100 |
| Flow measuring principle | Ultrasonic |
| Integrated communication | 2 pulse output |
| IP protection class | IP 65 |
| Length [mm] | 190 mm |
| Media | Water quality with pH 7 to 9.5 |
| Media temperature [°C] [Max] | 130 °C |
| Media temperature [°C] [Min] | 5 °C |
| Media temporary overload temperature [°C] | 150 °C |
| Pressure nominal [bar] | 16 bar |
| Product group | Energy meters |
| Pulse value volume [l/pulse] | 1 l/pulse |
| qp [m³/h] | 2.5 m³/h |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | Battery 1 A-cell |
| Type | SonoSensor 30 |
Сайт продавца продукции Danfoss. Получить дополнительную информацию о стоимости, описании, спецификации и характеристиках вы можете по телефону +7 495 266-67-99 или электронной почте sale@df-russia.ru.
Технические характеристики 187F3703
Основные характеристики
- Accuracy standard
- Class 2 to EN1434
- Ambient class
- E2/M1
- Ambient humidity [% RH] [Max]
- 93 % RH
- Ambient temperature [°C] [Max]
- 55 °C
- Ambient temperature [°C] [Min]
- 5 °C
- Application
- Heating
- Approval authority
- MID
- Battery lifetime [Years]
- 12 yr
- Cable length between calculator and flow sensor [m]
- 1.2 m
- Connection size
- G 1
- Connection types
- Thread
- Description
- Flow sensor for commercial and residential applications
- Diameter [mm]
- 20 mm
- Dynamic range
- 1:100
- EAN
- 5702428002417
- Flow measuring principle
- Ultrasonic
- Gross weight
- 1.02 kg
- Integrated communication
- 2 pulse output
- IP protection class
- IP 65
- Length [mm]
- 190 mm
- Media
- Water quality with pH 7 to 9.5
- Media temperature [°C] [Max]
- 130 °C
- Media temperature [°C] [Min]
- 5 °C
- Media temporary overload temperature [°C]
- 150 °C
- Net weight
- 1 kg
- Pressure nominal [bar]
- 16 bar
- Product group
- Energy meters
- Pulse value volume [l/pulse]
- 1 l/pulse
- qp [m³/h]
- 2.5 m³/h
- Supply voltage type
- Battery 1 A-cell
- Supply voltage [V] DC
- 3.6 V
- TYPE
- SonoSensor 30
